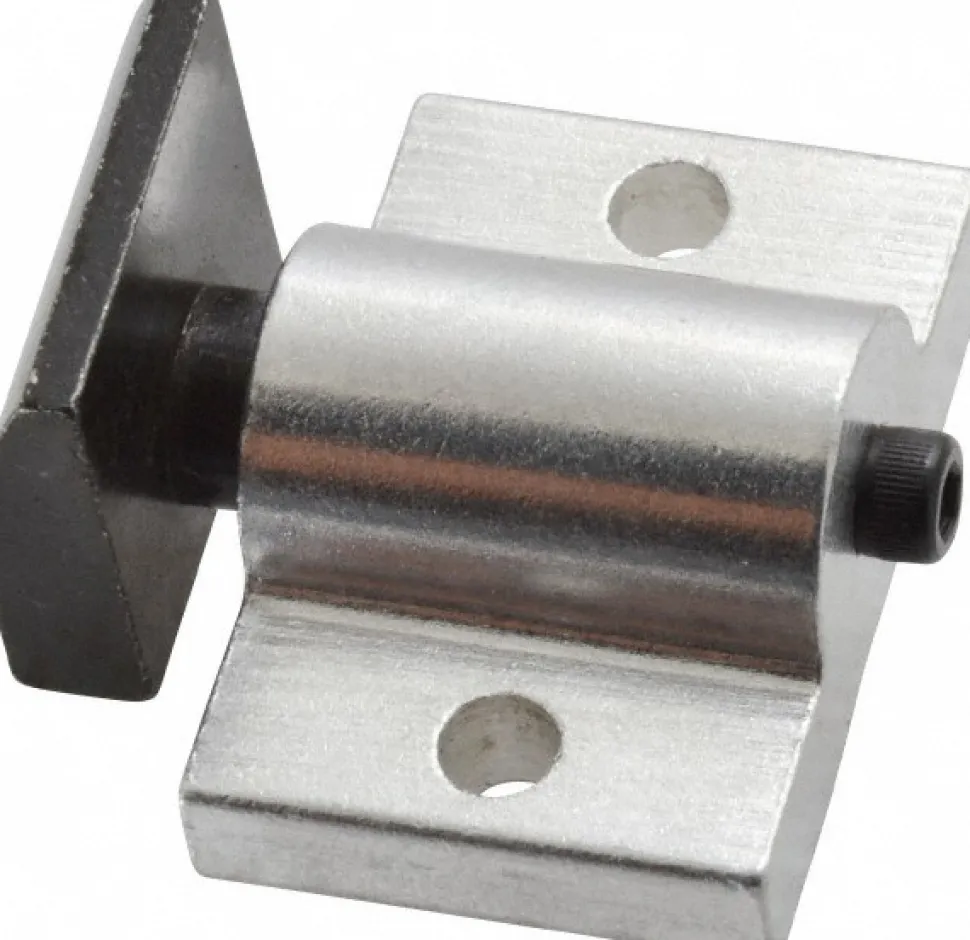

1-1/2″ Body Width x 1″ Body Len, 3/16″ Stroke Len, 1-1/8″ Btw Mt Hole Ctrs, 0.938″ Btw Mt Hole & Edge, Tangless Square Spring Locating Stop
6,99 $
Specifications
| Stop Head Width (Inch): 0.875 in | Stop Head Width (Decimal Inch): 0.8750 |
| Stroke Length: 0.19 in | Stroke Length (Inch): 3/16 |
| Body Length: 1 in | Stop Head Height: 0.875 in |
| Base Width (Decimal Inch): 1.5 in; 1.5000 | Stop Head Thickness: 0.25 in |
| Body Length (Decimal Inch): 1.0000; 1 in | Body Width: 1.5 in |
| Stop Head Height (Inch): 7/8 | Distance Between Mount Hole Centers (Inch): 1-1/8 |
| Distance Between Mount Hole Centers (Decimal Inch): 1.1250 | Tang Profile: Tangless |
| Initial End Force: 2 lb | Final End Force: 25.9 lb |
| Mounting Slot Length: 0.1875 in | Mounting Slot Width: 0.203 in |
| Middle End Force (kg): 14.00 | Stop Head Thickness (Decimal Inch): 0.2500 |
| Body Width (Decimal Inch): 1.5000 | Distance Between Mount Hole & Edge (Decimal Inch): 0.9380 |
| Mounting Slot Length (Inch): 3/16 | UNSPSC Code: 27112132 |
| Mounting Slot Width (Decimal Inch): 0.2030; 0.203 in | Base Thickness (Inch): 1/4; 0.2500 in |
| Body Material: Aluminum | Country of Origin: UNITED STATES |
| Stop Head Width (Inch): 0.875 in | |
| Stop Head Width (Decimal Inch): 0.8750 | |
| Stroke Length: 0.19 in | |
| Stroke Length (Inch): 3/16 | |
| Body Length: 1 in | |
| Stop Head Height: 0.875 in | |
| Base Width (Decimal Inch): 1.5 in; 1.5000 | |
| Stop Head Thickness: 0.25 in | |
| Body Length (Decimal Inch): 1.0000; 1 in | |
| Body Width: 1.5 in | |
| Stop Head Height (Inch): 7/8 | |
| Distance Between Mount Hole Centers (Inch): 1-1/8 | |
| Distance Between Mount Hole Centers (Decimal Inch): 1.1250 | |
| Tang Profile: Tangless | |
| Initial End Force: 2 lb | |
| Final End Force: 25.9 lb | |
| Mounting Slot Length: 0.1875 in | |
| Mounting Slot Width: 0.203 in | |
| Middle End Force (kg): 14.00 | |
| Stop Head Thickness (Decimal Inch): 0.2500 | |
| Body Width (Decimal Inch): 1.5000 | |
| Distance Between Mount Hole & Edge (Decimal Inch): 0.9380 | |
| Mounting Slot Length (Inch): 3/16 | |
| UNSPSC Code: 27112132 | |
| Mounting Slot Width (Decimal Inch): 0.2030; 0.203 in | |
| Base Thickness (Inch): 1/4; 0.2500 in | |
| Body Material: Aluminum | |
| Country of Origin: UNITED STATES |
| MSC# | 90224080 |
| Mfr# | SS90B |
| Big Book# | 1376 |
