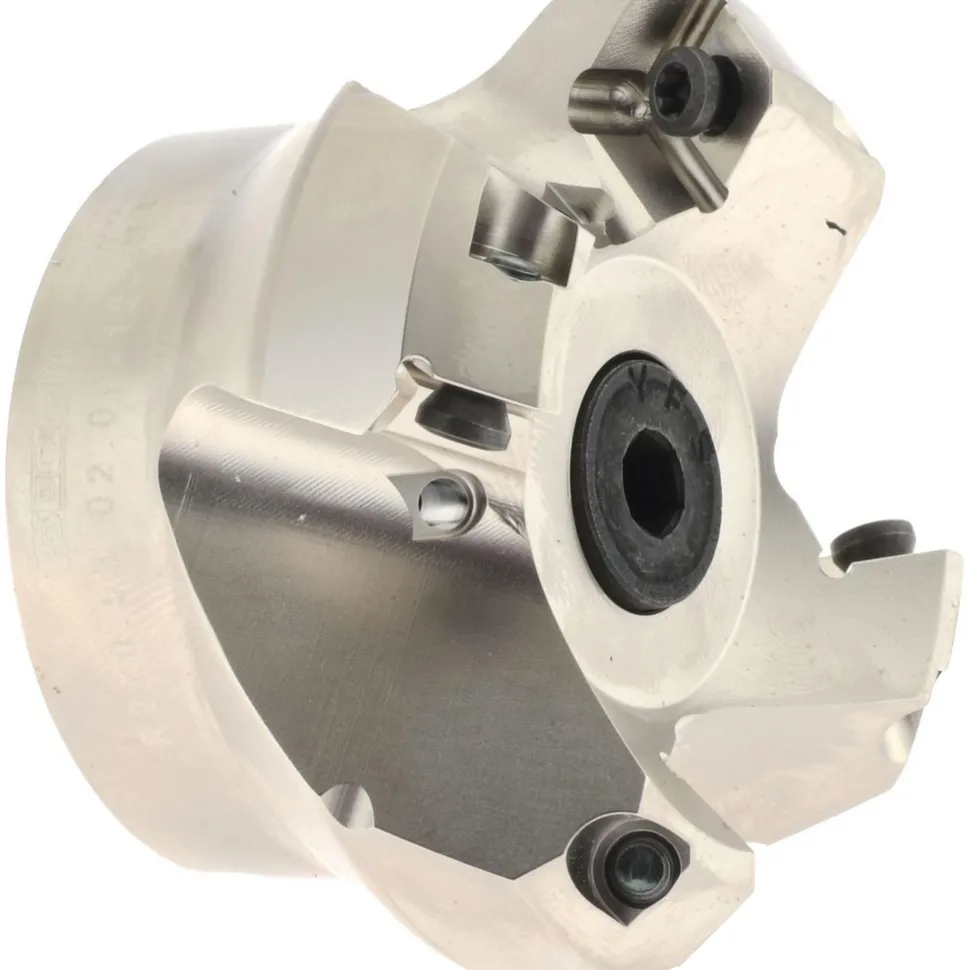

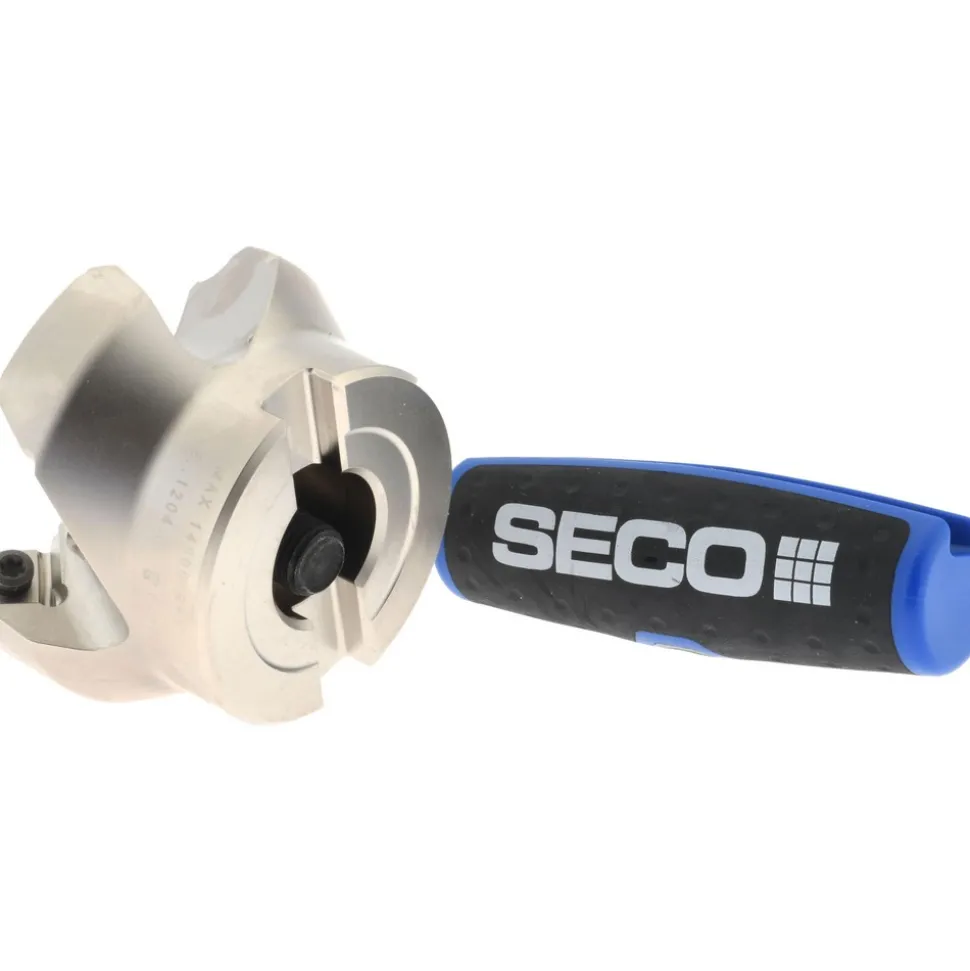

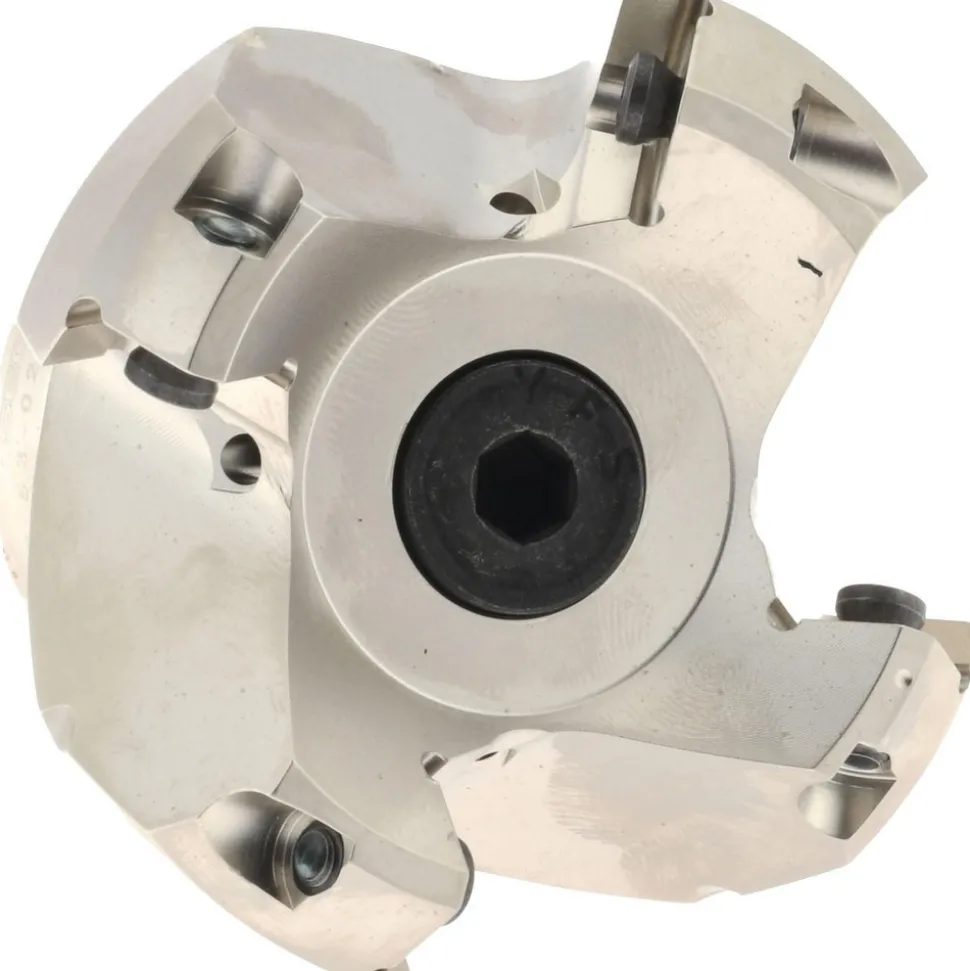

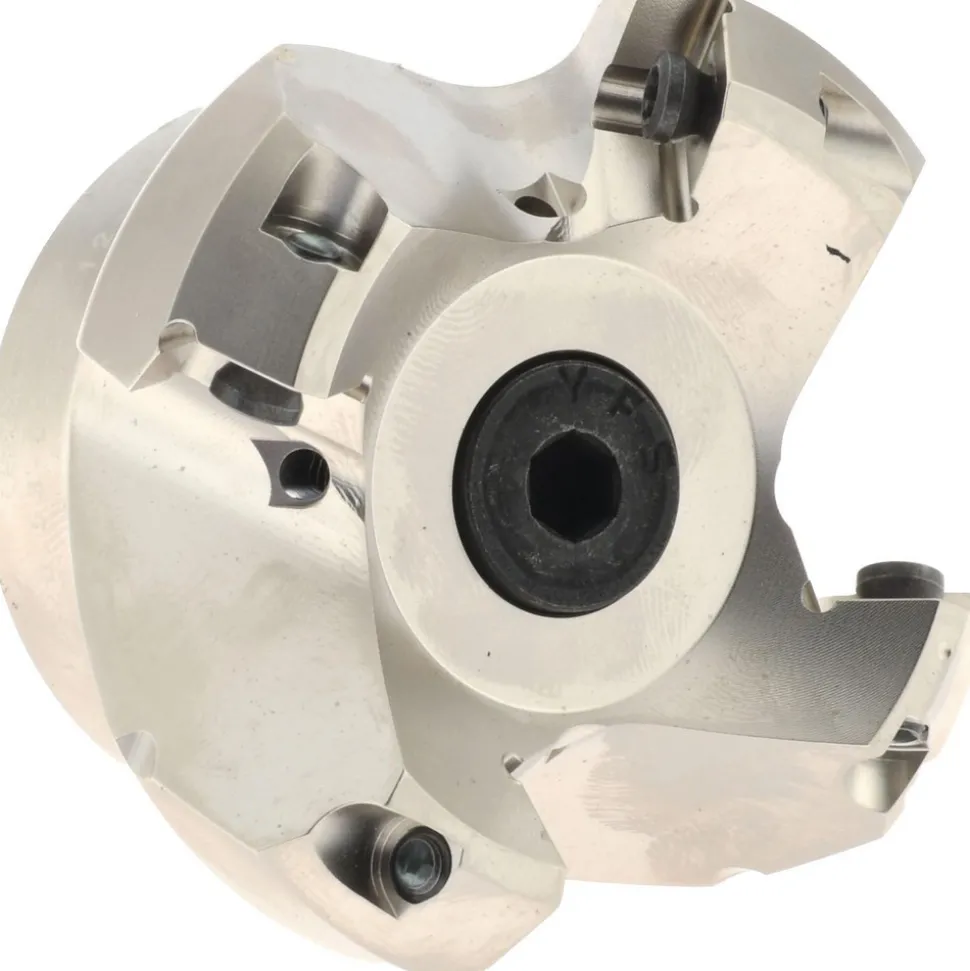

1.97″ Cut Dia, 3/4″ Arbor Hole, 0.236″ Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill
128,89 $
Specifications
| Minimum Cutting Diameter (Decimal Inch): 1.9700 | Maximum Cutting Diameter (Decimal Inch): 2.4400 |
| Maximum Depth of Cut (Decimal Inch): 0.2360 | Arbor Hole Diameter (Decimal Inch): 0.7500 |
| Arbor Hole Diameter (Inch): 3/4 | Compatible Insert Size Code: SE X 1204 |
| Cutter Style: R220.53 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw | Rake: Negative (Radial); Positive (Axial) |
| Series: R220.53 | Hub Diameter (Decimal Inch): 1.8500 |
| Keyway Width (mm): 8.20 | Overall Height (Decimal Inch): 1.5700 |
| Maximum Body Diameter (Decimal Inch): 2.4400 | Pitch Type: Normal |
| Maximum RPM: 14800 | Tool Application: Facing |
| Number Of Cutter Inserts: 4 | Coolant Through: Yes |
| Number Of Flutes: 4 | UNSPSC Code: 23291600 |
| Country of Origin: India | |
| Minimum Cutting Diameter (Decimal Inch): 1.9700 | |
| Maximum Cutting Diameter (Decimal Inch): 2.4400 | |
| Maximum Depth of Cut (Decimal Inch): 0.2360 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Compatible Insert Size Code: SE X 1204 | |
| Cutter Style: R220.53 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Rake: Negative (Radial); Positive (Axial) | |
| Series: R220.53 | |
| Hub Diameter (Decimal Inch): 1.8500 | |
| Keyway Width (mm): 8.20 | |
| Overall Height (Decimal Inch): 1.5700 | |
| Maximum Body Diameter (Decimal Inch): 2.4400 | |
| Pitch Type: Normal | |
| Maximum RPM: 14800 | |
| Tool Application: Facing | |
| Number Of Cutter Inserts: 4 | |
| Coolant Through: Yes | |
| Number Of Flutes: 4 | |
| UNSPSC Code: 23291600 | |
| Country of Origin: India |
| MSC# | 08796641 |
| Mfr# | 02422140 |
| Big Book# | 674 |
