Sale!

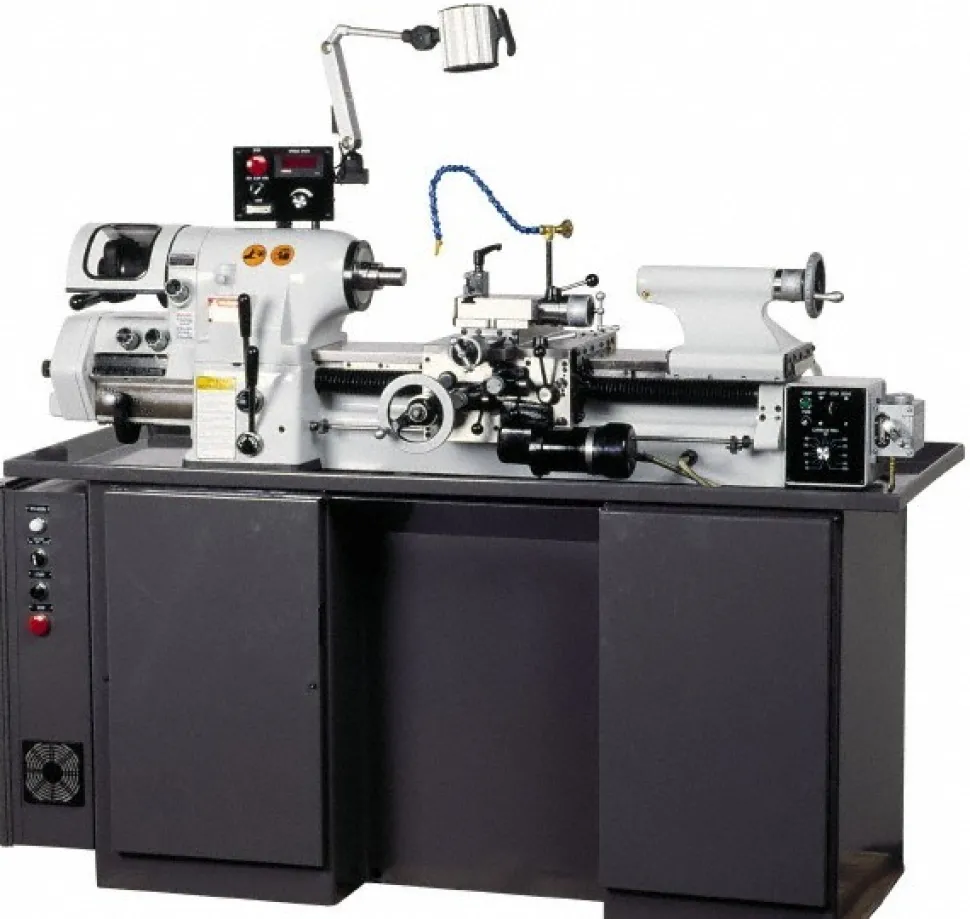

11″ x 18″ Toolroom Lathe: Frequency, 3 hp, 220 V
Original price was: 46 763,00 $.128,99 $Current price is: 128,99 $.
Specifications
| Lathe Type: Toolroom | Phase: Three |
| Voltage: 220V | Collet Closer Included: Yes |
| Swing (Inch): 11 | Distance Between Centers (Inch): 18 |
| Spindle Speed Control: Frequency | Spindle Bore Diameter (Inch): 1-1/4 |
| Cross Slide Travel (Inch): 6 | Cross Slide Travel (mm): 152.40 |
| Maximum Metric Pitch (Decimal Inch): 0.3937 | Overall Length (mm): 1854.20 |
| Maximum Spindle Speed (RPM): 4000 | Overall Depth (Inch): 30 |
| Overall Depth (Decimal Inch): 30.0000 | Overall Depth (Mm): 762.00 |
| Overall Height (mm): 1701.80 | Overall Length (Inch): 73 |
| Overall Length (Decimal Inch): 73.0000 | Minimum Metric Pitch (Decimal Inch): 0.0079 |
| Cross Slide Travel (Decimal Inch): 6.0000 | Tailstock Travel (mm): 95.00 |
| Tailstock Travel (Decimal Inch): 3.7402 | Overall Height (Decimal Inch): 67.0000 |
| Top Slide Travel (Decimal Inch): 3.0000 | Top Slide Travel (mm): 76.20 |
| Maximum Threads Per Inch: 120 | Minimum Threads Per Inch: 4 |
| Swing Over Cross Slide (mm): 152.40 | Swing Over Cross Slide (Decimal Inch): 6.0000 |
| Swing Over Cross Slide (Inch): 6 | Swing Over Gap (Inch): 9 |
| Swing Over Gap (Decimal Inch): 9.0000 | Swing Over Gap: 228.6 mm; 9.0 in |
| Country of Origin: Taiwan | |
| Lathe Type: Toolroom | |
| Phase: Three | |
| Voltage: 220V | |
| Collet Closer Included: Yes | |
| Swing (Inch): 11 | |
| Distance Between Centers (Inch): 18 | |
| Spindle Speed Control: Frequency | |
| Spindle Bore Diameter (Inch): 1-1/4 | |
| Cross Slide Travel (Inch): 6 | |
| Cross Slide Travel (mm): 152.40 | |
| Maximum Metric Pitch (Decimal Inch): 0.3937 | |
| Overall Length (mm): 1854.20 | |
| Maximum Spindle Speed (RPM): 4000 | |
| Overall Depth (Inch): 30 | |
| Overall Depth (Decimal Inch): 30.0000 | |
| Overall Depth (Mm): 762.00 | |
| Overall Height (mm): 1701.80 | |
| Overall Length (Inch): 73 | |
| Overall Length (Decimal Inch): 73.0000 | |
| Minimum Metric Pitch (Decimal Inch): 0.0079 | |
| Cross Slide Travel (Decimal Inch): 6.0000 | |
| Tailstock Travel (mm): 95.00 | |
| Tailstock Travel (Decimal Inch): 3.7402 | |
| Overall Height (Decimal Inch): 67.0000 | |
| Top Slide Travel (Decimal Inch): 3.0000 | |
| Top Slide Travel (mm): 76.20 | |
| Maximum Threads Per Inch: 120 | |
| Minimum Threads Per Inch: 4 | |
| Swing Over Cross Slide (mm): 152.40 | |
| Swing Over Cross Slide (Decimal Inch): 6.0000 | |
| Swing Over Cross Slide (Inch): 6 | |
| Swing Over Gap (Inch): 9 | |
| Swing Over Gap (Decimal Inch): 9.0000 | |
| Swing Over Gap: 228.6 mm; 9.0 in | |
| Country of Origin: Taiwan |
| MSC# | 89975486 |
| Mfr# | CTL-618EVS |
| Big Book# | 1537 |
