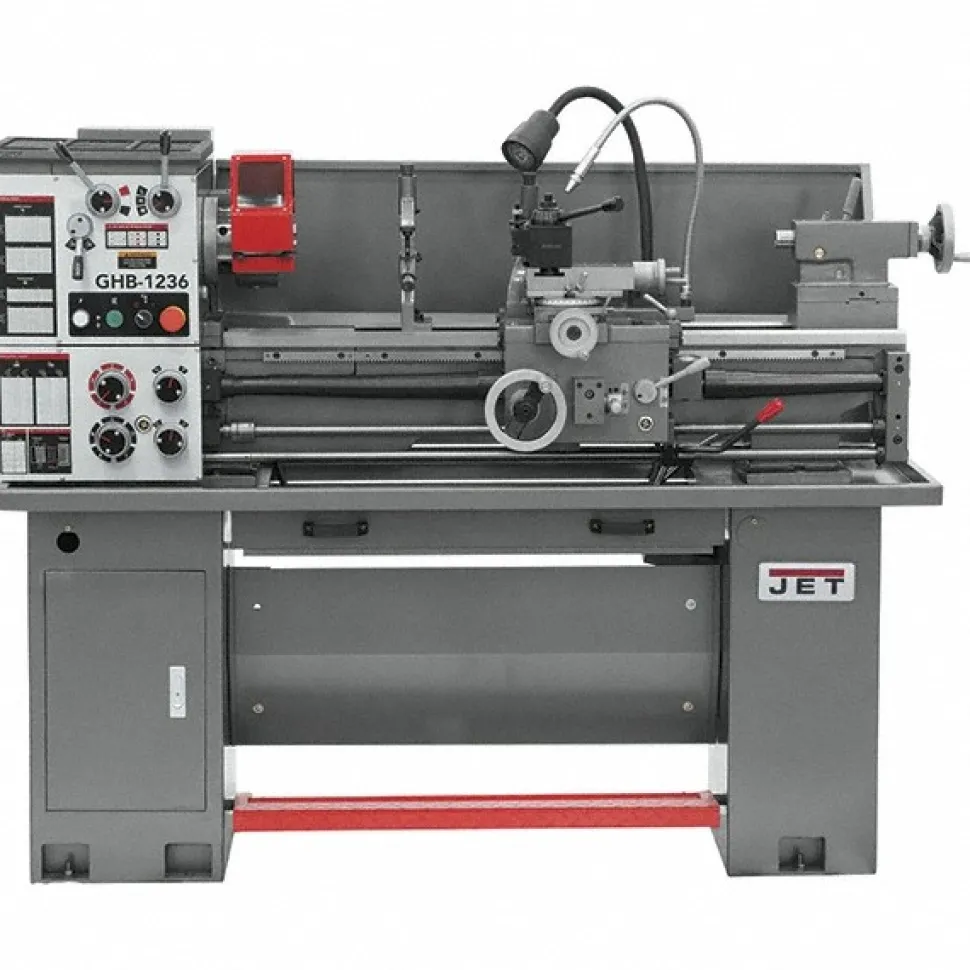

12″ x 33″ Bench Lathe: Geared Head, 2 hp, 230 V
134,89 $
Specifications
| Lathe Type: Toolroom | Phase: Single |
| Voltage: 230V | DRO Included: Yes |
| Swing (Inch): 12 | Bed Width (Inch): 7.1200 |
| Distance Between Centers (Inch): 33 | Spindle Speed Control: Geared Head |
| Spindle Bore Diameter (Inch): 1-9/16 | Cross Slide Travel (Inch): 5-1/2 |
| Gap Length (Decimal Inch): 9.3750 | Maximum Metric Pitch (Decimal Inch): 7.0000 |
| Compound Travel: 3 | Minimum Spindle Speed: 75 |
| Spindle Nose Designation: D1-4 | Maximum Spindle Speed (RPM): 1400 |
| Overall Depth (Inch): 30 | Overall Depth (Decimal Inch): 30.0000 |
| Overall Length (Inch): 66 | Overall Length (Decimal Inch): 66.0000 |
| Minimum Metric Pitch (Decimal Inch): 0.4000 | Number of Inch Threads: 36 |
| Spindle Taper Size: 5MT | Tailstock Taper Size: 3MT |
| Tailstock Travel (Decimal Inch): 3.5000 | Number Of Spindle Speeds: 9 |
| Overall Height (Decimal Inch): 58.0000 | Warranty: 2 Year |
| Maximum Threads Per Inch: 60 | Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0019 |
| Minimum Threads Per Inch: 4 | Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0472 |
| Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.001400 | Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0116 |
| Swing Over Cross Slide (Decimal Inch): 7.5000 | Swing Over Cross Slide (Inch): 7-1/2 |
| Swing Over Gap (Inch): 18 | Swing Over Gap (Decimal Inch): 18.0000 |
| Swing Over Gap: 18 in | Country of Origin: China |
| Lathe Type: Toolroom | |
| Phase: Single | |
| Voltage: 230V | |
| DRO Included: Yes | |
| Swing (Inch): 12 | |
| Bed Width (Inch): 7.1200 | |
| Distance Between Centers (Inch): 33 | |
| Spindle Speed Control: Geared Head | |
| Spindle Bore Diameter (Inch): 1-9/16 | |
| Cross Slide Travel (Inch): 5-1/2 | |
| Gap Length (Decimal Inch): 9.3750 | |
| Maximum Metric Pitch (Decimal Inch): 7.0000 | |
| Compound Travel: 3 | |
| Minimum Spindle Speed: 75 | |
| Spindle Nose Designation: D1-4 | |
| Maximum Spindle Speed (RPM): 1400 | |
| Overall Depth (Inch): 30 | |
| Overall Depth (Decimal Inch): 30.0000 | |
| Overall Length (Inch): 66 | |
| Overall Length (Decimal Inch): 66.0000 | |
| Minimum Metric Pitch (Decimal Inch): 0.4000 | |
| Number of Inch Threads: 36 | |
| Spindle Taper Size: 5MT | |
| Tailstock Taper Size: 3MT | |
| Tailstock Travel (Decimal Inch): 3.5000 | |
| Number Of Spindle Speeds: 9 | |
| Overall Height (Decimal Inch): 58.0000 | |
| Warranty: 2 Year | |
| Maximum Threads Per Inch: 60 | |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0019 | |
| Minimum Threads Per Inch: 4 | |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0472 | |
| Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.001400 | |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0116 | |
| Swing Over Cross Slide (Decimal Inch): 7.5000 | |
| Swing Over Cross Slide (Inch): 7-1/2 | |
| Swing Over Gap (Inch): 18 | |
| Swing Over Gap (Decimal Inch): 18.0000 | |
| Swing Over Gap: 18 in | |
| Country of Origin: China |
| MSC# | 38677571 |
| Mfr# | 323231 |
| Big Book# | 1533 |
