Sale!

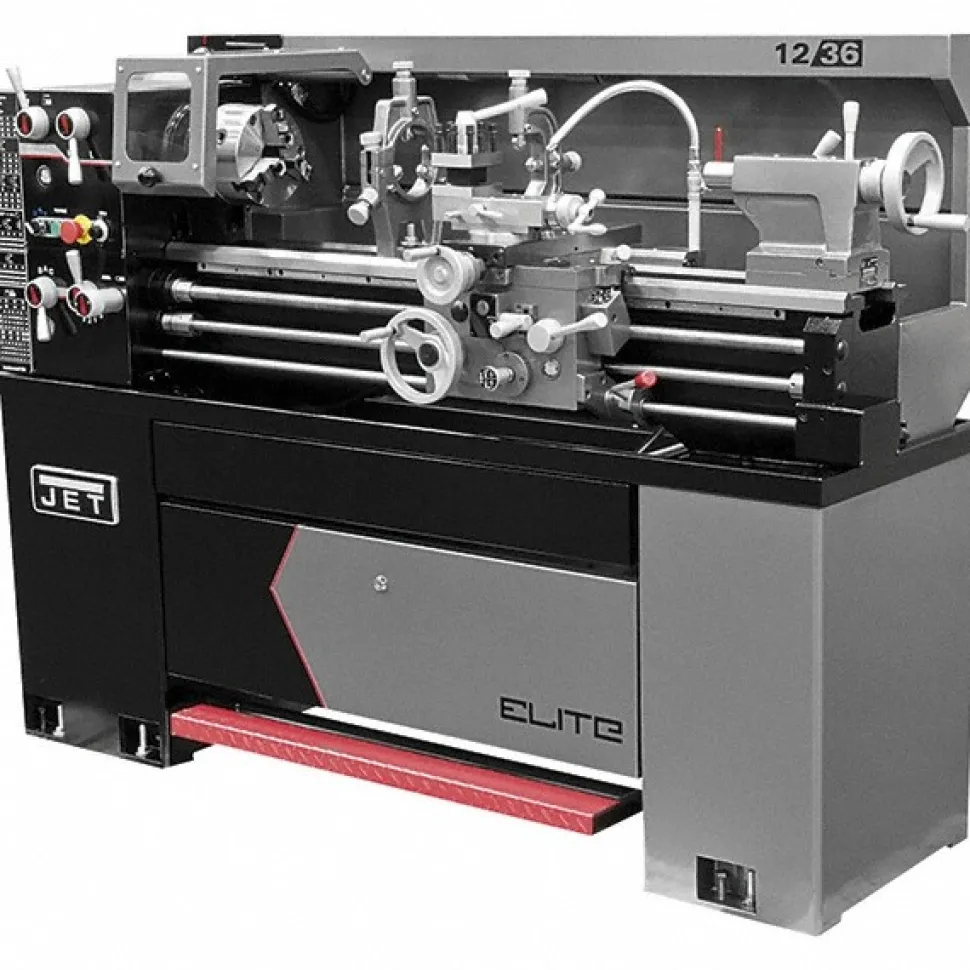

12″ x 36″ Engine Lathe: Frequency, 2 hp, 230 V
Original price was: 27 683,00 $.138,89 $Current price is: 138,89 $.
Specifications
| Lathe Type: Toolroom | Phase: Single; Three |
| Voltage: 230V | DRO Included: Yes |
| Taper Attachment Included: Yes | Collet Closer Included: Yes |
| Swing (Inch): 12 | Bed Width (Inch): 7.5000 |
| Distance Between Centers (Inch): 36 | Spindle Speed Control: Frequency |
| Spindle Bore Diameter (Inch): 1-9/16 | Cross Slide Travel (Inch): 6-3/4 |
| Gap Length (Decimal Inch): 9.5000 | Bed Width (Inch): 7-1/2 |
| Maximum Metric Pitch (Decimal Inch): 12.0000 | Certification: UL Listed; CSA Certified |
| Spindle Nose Designation: D1-4 | Overall Depth (Inch): 30 |
| Overall Depth (Decimal Inch): 30.0000 | Overall Height (Inch): 60 |
| Overall Length (Inch): 71 | Overall Length (Decimal Inch): 71.0000 |
| Minimum Metric Pitch (Decimal Inch): 33.0000 | Cross Slide Travel (Decimal Inch): 6.7500 |
| Number of Inch Threads: 34 | Number of Metric Threads: 33 |
| Tailstock Travel (Decimal Inch): 4.0000 | Overall Height (Decimal Inch): 60.0000 |
| Warranty: 3 Year | Maximum Threads Per Inch: 56 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0016 | Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0460 |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0150 | Swing Over Cross Slide (Decimal Inch): 7.3125 |
| Swing Over Gap (Inch): 17-1/2 | Swing Over Gap (Decimal Inch): 17.5000 |
| Swing Over Gap: 17.5 in | Country of Origin: Taiwan |
| Lathe Type: Toolroom | |
| Phase: Single; Three | |
| Voltage: 230V | |
| DRO Included: Yes | |
| Taper Attachment Included: Yes | |
| Collet Closer Included: Yes | |
| Swing (Inch): 12 | |
| Bed Width (Inch): 7.5000 | |
| Distance Between Centers (Inch): 36 | |
| Spindle Speed Control: Frequency | |
| Spindle Bore Diameter (Inch): 1-9/16 | |
| Cross Slide Travel (Inch): 6-3/4 | |
| Gap Length (Decimal Inch): 9.5000 | |
| Bed Width (Inch): 7-1/2 | |
| Maximum Metric Pitch (Decimal Inch): 12.0000 | |
| Certification: UL Listed; CSA Certified | |
| Spindle Nose Designation: D1-4 | |
| Overall Depth (Inch): 30 | |
| Overall Depth (Decimal Inch): 30.0000 | |
| Overall Height (Inch): 60 | |
| Overall Length (Inch): 71 | |
| Overall Length (Decimal Inch): 71.0000 | |
| Minimum Metric Pitch (Decimal Inch): 33.0000 | |
| Cross Slide Travel (Decimal Inch): 6.7500 | |
| Number of Inch Threads: 34 | |
| Number of Metric Threads: 33 | |
| Tailstock Travel (Decimal Inch): 4.0000 | |
| Overall Height (Decimal Inch): 60.0000 | |
| Warranty: 3 Year | |
| Maximum Threads Per Inch: 56 | |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0016 | |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0460 | |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0150 | |
| Swing Over Cross Slide (Decimal Inch): 7.3125 | |
| Swing Over Gap (Inch): 17-1/2 | |
| Swing Over Gap (Decimal Inch): 17.5000 | |
| Swing Over Gap: 17.5 in | |
| Country of Origin: Taiwan |
| MSC# | 66264540 |
| Mfr# | 892306 |
