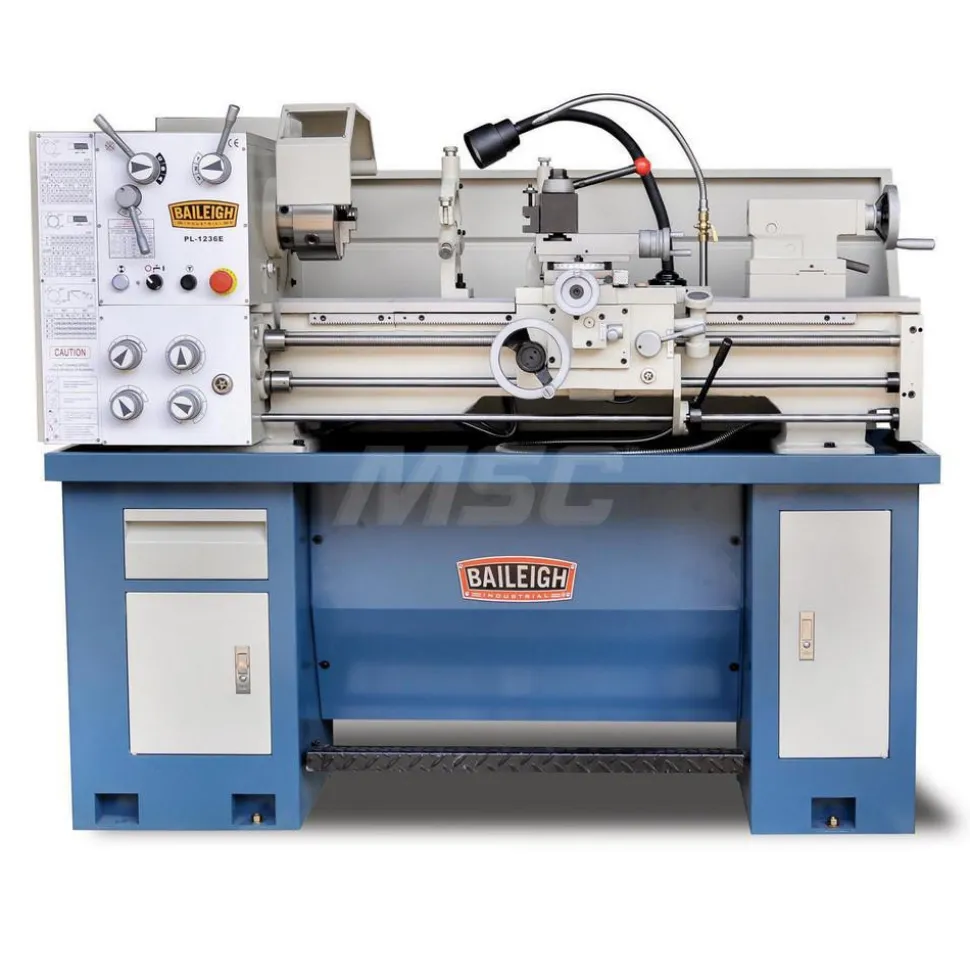

12″ x 36″ Toolroom Lathe: Variable, 1.50 hp, 220 V

Name: 12" x 36" Toolroom Lathe: Variable, 1.50 hp, 220 V - Sid Tool
SKU: SKUonzqxP0FOZ
Price: 138.89 USD
Availability: InStock

138,89 $

SKU: SKUonzqxP0FOZ Categories: Lathes, Machinery, Shop All Products Tag: Baileigh Brand: Baileigh

Specifications

Lathe Type: Toolroom	Phase: Single
Voltage: 220V	Swing (Inch): 12
Distance Between Centers (Inch): 36	Spindle Speed Control: Variable
Spindle Bore Diameter (Inch): 1-1/2	Gap Length (Decimal Inch): 6.0000
Bed Width (Inch): 7-1/8	Minimum Spindle Speed: 70
Spindle Nose Designation: D1-4	Maximum Spindle Speed (RPM): 1400
Cross Slide Travel (Decimal Inch): 5.3120	Maximum Threads Per Inch: 56
Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0020	Minimum Threads Per Inch: 4
Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0548	Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.007000
Swing Over Cross Slide (Inch): 7-5/8	Swing Over Gap (Inch): 17
Swing Over Gap (Decimal Inch): 17.0000	Country of Origin: China
Lathe Type: Toolroom
Phase: Single
Voltage: 220V
Swing (Inch): 12
Distance Between Centers (Inch): 36
Spindle Speed Control: Variable
Spindle Bore Diameter (Inch): 1-1/2
Gap Length (Decimal Inch): 6.0000
Bed Width (Inch): 7-1/8
Minimum Spindle Speed: 70
Spindle Nose Designation: D1-4
Maximum Spindle Speed (RPM): 1400
Cross Slide Travel (Decimal Inch): 5.3120
Maximum Threads Per Inch: 56
Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0020
Minimum Threads Per Inch: 4
Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0548
Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.007000
Swing Over Cross Slide (Inch): 7-5/8
Swing Over Gap (Inch): 17
Swing Over Gap (Decimal Inch): 17.0000
Country of Origin: China
