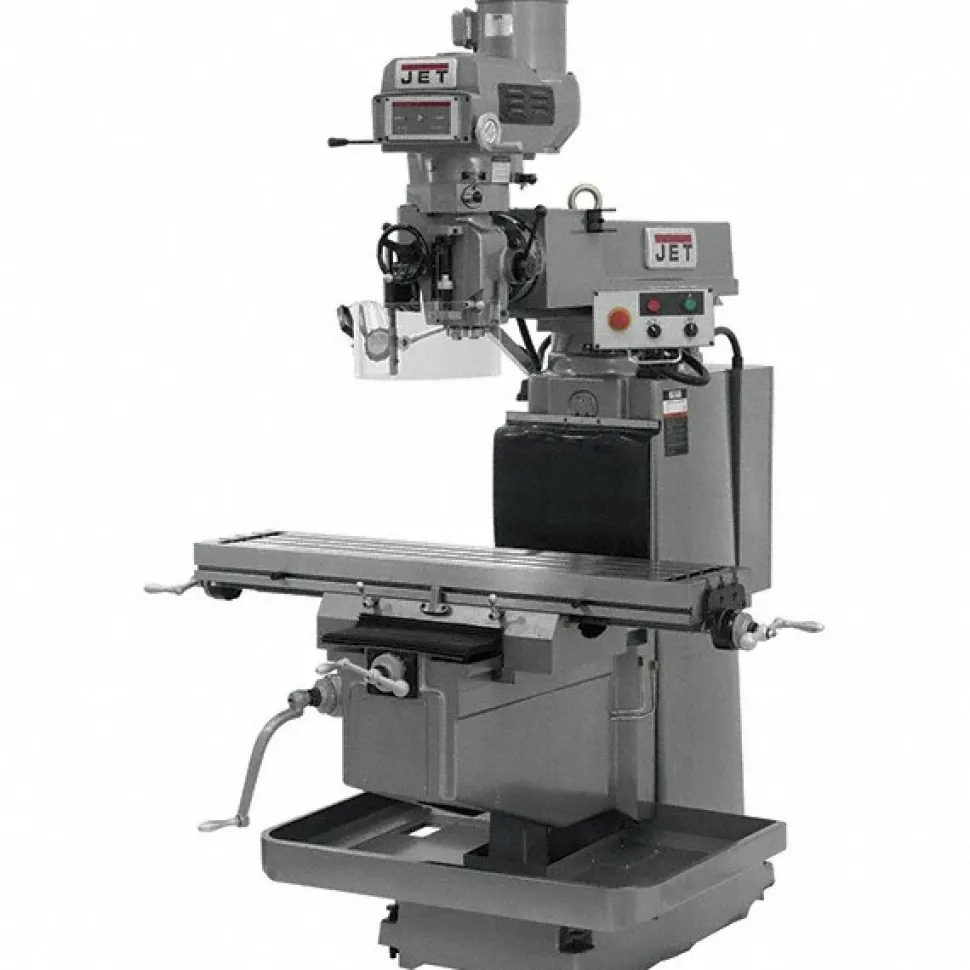

12″ x 54″ CNC Milling Machine: Acu-Rite G-2, 230V & 460V
134,89 $
Specifications
| CNC Controller Brand: Acu-Rite | CNC Controller Model: G-2 |
| Spindle Speed Control: Variable Speed Pulley | Table Length (Inch): 54 |
| Table Width (Inch): 12 | Phase: Three |
| Longitudinal Travel (Inch): 28-1/4 | Cross Travel (Decimal Inch): 13.3333 |
| Knee Travel (Inch): 19-1/4 | Maximum Spindle Speed (RPM): 3800.00 |
| Spindle Travel Length (Decimal Inch): 5.0000 | Spindle Travel Length (Inch): 5 |
| Spindle Taper Size: NT40 | Quill Diameter (Decimal Inch): 4.1300 |
| Number Of T-slots: 3 | Left-Hand Head Tilt (Degrees): 90.00 |
| Right-Hand Head Tilt (Degrees): 90.00 | Voltage: 230V; 460V |
| Horsepower: 5.00 | Overall Height (Inch): 92-1/8 |
| Overall Length (Inch): 104-1/4 | Overall Depth (Inch): 79-7/8 |
| UNSPSC Code: 23241500 | Maximum Spindle To Column Distance (Decimal Inch): 26.5000 |
| Maximum Spindle To Column Distance (Decimal Inch): 26.5000 | Table Load Capacity (Lb.): 925.00 |
| Certification: CSA; CUS | Certification: CSA; CUS |
| Warranty: 2 Year | Country of Origin: Taiwan |
| CNC Controller Brand: Acu-Rite | |
| CNC Controller Model: G-2 | |
| Spindle Speed Control: Variable Speed Pulley | |
| Table Length (Inch): 54 | |
| Table Width (Inch): 12 | |
| Phase: Three | |
| Longitudinal Travel (Inch): 28-1/4 | |
| Cross Travel (Decimal Inch): 13.3333 | |
| Knee Travel (Inch): 19-1/4 | |
| Maximum Spindle Speed (RPM): 3800.00 | |
| Spindle Travel Length (Decimal Inch): 5.0000 | |
| Spindle Travel Length (Inch): 5 | |
| Spindle Taper Size: NT40 | |
| Quill Diameter (Decimal Inch): 4.1300 | |
| Number Of T-slots: 3 | |
| Left-Hand Head Tilt (Degrees): 90.00 | |
| Right-Hand Head Tilt (Degrees): 90.00 | |
| Voltage: 230V; 460V | |
| Horsepower: 5.00 | |
| Overall Height (Inch): 92-1/8 | |
| Overall Length (Inch): 104-1/4 | |
| Overall Depth (Inch): 79-7/8 | |
| UNSPSC Code: 23241500 | |
| Maximum Spindle To Column Distance (Decimal Inch): 26.5000 | |
| Maximum Spindle To Column Distance (Decimal Inch): 26.5000 | |
| Table Load Capacity (Lb.): 925.00 | |
| Certification: CSA; CUS | |
| Certification: CSA; CUS | |
| Warranty: 2 Year | |
| Country of Origin: Taiwan |
| MSC# | 48839518 |
| Mfr# | 691941 |
