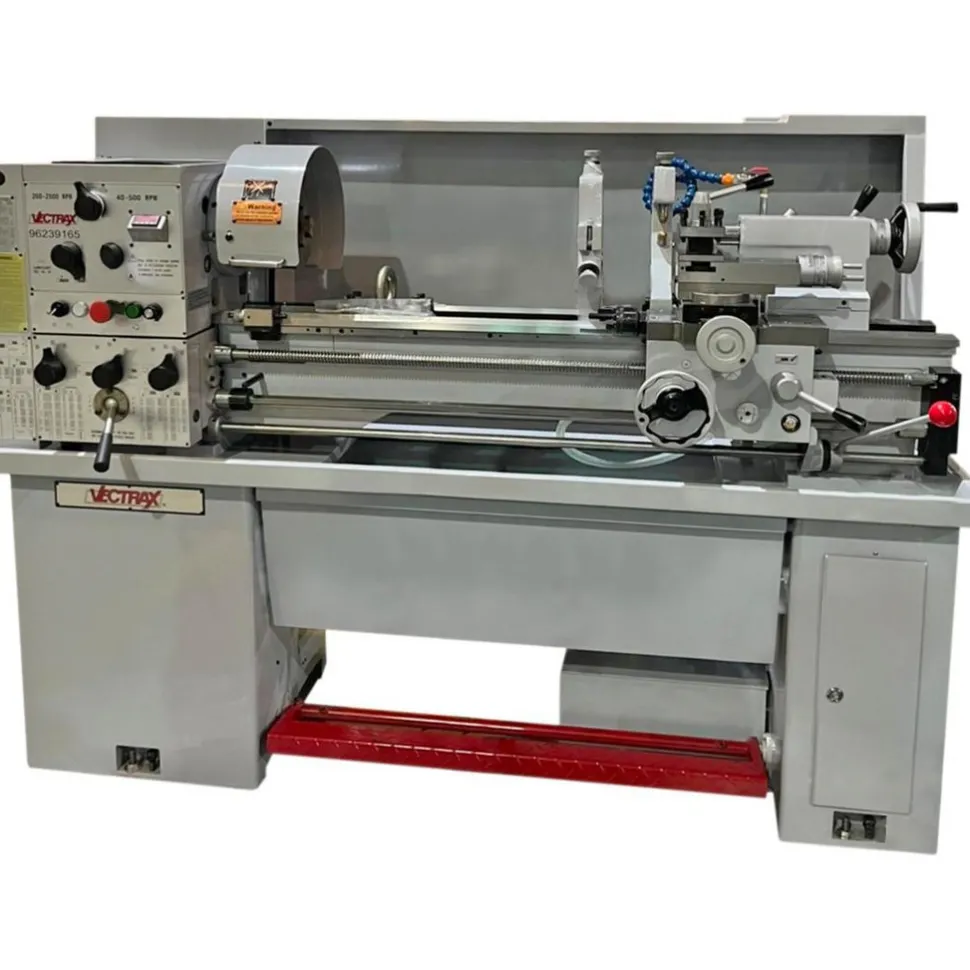

13″ x 40″ Engine Lathe: Geared Head, 3 hp, 230 V
138,89 $
Specifications
| Lathe Type: Engine | Phase: Three |
| Voltage: 230V | Swing (Inch): 13 |
| Bed Width (Inch): 7.3000 | Distance Between Centers (Inch): 40 |
| Spindle Speed Control: Geared Head | Spindle Bore Diameter (Inch): 1.3700 |
| Spindle Bore Diameter (mm): 35.00 | Gap Length (Decimal Inch): 6.0000 |
| Maximum Metric Pitch (Decimal Inch): 14.0000 | Compound Travel: 3-3/4 |
| Minimum Spindle Speed: 40 | Spindle Nose Designation: D1-4 |
| Maximum Spindle Speed (RPM): 2500 | Overall Depth (Inch): 31 |
| Overall Height (Inch): 51 | Overall Length (Decimal Inch): 76.3800 |
| Minimum Metric Pitch (Decimal Inch): 0.2000 | Number of Inch Threads: 47 |
| Number of Metric Threads: 44 | Tailstock Travel (mm): 100.00 |
| Spindle Taper Size (Sleeve): 3MT | Spindle Taper Size: 4MT |
| Tailstock Taper Size: 3MT | Tailstock Travel (Decimal Inch): 4.0000 |
| Warranty: 1 Year | Top Slide Travel (Decimal Inch): 3.7500 |
| Maximum Threads Per Inch: 144 | Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0050 |
| Minimum Threads Per Inch: 4 | Spindle Taper Size (No Sleeve): 4MT |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0410 | Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.002000 |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0136 | Swing Over Cross Slide (Decimal Inch): 7.5000 |
| Swing Over Cross Slide (Inch): 7-1/2 | Swing Over Gap (Inch): 20 |
| Swing Over Gap (Decimal Inch): 20.0000 | Country of Origin: Taiwan |
| Lathe Type: Engine | |
| Phase: Three | |
| Voltage: 230V | |
| Swing (Inch): 13 | |
| Bed Width (Inch): 7.3000 | |
| Distance Between Centers (Inch): 40 | |
| Spindle Speed Control: Geared Head | |
| Spindle Bore Diameter (Inch): 1.3700 | |
| Spindle Bore Diameter (mm): 35.00 | |
| Gap Length (Decimal Inch): 6.0000 | |
| Maximum Metric Pitch (Decimal Inch): 14.0000 | |
| Compound Travel: 3-3/4 | |
| Minimum Spindle Speed: 40 | |
| Spindle Nose Designation: D1-4 | |
| Maximum Spindle Speed (RPM): 2500 | |
| Overall Depth (Inch): 31 | |
| Overall Height (Inch): 51 | |
| Overall Length (Decimal Inch): 76.3800 | |
| Minimum Metric Pitch (Decimal Inch): 0.2000 | |
| Number of Inch Threads: 47 | |
| Number of Metric Threads: 44 | |
| Tailstock Travel (mm): 100.00 | |
| Spindle Taper Size (Sleeve): 3MT | |
| Spindle Taper Size: 4MT | |
| Tailstock Taper Size: 3MT | |
| Tailstock Travel (Decimal Inch): 4.0000 | |
| Warranty: 1 Year | |
| Top Slide Travel (Decimal Inch): 3.7500 | |
| Maximum Threads Per Inch: 144 | |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0050 | |
| Minimum Threads Per Inch: 4 | |
| Spindle Taper Size (No Sleeve): 4MT | |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0410 | |
| Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.002000 | |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0136 | |
| Swing Over Cross Slide (Decimal Inch): 7.5000 | |
| Swing Over Cross Slide (Inch): 7-1/2 | |
| Swing Over Gap (Inch): 20 | |
| Swing Over Gap (Decimal Inch): 20.0000 | |
| Country of Origin: Taiwan |
| MSC# | 96239165 |
| Mfr# | TRA036-230 |
