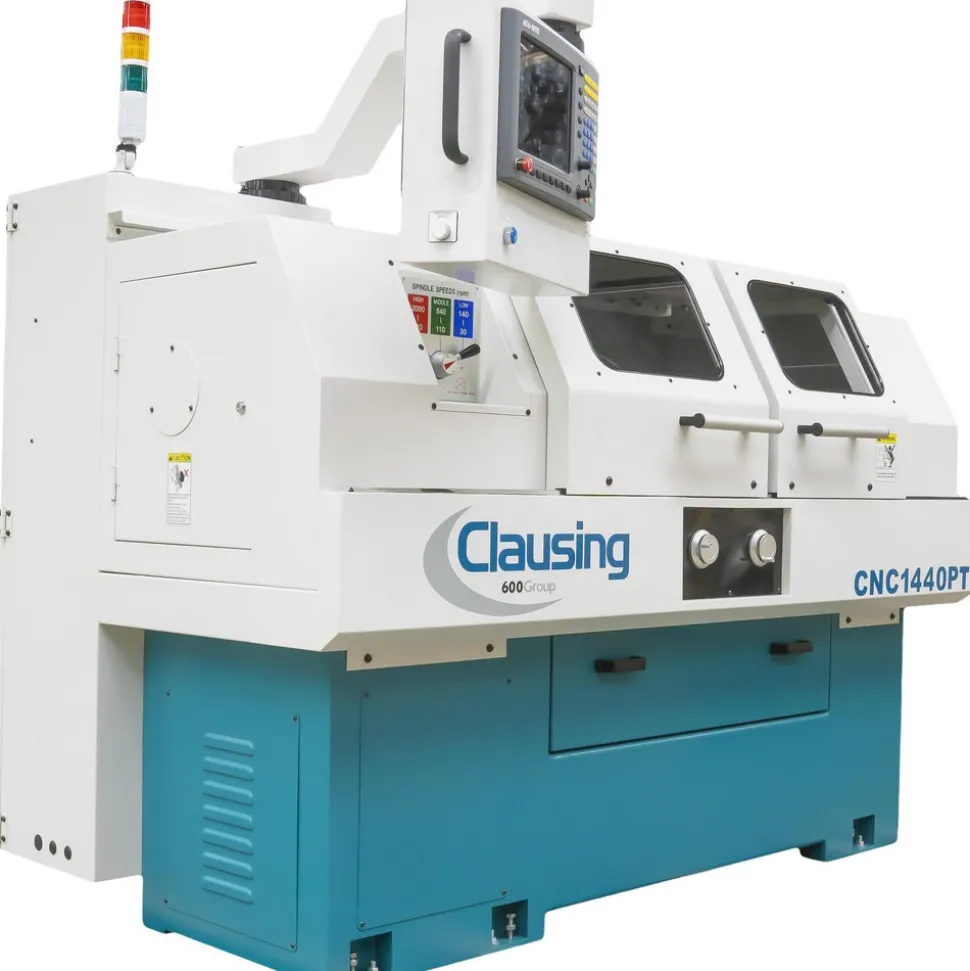

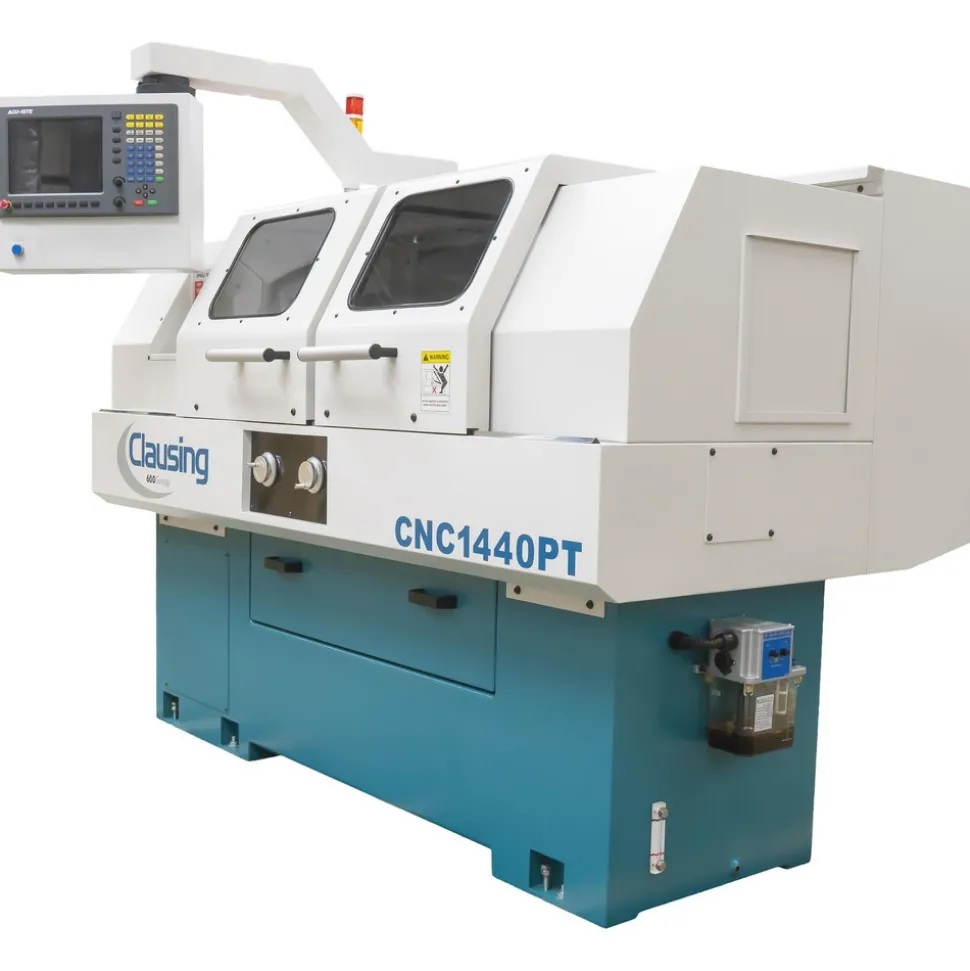

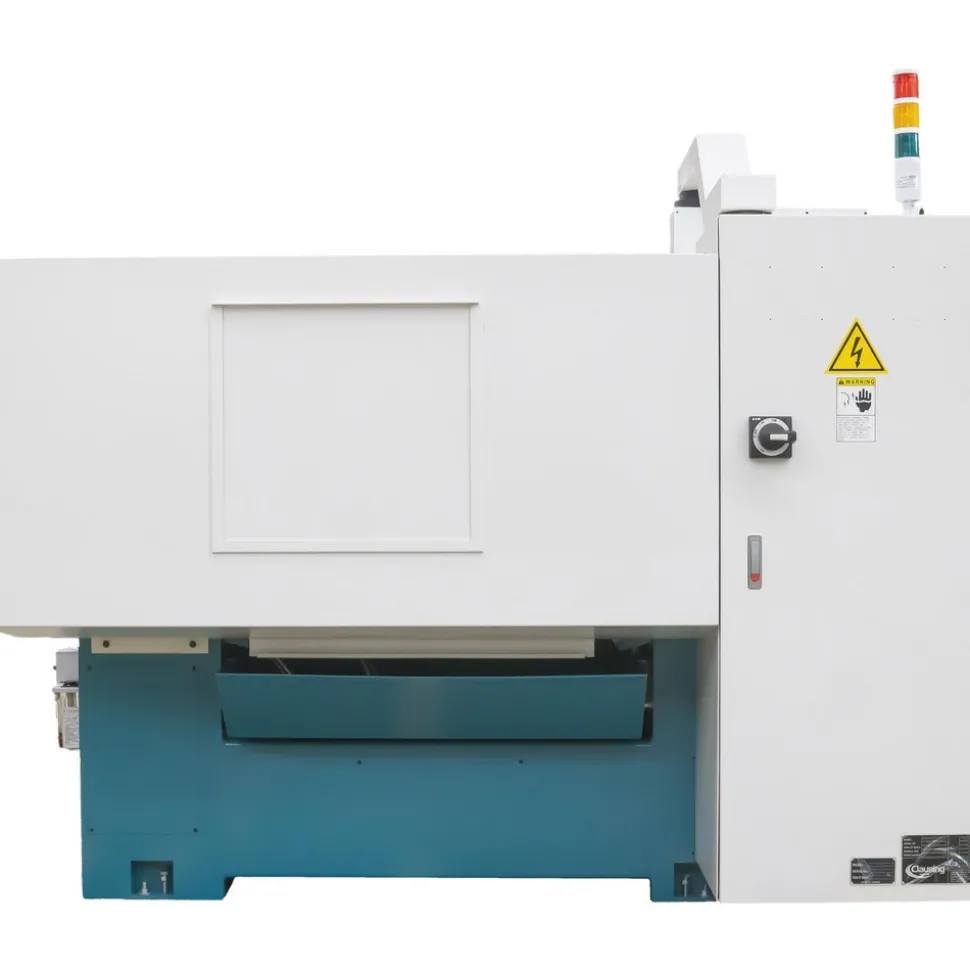

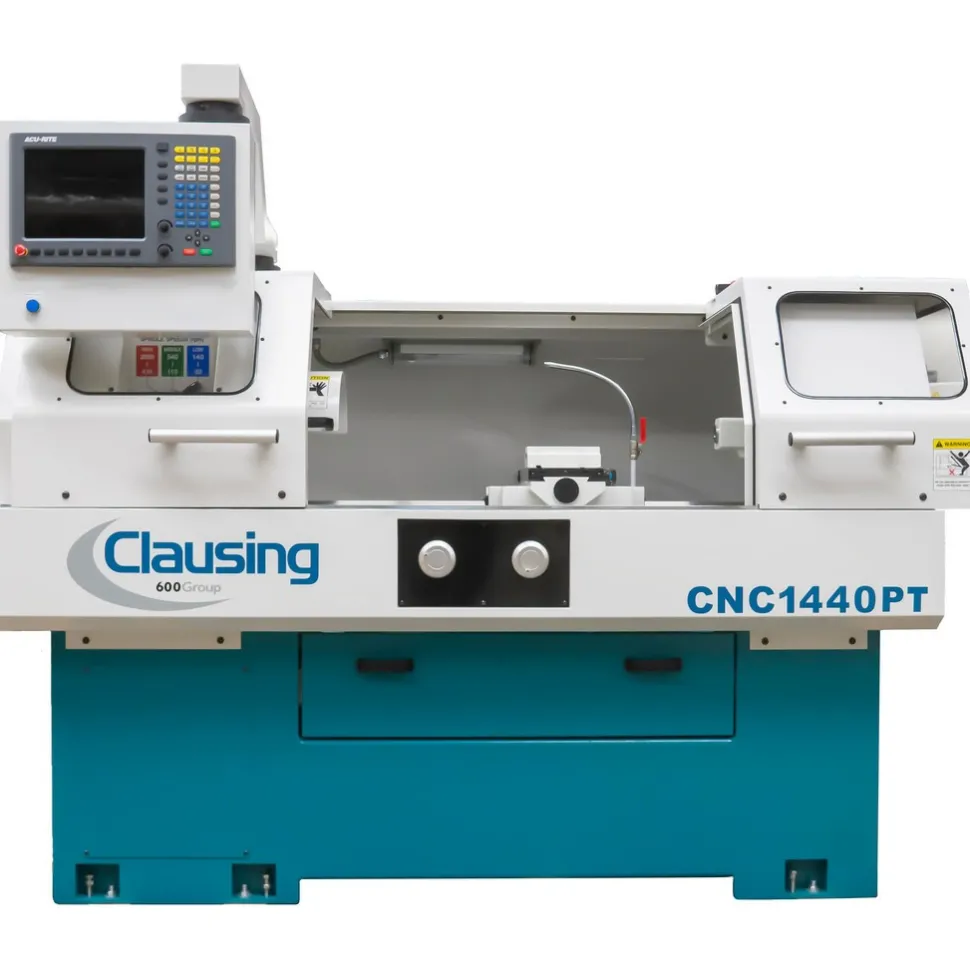

14″ x 40″ CNC Engine Lathe with Acu-Rite Turn Power Control
124,89 $
Specifications
| Swing (Decimal Inch): 14 | Swing (Inch): 14 |
| Swing Over Cross Slide (Inch): 6.7 | Swing Over Cross Slide (Decimal Inch): 6.7 |
| Distance Between Centers (Decimal Inch): 40 | Distance Between Centers (Inch): 40 |
| Bed Width (Decimal Inch): 8.5 | Headstock Taper Size: 5MT |
| Tailstock Taper Size: 3MT | Spindle Bore Diameter (Decimal Inch): 1.5 |
| Spindle Nose Designation: D1-4 | Number Of Spindle Speeds: 3 Infinitely Variable |
| Gap Length (Inch): 0 | Controller: ACU-RITE |
| Min. Cross Feed Rate Per Revolution (Decimal Inch): .001 | Max. Cross Feed Rate Per Revolution (Decimal Inch): 100 |
| Max. Longitudinal Feed Rate Per Rev. (In/Min): 100 | Overall Length (Decimal Inch): 40 |
| Overall Length (Inch): 40 | Overall Height (Inch): 66.3 |
| Overall Depth (Inch): 53.5 | UNSPSC Code: 23242300 |
| Maximum Rpm: 2000 | Minimum RPM: 30.00 |
| Horsepower (Hp): 5 | Country of Origin: Taiwan |
| Swing (Decimal Inch): 14 | |
| Swing (Inch): 14 | |
| Swing Over Cross Slide (Inch): 6.7 | |
| Swing Over Cross Slide (Decimal Inch): 6.7 | |
| Distance Between Centers (Decimal Inch): 40 | |
| Distance Between Centers (Inch): 40 | |
| Bed Width (Decimal Inch): 8.5 | |
| Headstock Taper Size: 5MT | |
| Tailstock Taper Size: 3MT | |
| Spindle Bore Diameter (Decimal Inch): 1.5 | |
| Spindle Nose Designation: D1-4 | |
| Number Of Spindle Speeds: 3 Infinitely Variable | |
| Gap Length (Inch): 0 | |
| Controller: ACU-RITE | |
| Min. Cross Feed Rate Per Revolution (Decimal Inch): .001 | |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 100 | |
| Max. Longitudinal Feed Rate Per Rev. (In/Min): 100 | |
| Overall Length (Decimal Inch): 40 | |
| Overall Length (Inch): 40 | |
| Overall Height (Inch): 66.3 | |
| Overall Depth (Inch): 53.5 | |
| UNSPSC Code: 23242300 | |
| Maximum Rpm: 2000 | |
| Minimum RPM: 30.00 | |
| Horsepower (Hp): 5 | |
| Country of Origin: Taiwan |
| MSC# | 26181792 |
| Mfr# | CNC1440PT |
