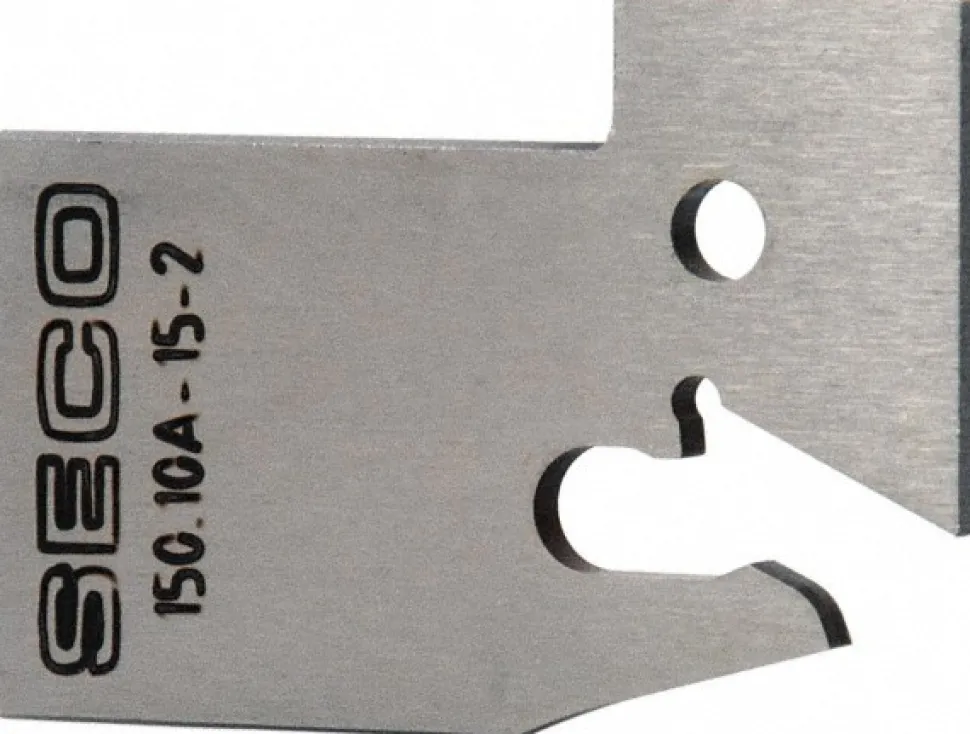

150.10A Single End Neutral Indexable Cutoff Blade

73,99 $

Specifications

End Type: Single	Cutting Direction: Neutral
Hand: Left Hand; Right Hand	Blade Height (Decimal Inch): 0.6100
Blade Width (Decimal Inch): 0.0700	Blade Overall Length (Decimal Inch): 1.3030
Blade Style: 150.10A	Insert Holding Method: Self Grip
Maximum Workpiece Diameter (Decimal Inch): 1.5000	Maximum Workpiece Diameter (Inch): 1-1/2
Series: 150.10	Tool Block Style: 150.10-15
Cutting Tool Application: Parting	Standards: ISO
Insert Seat Size: 2	Minimum Insert Width (Decimal Inch): 0.0780
Insert Corner Radius (Decimal Inch): 0.0060	Complete Insert Compatibility: 150.10-2..
Complete Tool Block/Toolholder Style Compatibility: R/L150.10…-15	MSC/Manufacturer Number: 150.10A-15-2
Insert Width: 0.0780	UNSPSC Code: 23241600
Country of Origin: Sweden
End Type: Single
Cutting Direction: Neutral
Hand: Left Hand; Right Hand
Blade Height (Decimal Inch): 0.6100
Blade Width (Decimal Inch): 0.0700
Blade Overall Length (Decimal Inch): 1.3030
Blade Style: 150.10A
Insert Holding Method: Self Grip
Maximum Workpiece Diameter (Decimal Inch): 1.5000
Maximum Workpiece Diameter (Inch): 1-1/2
Series: 150.10
Tool Block Style: 150.10-15
Cutting Tool Application: Parting
Standards: ISO
Insert Seat Size: 2
Minimum Insert Width (Decimal Inch): 0.0780
Insert Corner Radius (Decimal Inch): 0.0060
Complete Insert Compatibility: 150.10-2..
Complete Tool Block/Toolholder Style Compatibility: R/L150.10…-15
MSC/Manufacturer Number: 150.10A-15-2
Insert Width: 0.0780
UNSPSC Code: 23241600
Country of Origin: Sweden
