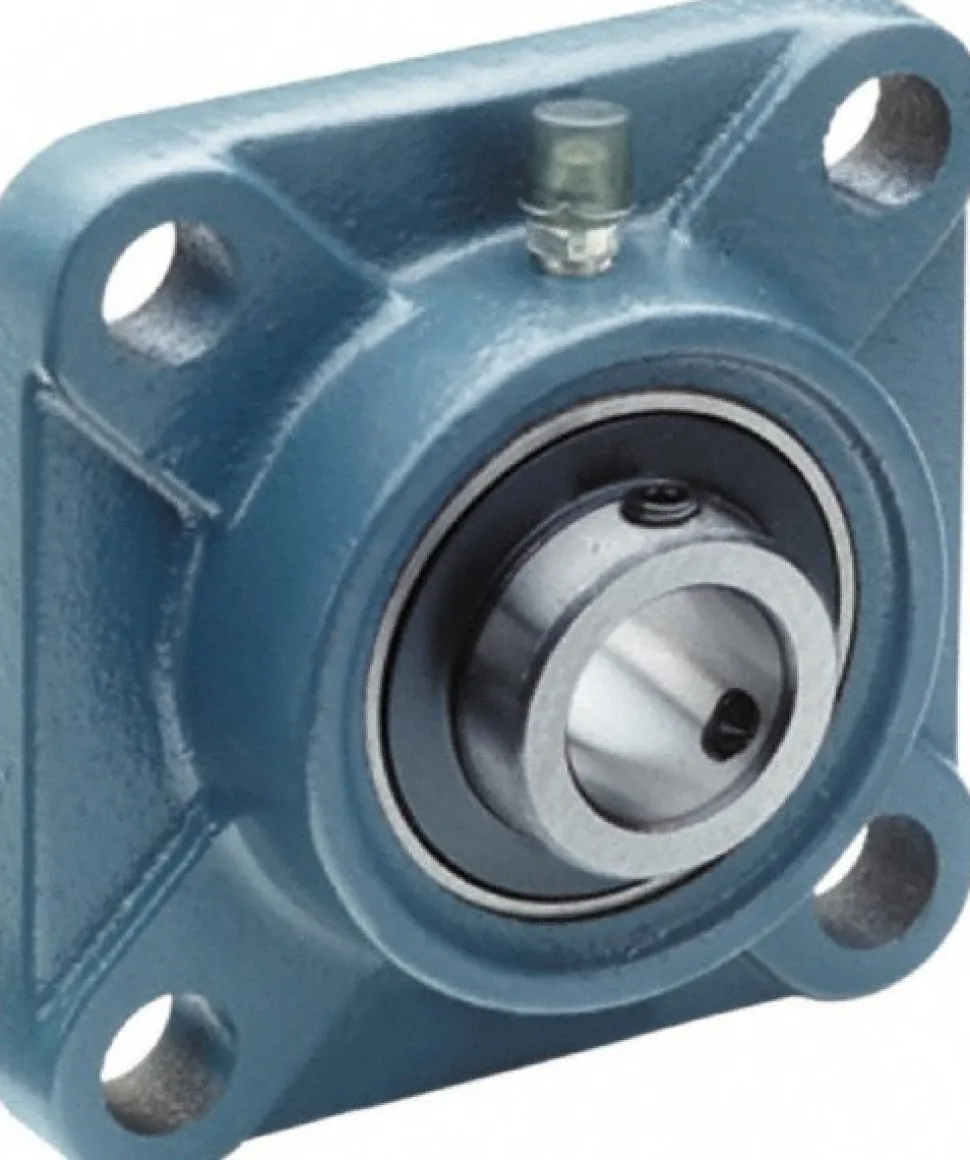

2-1/4″ ID, 6.89″ OAL x 2.7″ OAH 4-Bolt Flange

113,89 $

Specifications

Bearing Insert Type: Wide Inner Ring	Type: 4-Bolt Flange
Flange Mount Type: 4-Bolt Flange	Inside Diameter (Inch): 2-1/4
Inside Diameter (Decimal Inch): 2.2500	Bolt Hole (Center-to-center): 5.625 in
Bolt Size (Inch): 5/8	Lubrication: Required
Housing Material: Iron	Overall Length (Decimal Inch): 6.8900
Overall Height (Decimal Inch): 2.7000	Lock Type: Set Screw Lock
Static Load Capacity: 7396.00	Dynamic Load Capacity (Lb.): 10723.000
Base-to-center Distance: 29 mm	Series: UCF
Distance Between Base And Center (Decimal Inch): 1.1400	Insert Material: 52100 Steel
Metric Bolt Size: 16.0000	UNSPSC Code: 31171500
Width (Decimal Inch – 4 Decimals): 6.8900
Bearing Insert Type: Wide Inner Ring
Type: 4-Bolt Flange
Flange Mount Type: 4-Bolt Flange
Inside Diameter (Inch): 2-1/4
Inside Diameter (Decimal Inch): 2.2500
Bolt Hole (Center-to-center): 5.625 in
Bolt Size (Inch): 5/8
Lubrication: Required
Housing Material: Iron
Overall Length (Decimal Inch): 6.8900
Overall Height (Decimal Inch): 2.7000
Lock Type: Set Screw Lock
Static Load Capacity: 7396.00
Dynamic Load Capacity (Lb.): 10723.000
Base-to-center Distance: 29 mm
Series: UCF
Distance Between Base And Center (Decimal Inch): 1.1400
Insert Material: 52100 Steel
Metric Bolt Size: 16.0000
UNSPSC Code: 31171500
Width (Decimal Inch – 4 Decimals): 6.8900
