Sale!

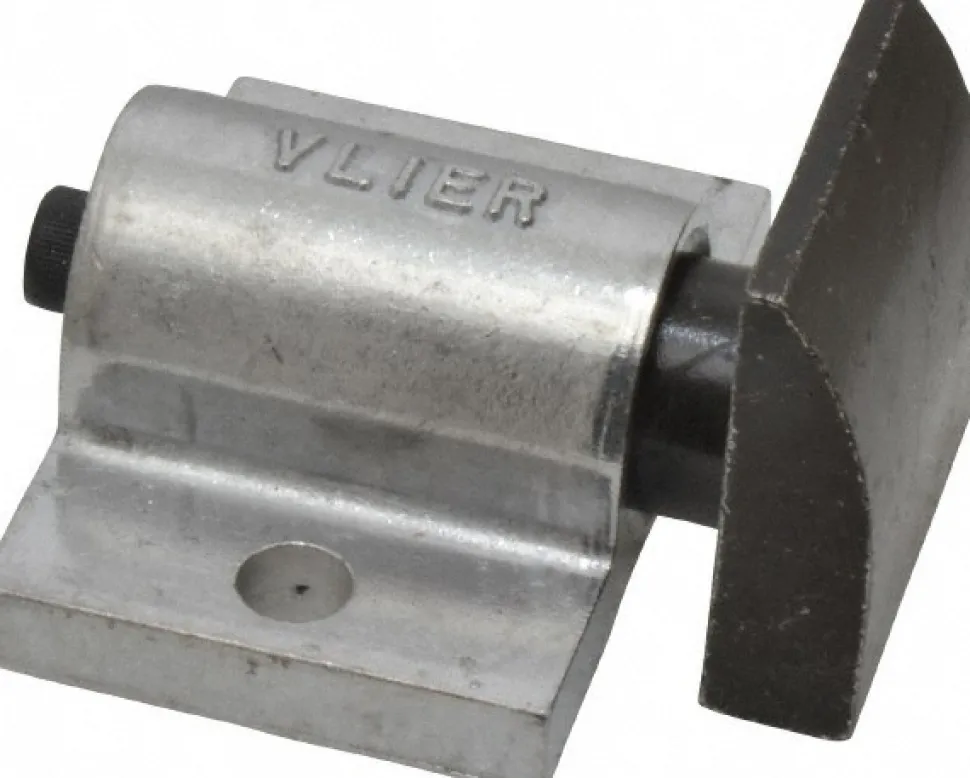

2″ Body Width x 1-3/8″ Body Len, 1/4″ Stroke Len, 1-1/2″ Btw Mt Hole Ctrs, 1.312″ Btw Mt Hole & Edge, Tangless Square Spring Locating Stop
Original price was: 17,00 $.12,99 $Current price is: 12,99 $.
Specifications
| Stop Head Width (Inch): 1.25 in | Stop Head Width (Decimal Inch): 1.2500 |
| Stroke Length: 0.25 in | Stroke Length (Inch): 1/4 |
| Body Length: 1.375 in | Stop Head Height: 1.25 in |
| Base Width (Decimal Inch): 2 in; 2.0000 | Stop Head Thickness: 0.375 in |
| Body Length (Decimal Inch): 1.3750; 1.375 in | Body Width: 2 in |
| Stop Head Height (Inch): 1-1/4 | Distance Between Mount Hole Centers (Inch): 1.5000 in; 1-1/2 |
| Distance Between Mount Hole Centers (Decimal Inch): 1.5000 | Tang Profile: Tangless |
| Initial End Force: 14.4 lb | Final End Force: 45.4 lb |
| Mounting Slot Length: 0.25 in | Mounting Slot Width: 0.266 in |
| Middle End Force (kg): 32.00 | Stop Head Thickness (Decimal Inch): 0.3750 |
| Body Width (Decimal Inch): 2.0000 | Distance Between Mount Hole & Edge (Decimal Inch): 1.3120 |
| Mounting Slot Length (Inch): 1/4 | UNSPSC Code: 27112132 |
| Mounting Slot Width (Decimal Inch): 0.2660; 0.266 in | Base Thickness (Inch): 1/4; 0.2500 in |
| Body Material: Aluminum | Country of Origin: UNITED STATES |
| Stop Head Width (Inch): 1.25 in | |
| Stop Head Width (Decimal Inch): 1.2500 | |
| Stroke Length: 0.25 in | |
| Stroke Length (Inch): 1/4 | |
| Body Length: 1.375 in | |
| Stop Head Height: 1.25 in | |
| Base Width (Decimal Inch): 2 in; 2.0000 | |
| Stop Head Thickness: 0.375 in | |
| Body Length (Decimal Inch): 1.3750; 1.375 in | |
| Body Width: 2 in | |
| Stop Head Height (Inch): 1-1/4 | |
| Distance Between Mount Hole Centers (Inch): 1.5000 in; 1-1/2 | |
| Distance Between Mount Hole Centers (Decimal Inch): 1.5000 | |
| Tang Profile: Tangless | |
| Initial End Force: 14.4 lb | |
| Final End Force: 45.4 lb | |
| Mounting Slot Length: 0.25 in | |
| Mounting Slot Width: 0.266 in | |
| Middle End Force (kg): 32.00 | |
| Stop Head Thickness (Decimal Inch): 0.3750 | |
| Body Width (Decimal Inch): 2.0000 | |
| Distance Between Mount Hole & Edge (Decimal Inch): 1.3120 | |
| Mounting Slot Length (Inch): 1/4 | |
| UNSPSC Code: 27112132 | |
| Mounting Slot Width (Decimal Inch): 0.2660; 0.266 in | |
| Base Thickness (Inch): 1/4; 0.2500 in | |
| Body Material: Aluminum | |
| Country of Origin: UNITED STATES |
| MSC# | 94060654 |
| Mfr# | SS92B |
| Big Book# | 1376 |
