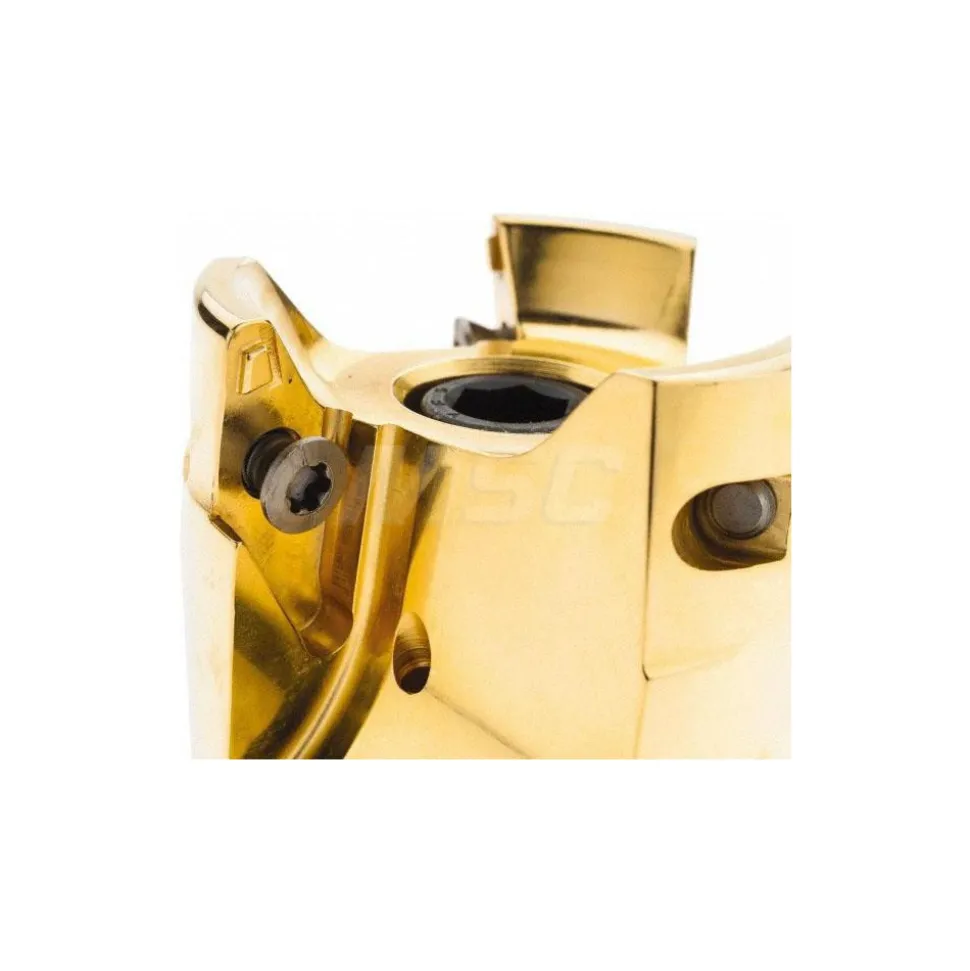

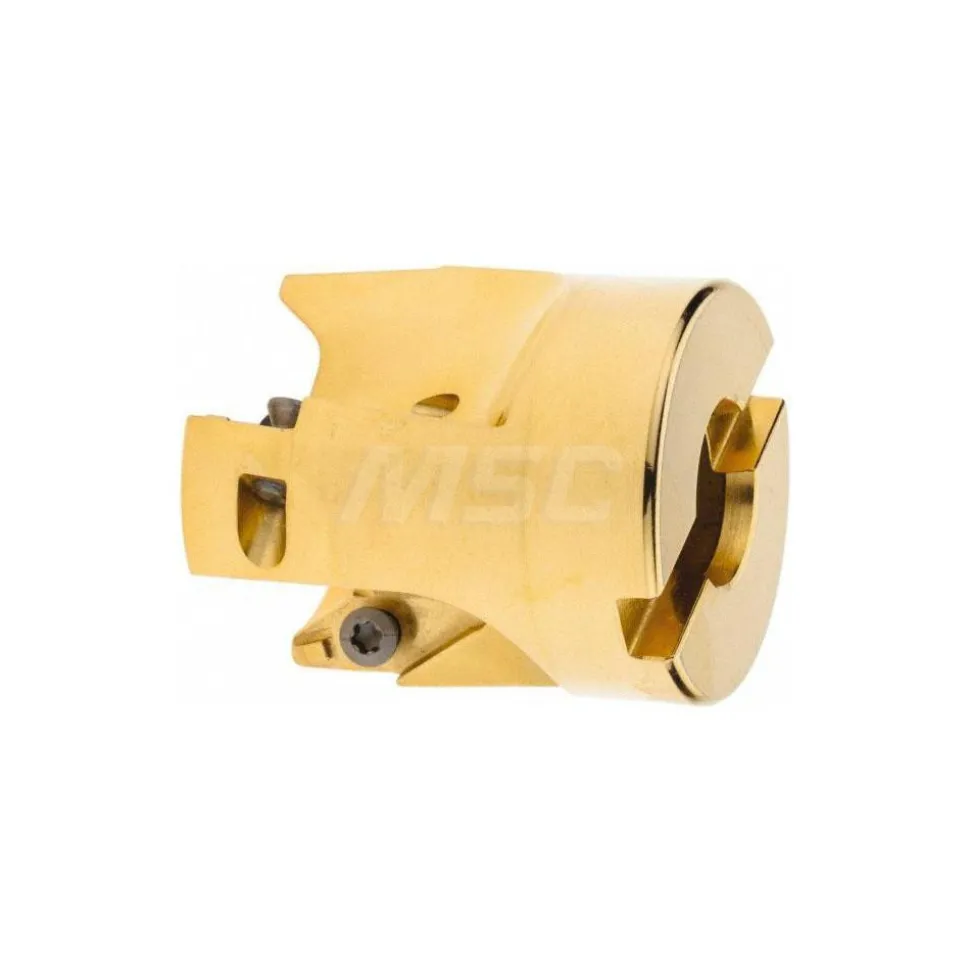

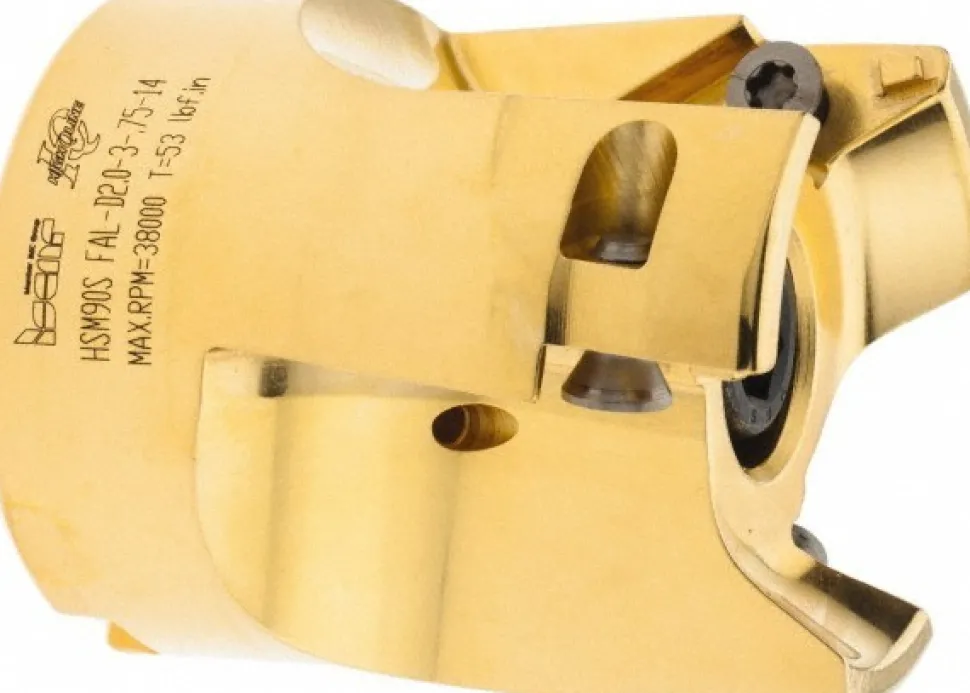

2″ Cut Dia, 3/4″ Arbor Hole Dia, 0.4″ Max Depth, Indexable Square-Shoulder Face Mill
140,89 $
Specifications
| Maximum Cutting Diameter (Inch): 2 | Maximum Cutting Diameter (Decimal Inch): 2.0000 |
| Maximum Depth of Cut (Decimal Inch): 0.4000 | Arbor Hole Diameter (Inch): 3/4 |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | Compatible Insert Size Code: HSM90S APCR 1405 |
| Cutter Style: HSM90S FAL-14 | Insert Holding Method: Screw |
| Lead Angle: 0/90 | Series: Helialu |
| Maximum Ramping Angle: 8.00 | Maximum Body Diameter (Decimal Inch): 1.8500 |
| Overall Height (Decimal Inch): 2.2400 | Hub Diameter (Decimal Inch): 1.8800 |
| Standards: ISO | Complete Insert Compatibility: HSM90S APCR 1405 |
| UNSPSC Code: 27112803 | Coolant Through: Yes |
| Number Of Cutter Inserts: 3 | Number Of Flutes: 3 |
| Country of Origin: Israel | |
| Maximum Cutting Diameter (Inch): 2 | |
| Maximum Cutting Diameter (Decimal Inch): 2.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.4000 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: HSM90S APCR 1405 | |
| Cutter Style: HSM90S FAL-14 | |
| Insert Holding Method: Screw | |
| Lead Angle: 0/90 | |
| Series: Helialu | |
| Maximum Ramping Angle: 8.00 | |
| Maximum Body Diameter (Decimal Inch): 1.8500 | |
| Overall Height (Decimal Inch): 2.2400 | |
| Hub Diameter (Decimal Inch): 1.8800 | |
| Standards: ISO | |
| Complete Insert Compatibility: HSM90S APCR 1405 | |
| UNSPSC Code: 27112803 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 3 | |
| Number Of Flutes: 3 | |
| Country of Origin: Israel |
| MSC# | 32130429 |
| Mfr# | 3105783 |
