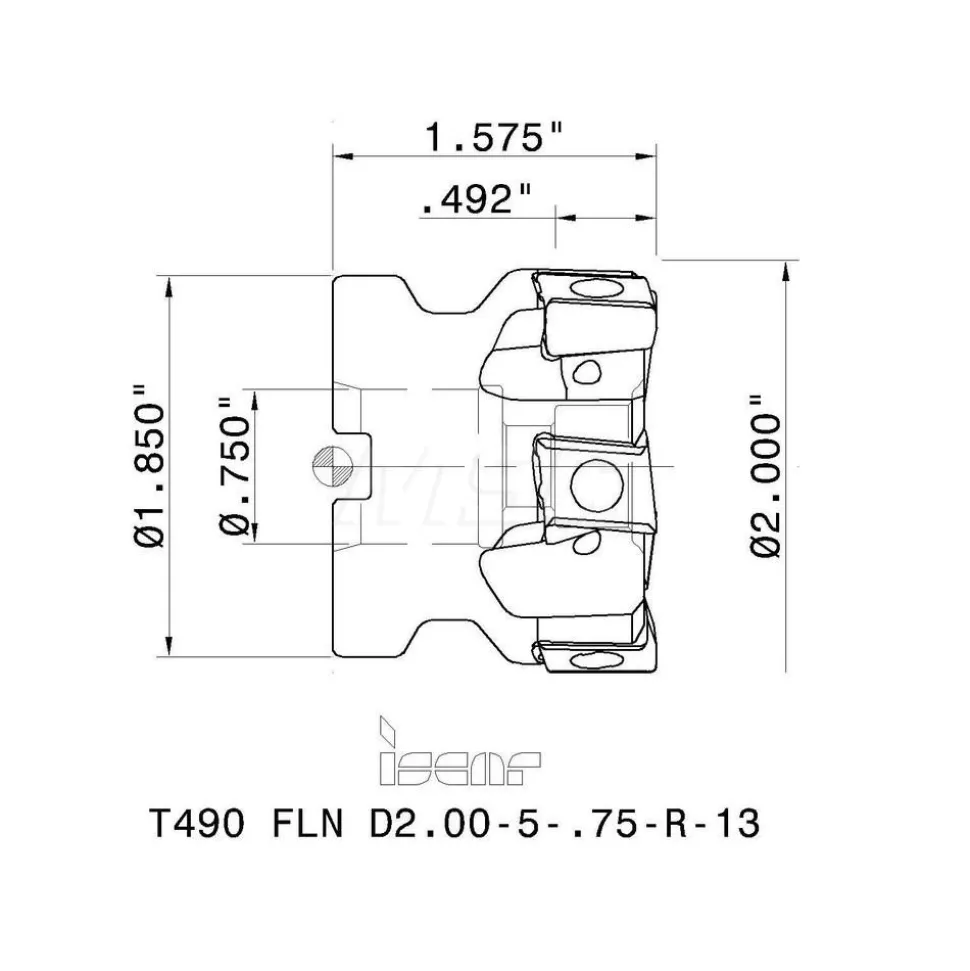

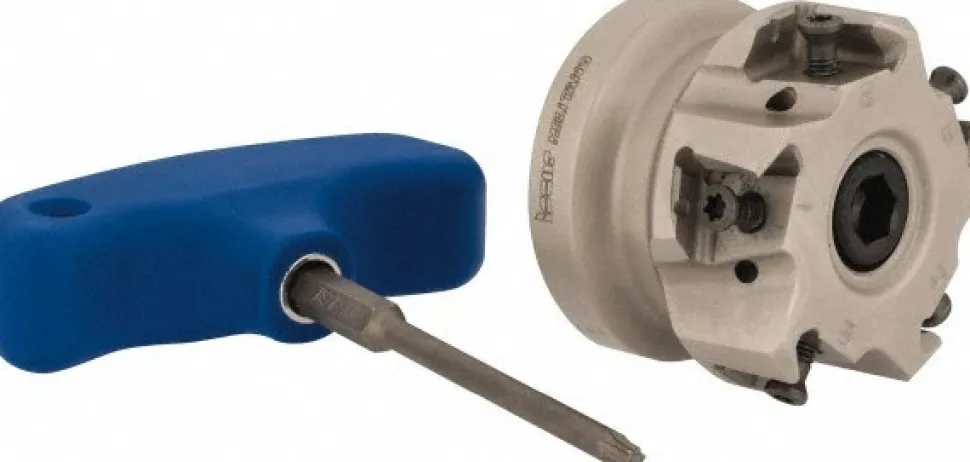

2″ Cut Dia, 3/4″ Arbor Hole Dia, 0.492″ Max Depth, Indexable Square-Shoulder Face Mill
124,89 $
Specifications
| Maximum Cutting Diameter (Inch): 2 | Maximum Cutting Diameter (Decimal Inch): 2.0000 |
| Maximum Depth of Cut (Decimal Inch): 0.4920 | Arbor Hole Diameter (Inch): 3/4 |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | Compatible Insert Size Code: T490 LN 1306 |
| Cutter Style: T490 FLN-13 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw; Clamp | Lead Angle: 0/90 |
| Series: Helitang | Maximum Ramping Angle: 1.50 |
| Overall Height (Decimal Inch): 1.5700 | Hub Diameter (Decimal Inch): 1.8500 |
| Standards: ISO | Complete Insert Compatibility: T490 LNHT 1306PN-R PL; T490 LNHT 1306PNTL; T490 LNHT 1306PNTR; T490 LNAR 1306PN-R-P; T490 LNAR 1306PN-R; T490 LNMT 1306PNTR; T490 LNMT 1306PNTR-CS |
| UNSPSC Code: 27112803 | Coolant Through: Yes |
| Number Of Cutter Inserts: 5 | Number Of Flutes: 5 |
| Country of Origin: Israel | |
| Maximum Cutting Diameter (Inch): 2 | |
| Maximum Cutting Diameter (Decimal Inch): 2.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.4920 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: T490 LN 1306 | |
| Cutter Style: T490 FLN-13 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0/90 | |
| Series: Helitang | |
| Maximum Ramping Angle: 1.50 | |
| Overall Height (Decimal Inch): 1.5700 | |
| Hub Diameter (Decimal Inch): 1.8500 | |
| Standards: ISO | |
| Complete Insert Compatibility: T490 LNHT 1306PN-R PL; T490 LNHT 1306PNTL; T490 LNHT 1306PNTR; T490 LNAR 1306PN-R-P; T490 LNAR 1306PN-R; T490 LNMT 1306PNTR; T490 LNMT 1306PNTR-CS | |
| UNSPSC Code: 27112803 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 5 | |
| Number Of Flutes: 5 | |
| Country of Origin: Israel |
| MSC# | 40832339 |
| Mfr# | 3105321 |
