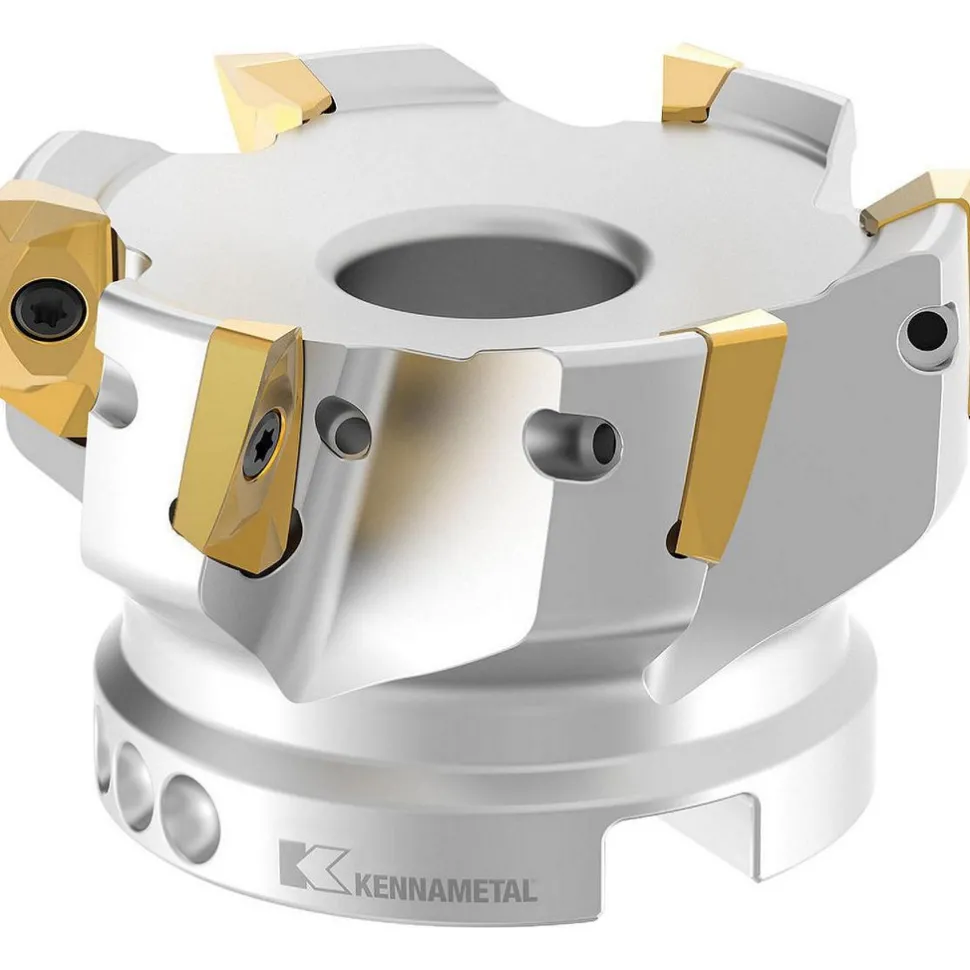

2″ Cut Dia, 3/4″ Arbor Hole Dia, 0.56″ Max Depth, Indexable Square-Shoulder Face Mill
130,99 $
Specifications
| Maximum Cutting Diameter (Inch): 2 | Maximum Cutting Diameter (Decimal Inch): 2.0000 |
| Maximum Depth of Cut (Decimal Inch): 0.5600 | Arbor Hole Diameter (Inch): 3/4 |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | Compatible Insert Size Code: EP14..; EC14.. |
| Cutter Style: Mill 1 | Insert Holding Method: Screw; Clamp |
| Lead Angle: 0/90 | Series: Mill 1-14 |
| Overall Height (Decimal Inch): 1.5750 | UNSPSC Code: 27112803 |
| Coolant Through: No | Number Of Cutter Inserts: 5 |
| Number Of Flutes: 5 | Country of Origin: Brazil |
| Maximum Cutting Diameter (Inch): 2 | |
| Maximum Cutting Diameter (Decimal Inch): 2.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.5600 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: EP14..; EC14.. | |
| Cutter Style: Mill 1 | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0/90 | |
| Series: Mill 1-14 | |
| Overall Height (Decimal Inch): 1.5750 | |
| UNSPSC Code: 27112803 | |
| Coolant Through: No | |
| Number Of Cutter Inserts: 5 | |
| Number Of Flutes: 5 | |
| Country of Origin: Brazil |
| MSC# | 73005431 |
| Mfr# | 2624270 |
| Big Book# | 711 |
