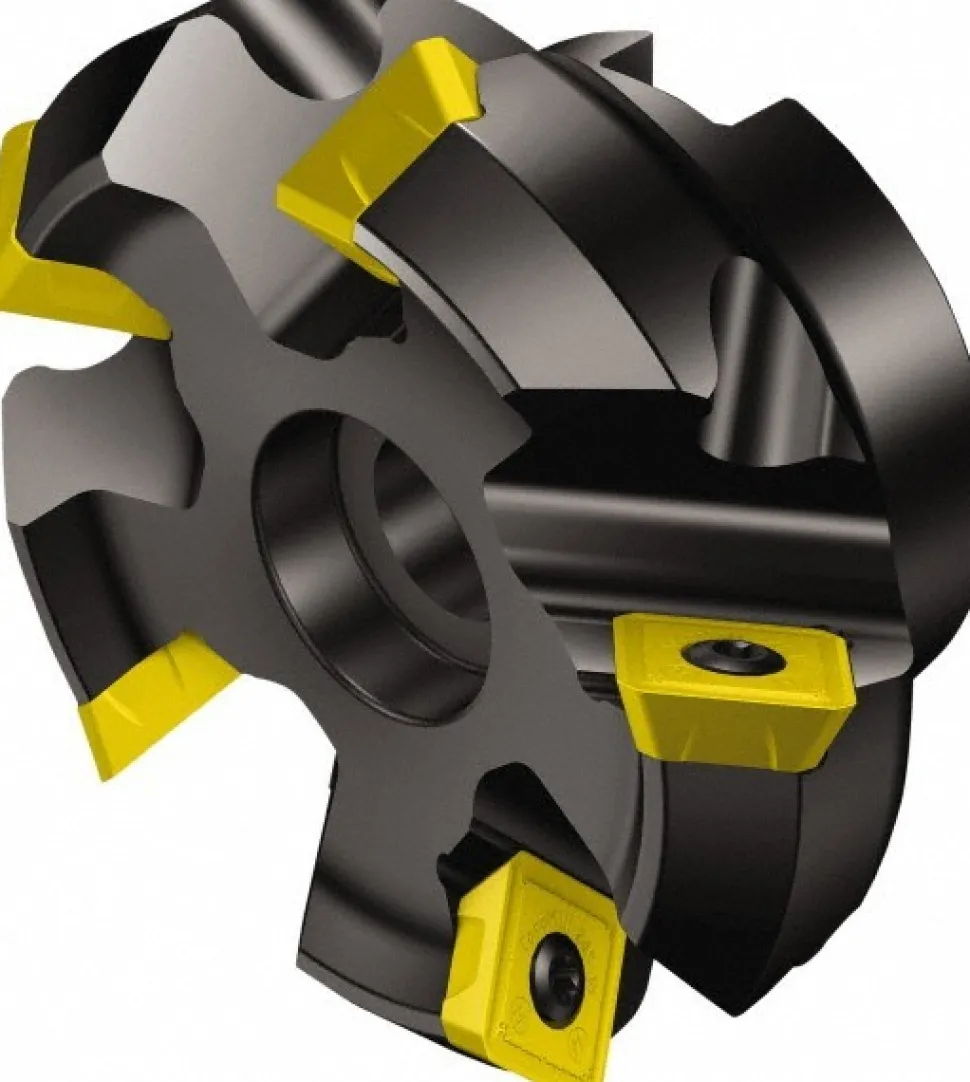

2″ Cut Dia, 3/4″ Arbor Hole Dia, 6.096mm Max Depth, Indexable Square-Shoulder Face Mill
130,89 $

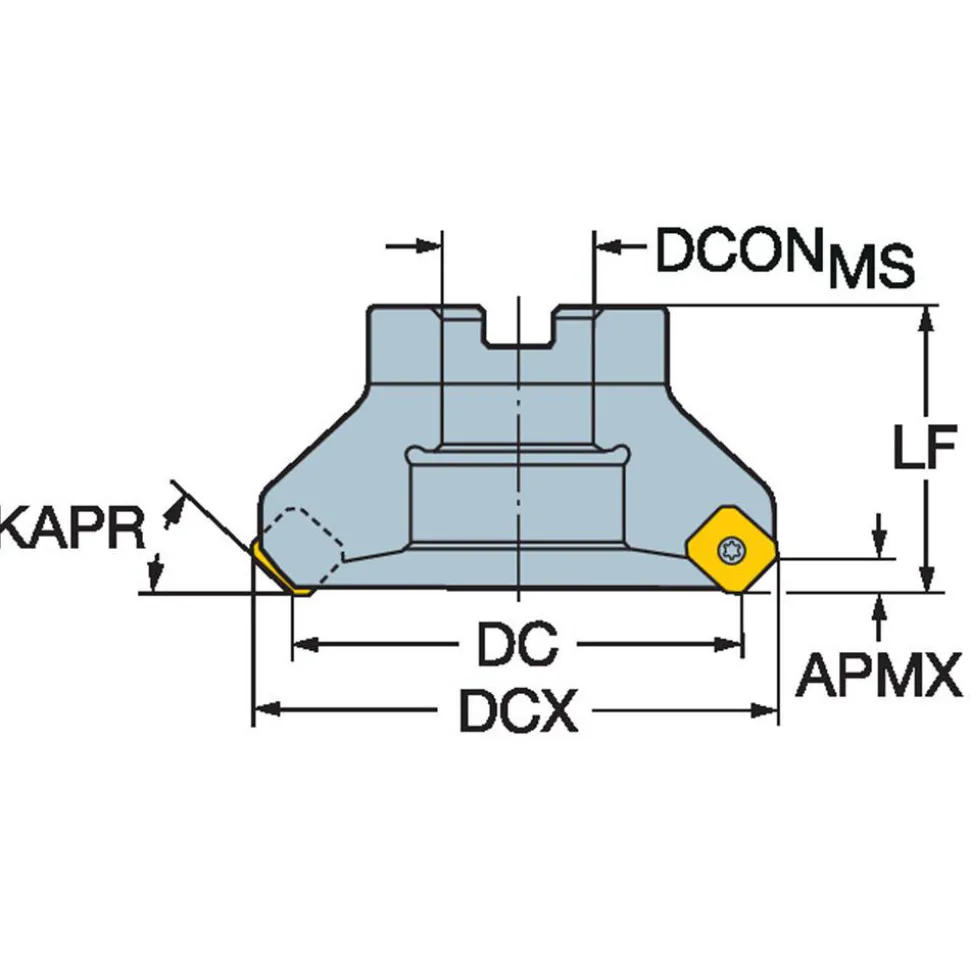

Specifications
| Maximum Cutting Diameter (Inch): 2 | Maximum Cutting Diameter (Decimal Inch): 2.0000 |
| Maximum Cutting Diameter (mm): 50.80 | Maximum Depth of Cut (mm): 6.10 |
| Maximum Depth of Cut (Decimal Inch): 0.2400 | Arbor Hole Diameter (Inch): 3/4 |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | Compatible Insert Size Code: R245-12T3.. |
| Cutter Style: RA245 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw; Clamp | Lead Angle: 45 |
| Rake: Positive | Series: CoroMill 245 |
| Maximum Body Diameter (Decimal Inch): 2.0000 | Overall Height (mm): 40.00 |
| Overall Height (Decimal Inch): 1.5748 | Keyway Width (mm): 8.15 |
| Keyway Width (Decimal Inch): 0.3209 | Hub Diameter (mm): 19.05 |
| Hub Diameter (Inch): 3/4 | Pitch Type: Close |
| Cutting Edge Length (Decimal Inch): 0.2400 | Complete Insert Compatibility: R245-12T3.. |
| UNSPSC Code: 27112803 | Toolholder Material: Steel |
| Coolant Through: No | Number Of Cutter Inserts: 4 |
| Number Of Flutes: 4 | Country of Origin: UNITED STATES |
| Maximum Cutting Diameter (Inch): 2 | |
| Maximum Cutting Diameter (Decimal Inch): 2.0000 | |
| Maximum Cutting Diameter (mm): 50.80 | |
| Maximum Depth of Cut (mm): 6.10 | |
| Maximum Depth of Cut (Decimal Inch): 0.2400 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: R245-12T3.. | |
| Cutter Style: RA245 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 45 | |
| Rake: Positive | |
| Series: CoroMill 245 | |
| Maximum Body Diameter (Decimal Inch): 2.0000 | |
| Overall Height (mm): 40.00 | |
| Overall Height (Decimal Inch): 1.5748 | |
| Keyway Width (mm): 8.15 | |
| Keyway Width (Decimal Inch): 0.3209 | |
| Hub Diameter (mm): 19.05 | |
| Hub Diameter (Inch): 3/4 | |
| Pitch Type: Close | |
| Cutting Edge Length (Decimal Inch): 0.2400 | |
| Complete Insert Compatibility: R245-12T3.. | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Coolant Through: No | |
| Number Of Cutter Inserts: 4 | |
| Number Of Flutes: 4 | |
| Country of Origin: UNITED STATES |
| MSC# | 61447207 |
| Mfr# | 5738688 |
