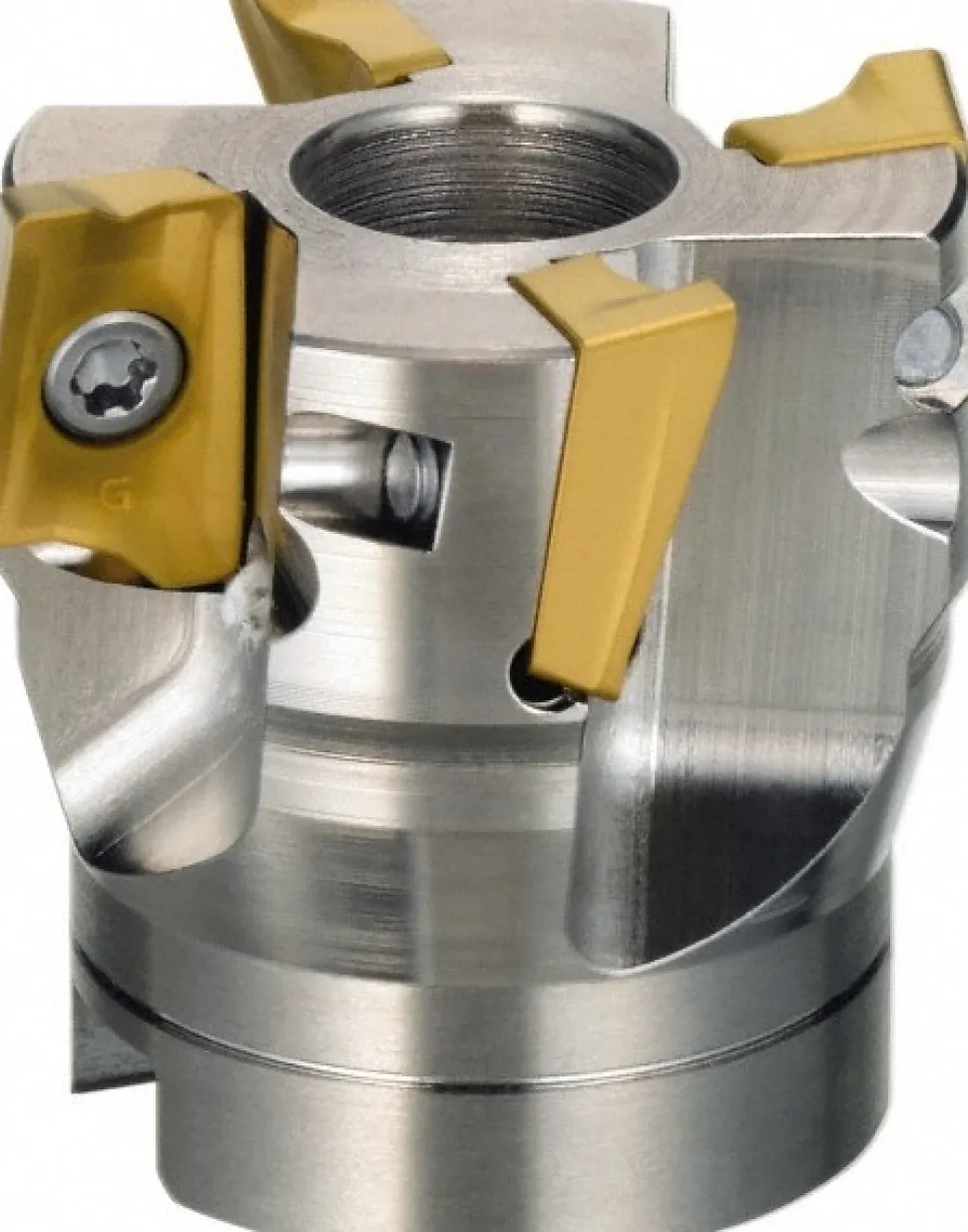

2″ Cut Dia, 3/4″ Arbor Hole Dia, Indexable Square-Shoulder Face Mill
Original price was: 428,00 $.120,99 $Current price is: 120,99 $.
Specifications
| Maximum Cutting Diameter (Inch): 2 | Maximum Cutting Diameter (Decimal Inch): 2.0000 |
| Arbor Hole Diameter (Inch): 3/4 | Arbor Hole Diameter (Decimal Inch): 0.7500 |
| Compatible Insert Size Code: AXMT17; AXET17 | Cutter Style: WEX |
| Cutting Direction: Right Hand | Insert Holding Method: Screw |
| Lead Angle: 0/90 | Series: WaveMill |
| Overall Height (Decimal Inch): 1.5620 | Keyway Width (Decimal Inch): 0.3120 |
| Minimum Insert Radius (Decimal Inch): 0.0160 | Complete Insert Compatibility: AXET 1705; AXMT 1705 |
| UNSPSC Code: 27112803 | Coolant Through: Yes |
| Number Of Cutter Inserts: 5 | Number Of Flutes: 5 |
| Country of Origin: Japan | |
| Maximum Cutting Diameter (Inch): 2 | |
| Maximum Cutting Diameter (Decimal Inch): 2.0000 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: AXMT17; AXET17 | |
| Cutter Style: WEX | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Lead Angle: 0/90 | |
| Series: WaveMill | |
| Overall Height (Decimal Inch): 1.5620 | |
| Keyway Width (Decimal Inch): 0.3120 | |
| Minimum Insert Radius (Decimal Inch): 0.0160 | |
| Complete Insert Compatibility: AXET 1705; AXMT 1705 | |
| UNSPSC Code: 27112803 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 5 | |
| Number Of Flutes: 5 | |
| Country of Origin: Japan |
| MSC# | 07910995 |
| Mfr# | 2200W47 |
