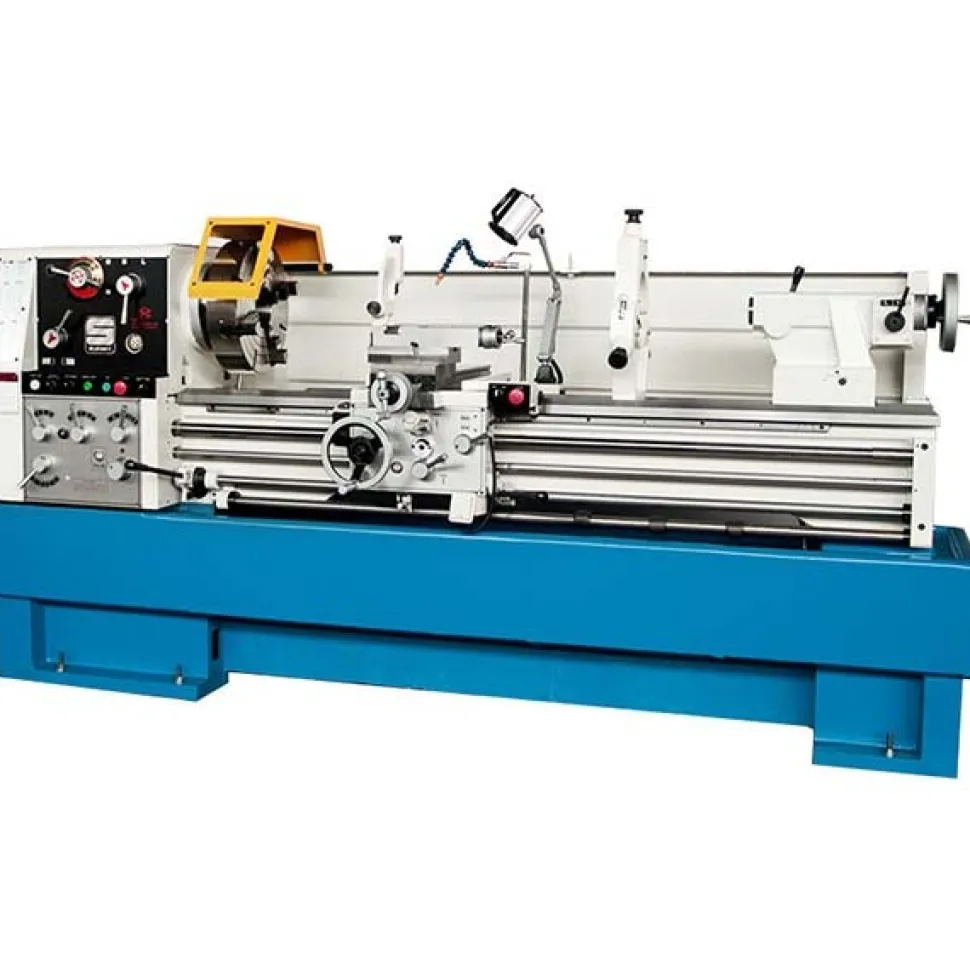

20″ x 60″ Toolroom Lathe: Geared Head, 10 hp, 220/440 V
Original price was: 58 195,00 $.140,89 $Current price is: 140,89 $.
Specifications
| Lathe Type: Toolroom | Phase: Three |
| Voltage: 220/440V | Swing (Inch): 20 |
| Bed Width (Inch): 13.0000 | Distance Between Centers (Inch): 60 |
| Spindle Speed Control: Geared Head | Spindle Bore Diameter (Inch): 4 |
| Cross Slide Travel (Inch): 11-1/2 | Gap Length (Decimal Inch): 30.0000 |
| Bed Width (Inch): 13 | Maximum Metric Pitch (Decimal Inch): 14.0000 |
| Compound Travel: 5 | Minimum Spindle Speed: 32 |
| Spindle Nose Designation: D1-8 | Maximum Spindle Speed (RPM): 1500 |
| Overall Depth (Inch): 44 | Overall Depth (Decimal Inch): 44.0000 |
| Overall Height (Inch): 63 | Overall Length (Inch): 114 |
| Overall Length (Decimal Inch): 114.0000 | Minimum Metric Pitch (Decimal Inch): 0.2000 |
| Cross Slide Travel (Decimal Inch): 11.5000 | Number of Inch Threads: 45 |
| Number of Metric Threads: 42 | Spindle Taper Size: 5MT |
| Tailstock Taper Size: 5MT | Tailstock Travel (Decimal Inch): 6.0000 |
| Number Of Spindle Speeds: 12 | Overall Height (Decimal Inch): 63.0000 |
| Warranty: 1 Year | Maximum Threads Per Inch: 72 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0020 | Minimum Threads Per Inch: 45 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0400 | Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.001000 |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0200 | Swing Over Cross Slide (Decimal Inch): 13.2500 |
| Swing Over Cross Slide (Inch): 13-1/4 | Swing Over Gap (Inch): 30 |
| Swing Over Gap (Decimal Inch): 30.0000 | Swing Over Gap: 30.0 in |
| Country of Origin: Taiwan | |
| Lathe Type: Toolroom | |
| Phase: Three | |
| Voltage: 220/440V | |
| Swing (Inch): 20 | |
| Bed Width (Inch): 13.0000 | |
| Distance Between Centers (Inch): 60 | |
| Spindle Speed Control: Geared Head | |
| Spindle Bore Diameter (Inch): 4 | |
| Cross Slide Travel (Inch): 11-1/2 | |
| Gap Length (Decimal Inch): 30.0000 | |
| Bed Width (Inch): 13 | |
| Maximum Metric Pitch (Decimal Inch): 14.0000 | |
| Compound Travel: 5 | |
| Minimum Spindle Speed: 32 | |
| Spindle Nose Designation: D1-8 | |
| Maximum Spindle Speed (RPM): 1500 | |
| Overall Depth (Inch): 44 | |
| Overall Depth (Decimal Inch): 44.0000 | |
| Overall Height (Inch): 63 | |
| Overall Length (Inch): 114 | |
| Overall Length (Decimal Inch): 114.0000 | |
| Minimum Metric Pitch (Decimal Inch): 0.2000 | |
| Cross Slide Travel (Decimal Inch): 11.5000 | |
| Number of Inch Threads: 45 | |
| Number of Metric Threads: 42 | |
| Spindle Taper Size: 5MT | |
| Tailstock Taper Size: 5MT | |
| Tailstock Travel (Decimal Inch): 6.0000 | |
| Number Of Spindle Speeds: 12 | |
| Overall Height (Decimal Inch): 63.0000 | |
| Warranty: 1 Year | |
| Maximum Threads Per Inch: 72 | |
| Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0020 | |
| Minimum Threads Per Inch: 45 | |
| Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0400 | |
| Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.001000 | |
| Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0200 | |
| Swing Over Cross Slide (Decimal Inch): 13.2500 | |
| Swing Over Cross Slide (Inch): 13-1/4 | |
| Swing Over Gap (Inch): 30 | |
| Swing Over Gap (Decimal Inch): 30.0000 | |
| Swing Over Gap: 30.0 in | |
| Country of Origin: Taiwan |
| MSC# | 31722473 |
| Mfr# | 20-4X60A |
