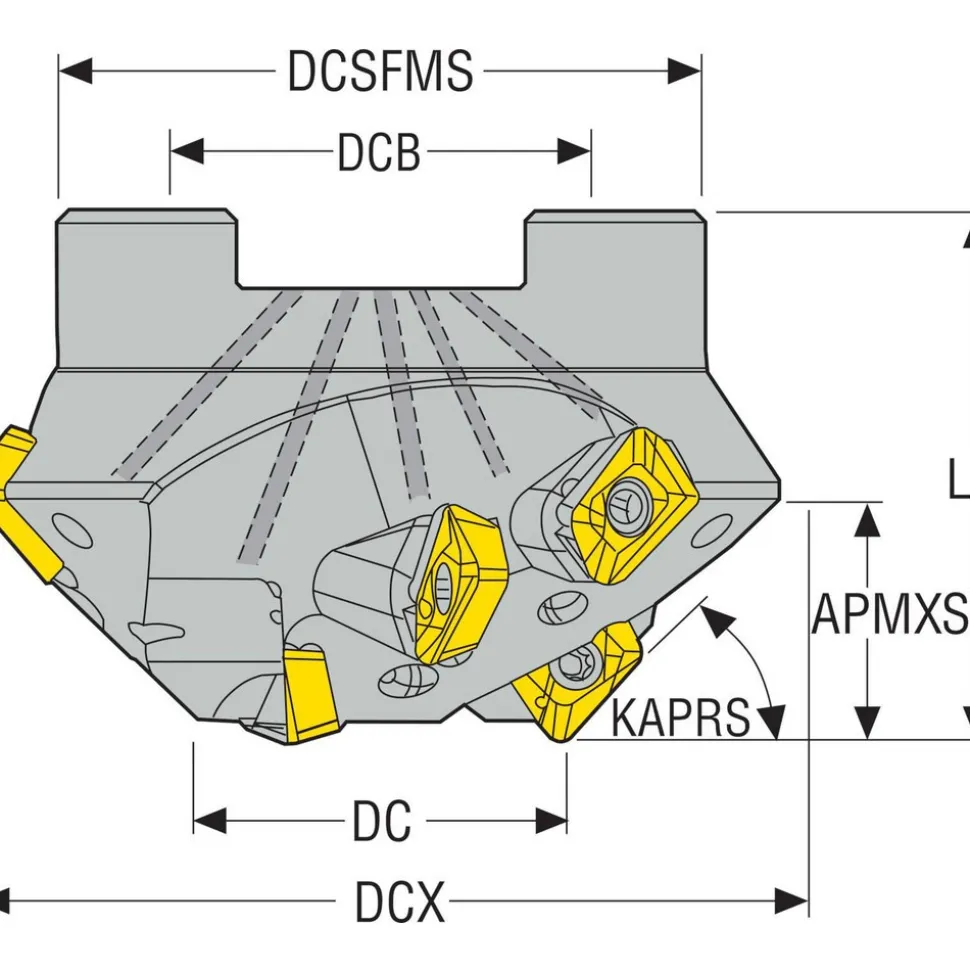

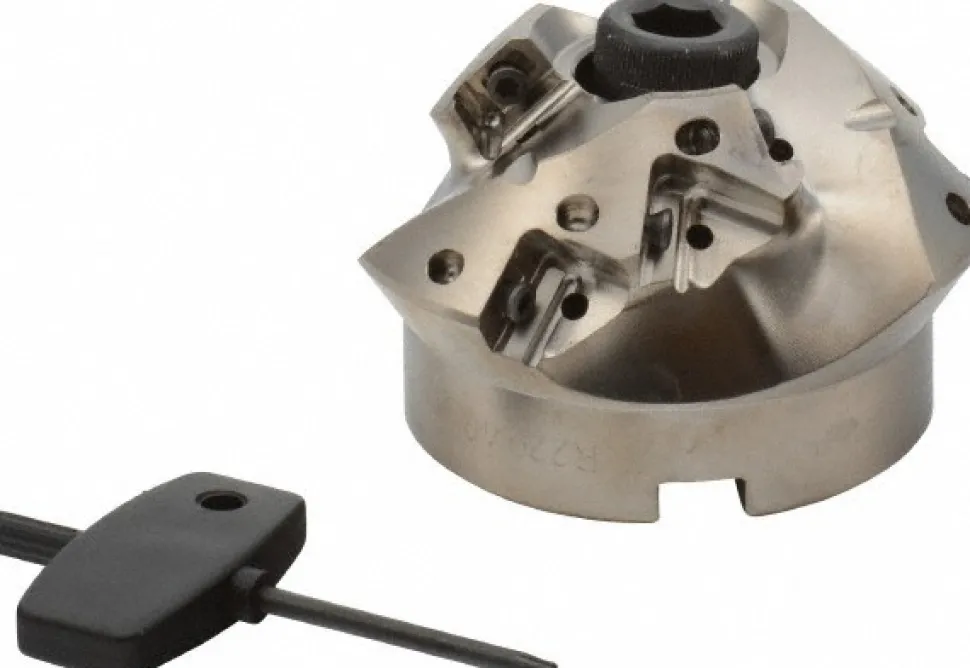

3.126″ Cut Dia, 1″ Arbor Hole, 0.866″ Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill
138,99 $
Specifications
| Minimum Cutting Diameter (Decimal Inch): 1.3700 | Maximum Cutting Diameter (Decimal Inch): 3.1260 |
| Maximum Depth of Cut (Decimal Inch): 0.8660 | Arbor Hole Diameter (Decimal Inch): 1.0000 |
| Arbor Hole Diameter (Inch): 1 | Compatible Insert Size Code: XO 1204 |
| Cutter Style: R220.49 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw | Rake: Negative (Radial); Positive (Axial) |
| Series: R220.49 | Hub Diameter (Decimal Inch): 2.4400 |
| Keyway Width (mm): 9.70 | Keyway Width (Decimal Inch): 0.3800 |
| Overall Height (Decimal Inch): 1.9680 | Maximum Body Diameter (Decimal Inch): 1.3740 |
| Maximum RPM: 11600 | Tool Application: Chamfering |
| Complete Insert Compatibility: XOEX 120404FR-E06; XOEX 120424R-M07; XOEX 120431R-M07; XOEX 120404R-M07; XOEX 120408FR-E06; XOEX 120420FR-E06; XOEX 120408R-M07; XOEX 120440R-M07; XOEX 120408ZZR-M07; XOEX 120416R-M07; XOEX 120431FR-E06; XOEX 120402R-M07; XOEX 120416FR-E06; XOEX 120450R-M07 | Number Of Cutter Inserts: 9 |
| Coolant Through: Yes | Number Of Flutes: 3 |
| UNSPSC Code: 23291600 | Country of Origin: France |
| Minimum Cutting Diameter (Decimal Inch): 1.3700 | |
| Maximum Cutting Diameter (Decimal Inch): 3.1260 | |
| Maximum Depth of Cut (Decimal Inch): 0.8660 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Arbor Hole Diameter (Inch): 1 | |
| Compatible Insert Size Code: XO 1204 | |
| Cutter Style: R220.49 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Rake: Negative (Radial); Positive (Axial) | |
| Series: R220.49 | |
| Hub Diameter (Decimal Inch): 2.4400 | |
| Keyway Width (mm): 9.70 | |
| Keyway Width (Decimal Inch): 0.3800 | |
| Overall Height (Decimal Inch): 1.9680 | |
| Maximum Body Diameter (Decimal Inch): 1.3740 | |
| Maximum RPM: 11600 | |
| Tool Application: Chamfering | |
| Complete Insert Compatibility: XOEX 120404FR-E06; XOEX 120424R-M07; XOEX 120431R-M07; XOEX 120404R-M07; XOEX 120408FR-E06; XOEX 120420FR-E06; XOEX 120408R-M07; XOEX 120440R-M07; XOEX 120408ZZR-M07; XOEX 120416R-M07; XOEX 120431FR-E06; XOEX 120402R-M07; XOEX 120416FR-E06; XOEX 120450R-M07 | |
| Number Of Cutter Inserts: 9 | |
| Coolant Through: Yes | |
| Number Of Flutes: 3 | |
| UNSPSC Code: 23291600 | |
| Country of Origin: France |
| MSC# | 76081256 |
| Mfr# | 02670048 |
