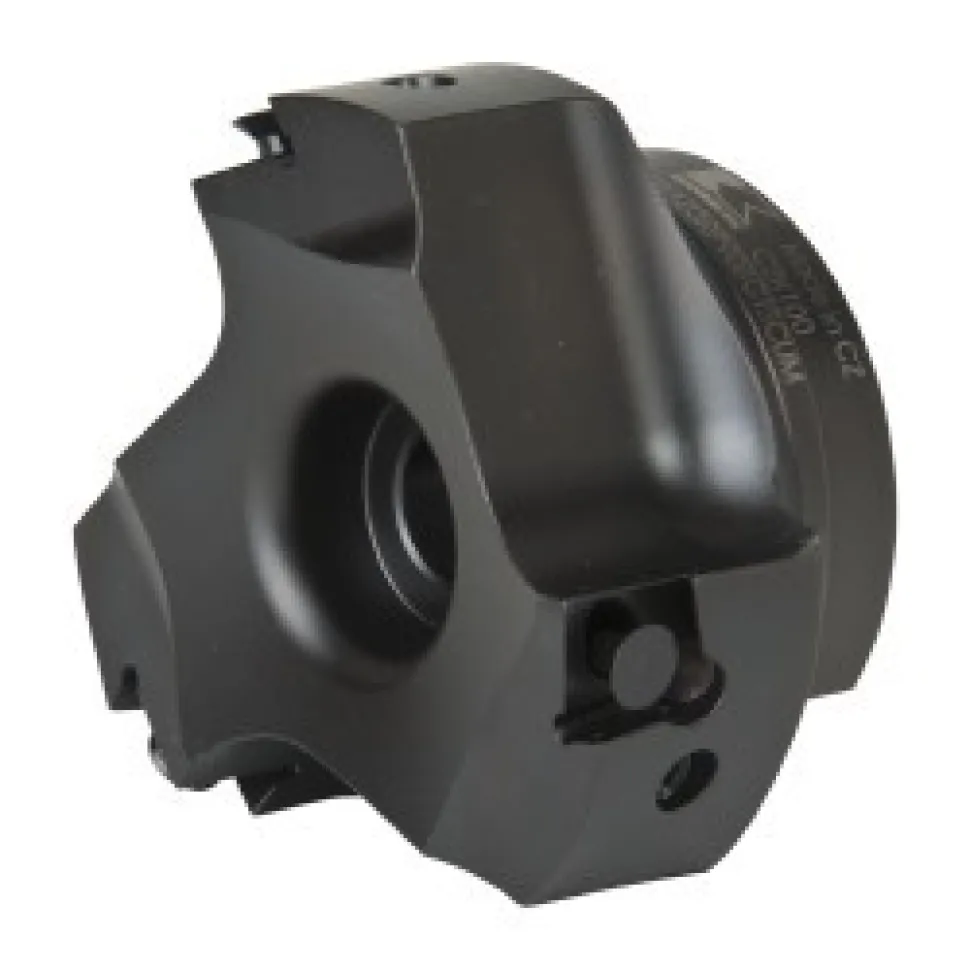

3″ Cut Dia, 1″ Arbor Hole Dia, 0.394″ Max Depth, Indexable Square-Shoulder Face Mill
122,89 $
Specifications
| Maximum Cutting Diameter (Inch): 3 | Maximum Cutting Diameter (Decimal Inch): 3.0000 |
| Maximum Cutting Diameter (mm): 76.20 | Maximum Depth of Cut (Decimal Inch): 0.3940 |
| Arbor Hole Diameter (Inch): 1 | Arbor Hole Diameter (Decimal Inch): 1.0000 |
| Compatible Insert Size Code: BGHX 15L5… | Cutting Direction: Right Hand |
| Insert Holding Method: Clamp | Lead Angle: 0/90 |
| Rake: Positive | Rake Angle: 24.00 |
| Series: Fix-Perfect | Maximum Body Diameter (Decimal Inch): 2.9250 |
| Overall Height (mm): 44.45 | Overall Height (Inch): 1-3/4 |
| Overall Height (Decimal Inch): 1.7500 | Keyway Width (mm): 9.91 |
| Keyway Width (Decimal Inch): 0.3902 | Hub Diameter (mm): 55.60 |
| Hub Diameter (Decimal Inch): 2.1890 | UNSPSC Code: 27112803 |
| Coolant Through: No | Number Of Cutter Inserts: 3 |
| Number Of Flutes: 3 | Country of Origin: Czechia |
| Maximum Cutting Diameter (Inch): 3 | |
| Maximum Cutting Diameter (Decimal Inch): 3.0000 | |
| Maximum Cutting Diameter (mm): 76.20 | |
| Maximum Depth of Cut (Decimal Inch): 0.3940 | |
| Arbor Hole Diameter (Inch): 1 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Compatible Insert Size Code: BGHX 15L5… | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Clamp | |
| Lead Angle: 0/90 | |
| Rake: Positive | |
| Rake Angle: 24.00 | |
| Series: Fix-Perfect | |
| Maximum Body Diameter (Decimal Inch): 2.9250 | |
| Overall Height (mm): 44.45 | |
| Overall Height (Inch): 1-3/4 | |
| Overall Height (Decimal Inch): 1.7500 | |
| Keyway Width (mm): 9.91 | |
| Keyway Width (Decimal Inch): 0.3902 | |
| Hub Diameter (mm): 55.60 | |
| Hub Diameter (Decimal Inch): 2.1890 | |
| UNSPSC Code: 27112803 | |
| Coolant Through: No | |
| Number Of Cutter Inserts: 3 | |
| Number Of Flutes: 3 | |
| Country of Origin: Czechia |
| MSC# | 01230499 |
| Mfr# | 2235054 |
| Big Book# | 717 |
