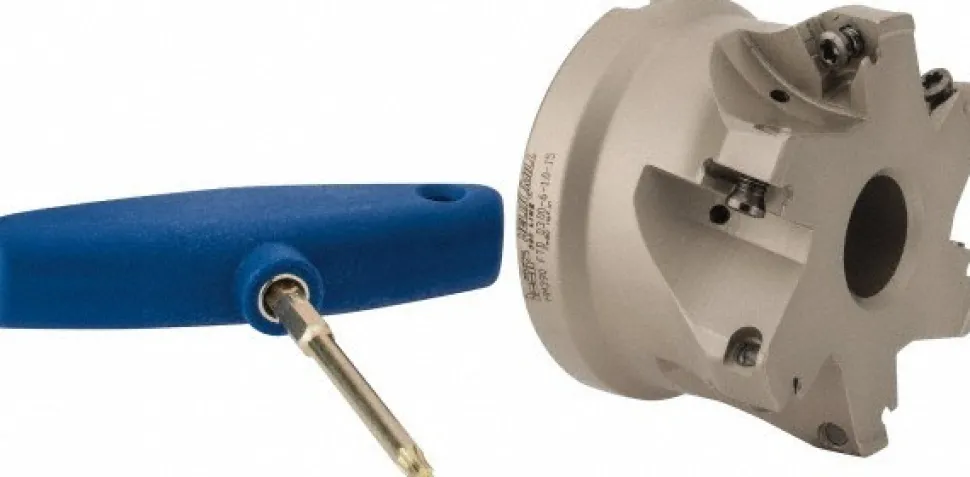

3" Cut Dia, 1" Arbor Hole Dia, 0.512" Max Depth, Indexable Square-Shoulder Face Mill

3″ Cut Dia, 1″ Arbor Hole Dia, 0.512″ Max Depth, Indexable Square-Shoulder Face Mill

126,89 $

SKU: SKU1ugdzEL1LI Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

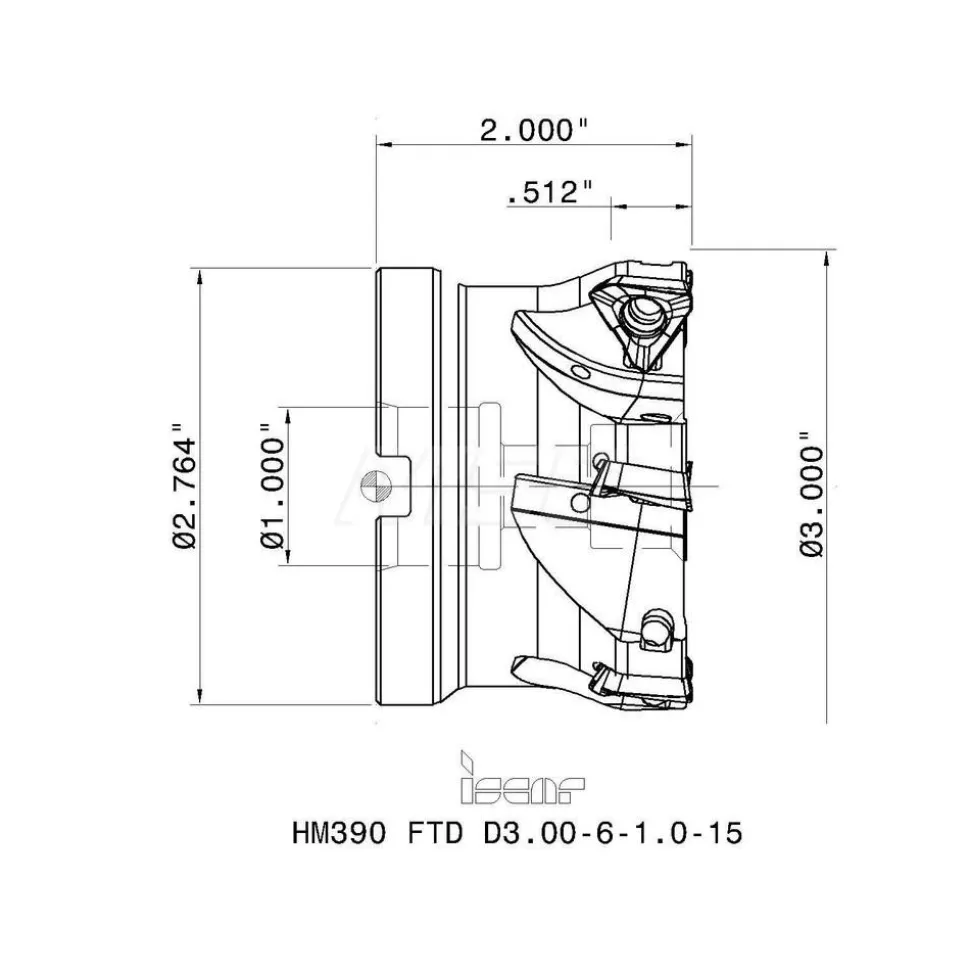

Maximum Cutting Diameter (Inch): 3	Maximum Cutting Diameter (Decimal Inch): 3.0000
Maximum Depth of Cut (Decimal Inch): 0.5120	Arbor Hole Diameter (Inch): 1
Arbor Hole Diameter (Decimal Inch): 1.0000	Compatible Insert Size Code: HM390 TDKT 1505
Cutter Style: HM390 FTD-15	Insert Holding Method: Screw; Clamp
Lead Angle: 0/90	Series: HeliIQMill
Maximum Ramping Angle: 0.90	Overall Height (Decimal Inch): 2.0000
Hub Diameter (Decimal Inch): 2.7600	Standards: ISO
Complete Insert Compatibility: HM390 TDKT 1505	UNSPSC Code: 27112803
Maximum Insert Radius (Decimal Inch): 0.0310	Coolant Through: Yes
Number Of Cutter Inserts: 6	Number Of Flutes: 6
Country of Origin: Israel
Maximum Cutting Diameter (Inch): 3
Maximum Cutting Diameter (Decimal Inch): 3.0000
Maximum Depth of Cut (Decimal Inch): 0.5120
Arbor Hole Diameter (Inch): 1
Arbor Hole Diameter (Decimal Inch): 1.0000
Compatible Insert Size Code: HM390 TDKT 1505
Cutter Style: HM390 FTD-15
Insert Holding Method: Screw; Clamp
Lead Angle: 0/90
Series: HeliIQMill
Maximum Ramping Angle: 0.90
Overall Height (Decimal Inch): 2.0000
Hub Diameter (Decimal Inch): 2.7600
Standards: ISO
Complete Insert Compatibility: HM390 TDKT 1505
UNSPSC Code: 27112803
Maximum Insert Radius (Decimal Inch): 0.0310
Coolant Through: Yes
Number Of Cutter Inserts: 6
Number Of Flutes: 6
Country of Origin: Israel
