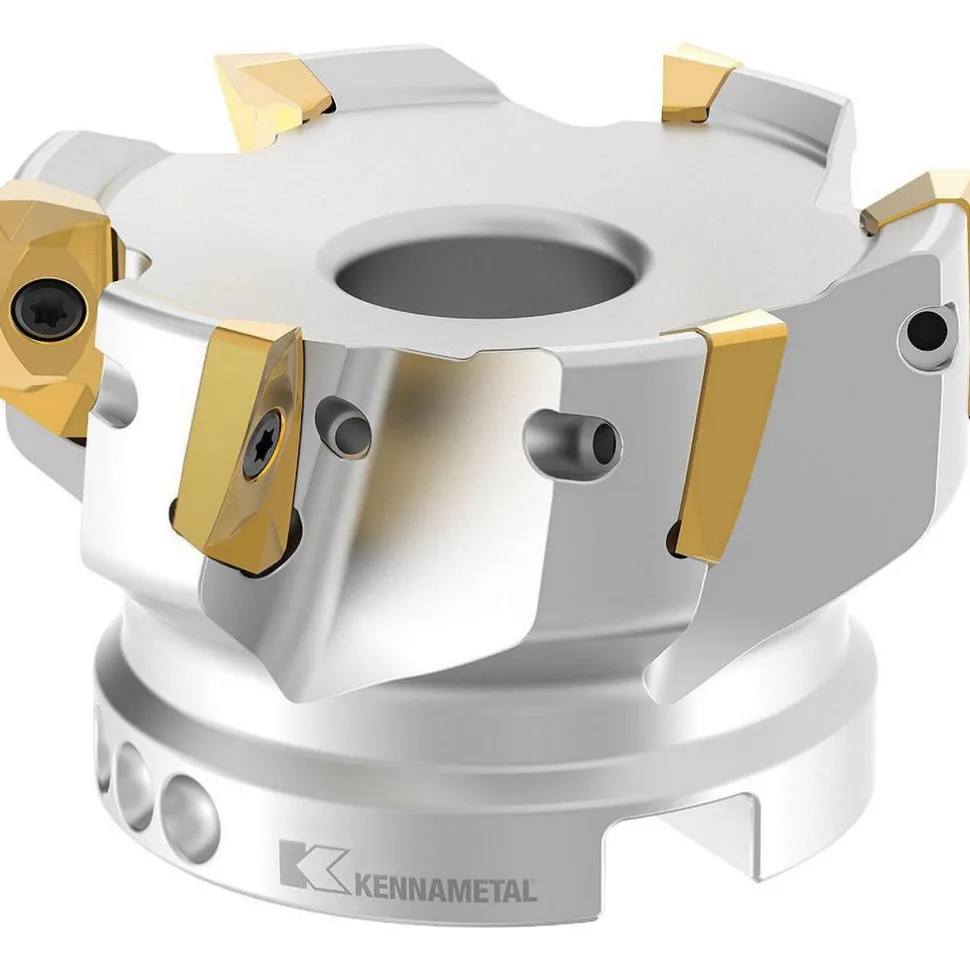

3″ Cut Dia, 1″ Arbor Hole Dia, 14.22mm Max Depth, Indexable Square-Shoulder Face Mill
124,89 $
Specifications
| Maximum Cutting Diameter (Inch): 3 | Maximum Cutting Diameter (Decimal Inch): 3.0000 |
| Maximum Cutting Diameter (mm): 76.20 | Maximum Depth of Cut (mm): 14.22 |
| Maximum Depth of Cut (Decimal Inch): 0.5600 | Arbor Hole Diameter (Inch): 1 |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | Compatible Insert Size Code: EP14..; EC14.. |
| Cutting Direction: Right Hand | Insert Holding Method: Screw |
| Lead Angle: 0/90 | Series: Mill 1-14 |
| Maximum Body Diameter (Decimal Inch): 2.9460 | Overall Height (mm): 44.45 |
| Overall Height (Inch): 1-3/4 | Overall Height (Decimal Inch): 1.7500 |
| Keyway Width (Decimal Inch): 0.3900 | Hub Diameter (mm): 55.56 |
| Hub Diameter (Decimal Inch): 2.1874 | Coolant Hole Diameter (Decimal Inch): 3.0000 |
| UNSPSC Code: 27112803 | Coolant Through: Yes |
| Number Of Cutter Inserts: 8 | Number Of Flutes: 8 |
| Maximum Cutting Diameter (Inch): 3 | |
| Maximum Cutting Diameter (Decimal Inch): 3.0000 | |
| Maximum Cutting Diameter (mm): 76.20 | |
| Maximum Depth of Cut (mm): 14.22 | |
| Maximum Depth of Cut (Decimal Inch): 0.5600 | |
| Arbor Hole Diameter (Inch): 1 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Compatible Insert Size Code: EP14..; EC14.. | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Lead Angle: 0/90 | |
| Series: Mill 1-14 | |
| Maximum Body Diameter (Decimal Inch): 2.9460 | |
| Overall Height (mm): 44.45 | |
| Overall Height (Inch): 1-3/4 | |
| Overall Height (Decimal Inch): 1.7500 | |
| Keyway Width (Decimal Inch): 0.3900 | |
| Hub Diameter (mm): 55.56 | |
| Hub Diameter (Decimal Inch): 2.1874 | |
| Coolant Hole Diameter (Decimal Inch): 3.0000 | |
| UNSPSC Code: 27112803 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 8 | |
| Number Of Flutes: 8 |
| MSC# | 01231042 |
| Mfr# | 2624275 |
| Big Book# | 711 |
