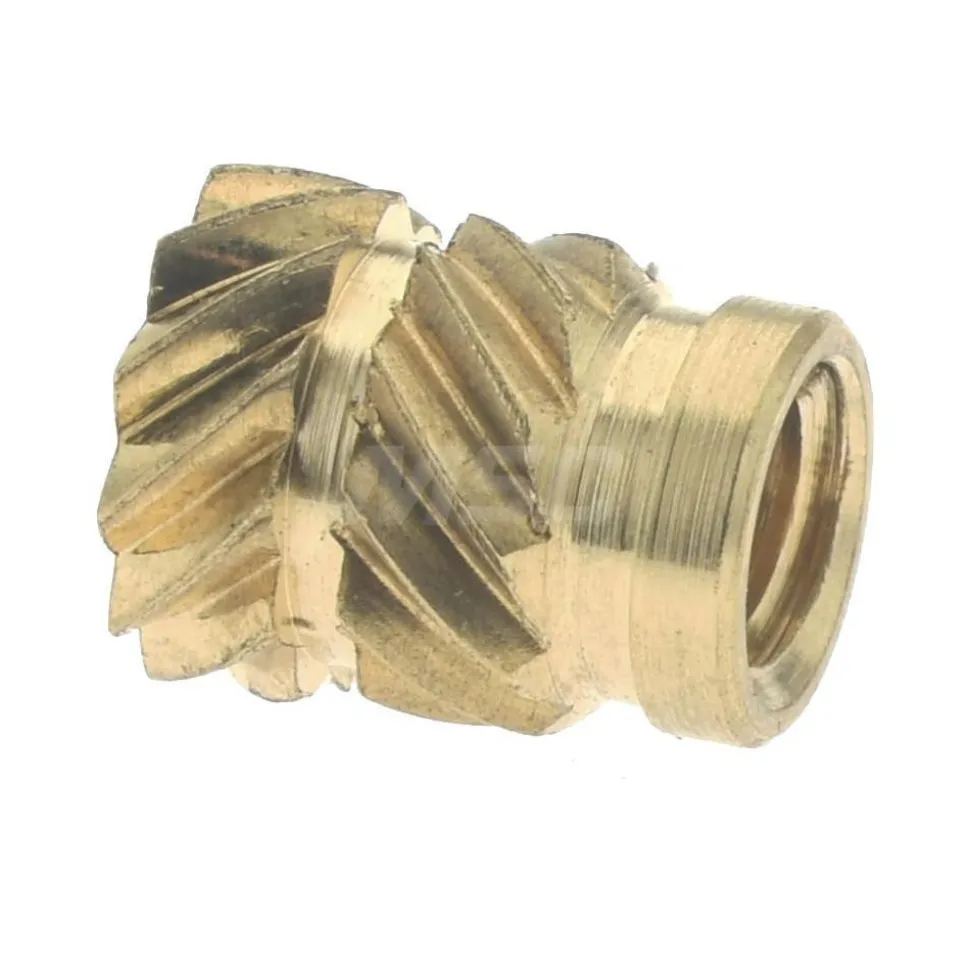

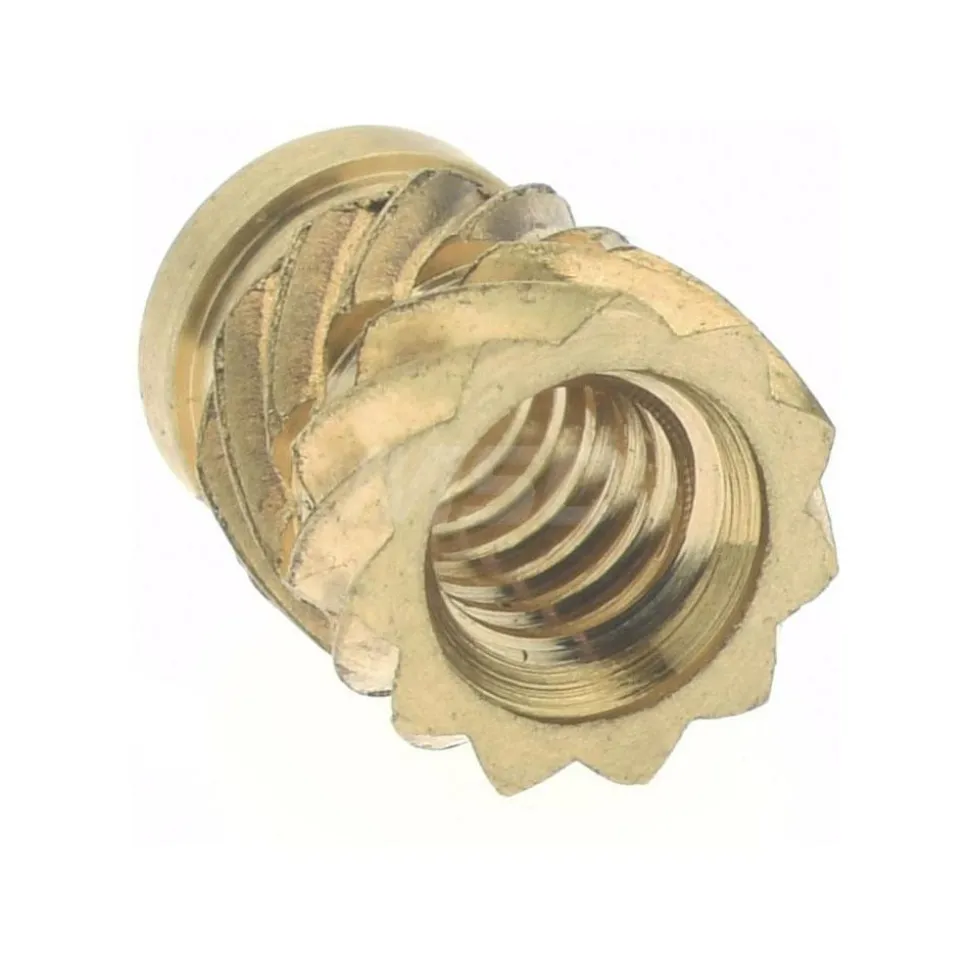

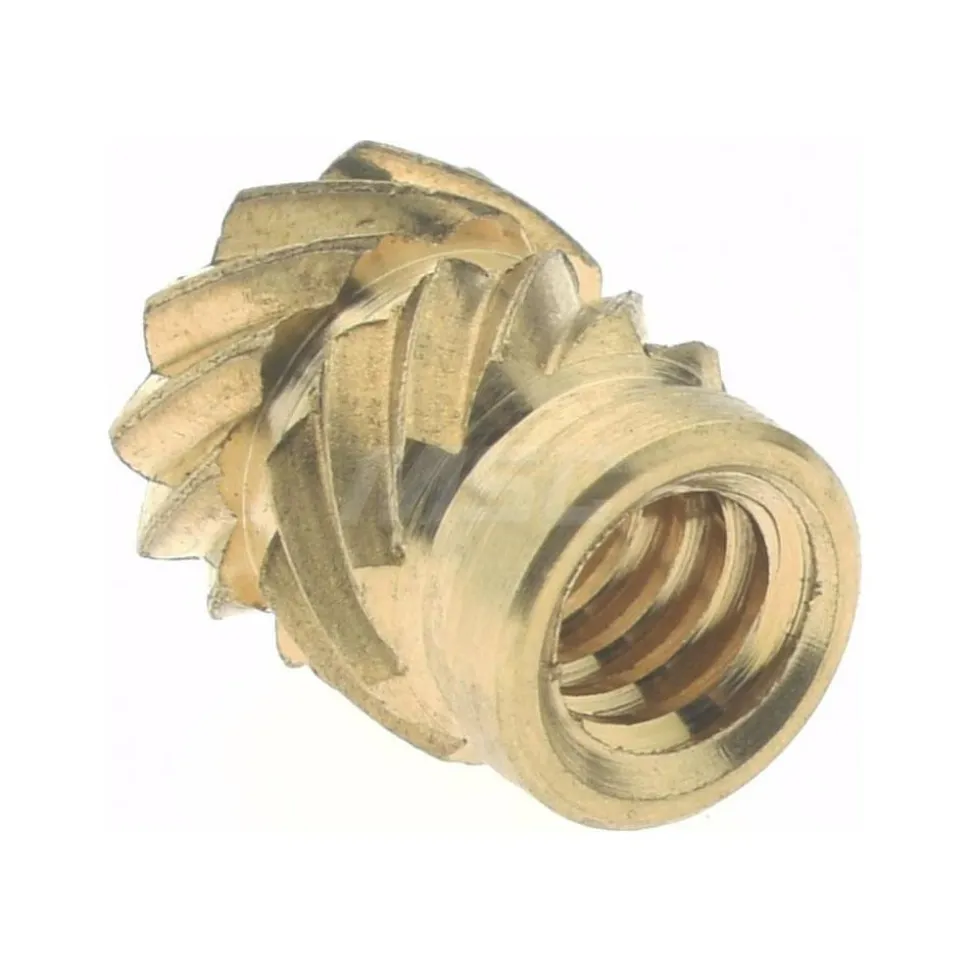

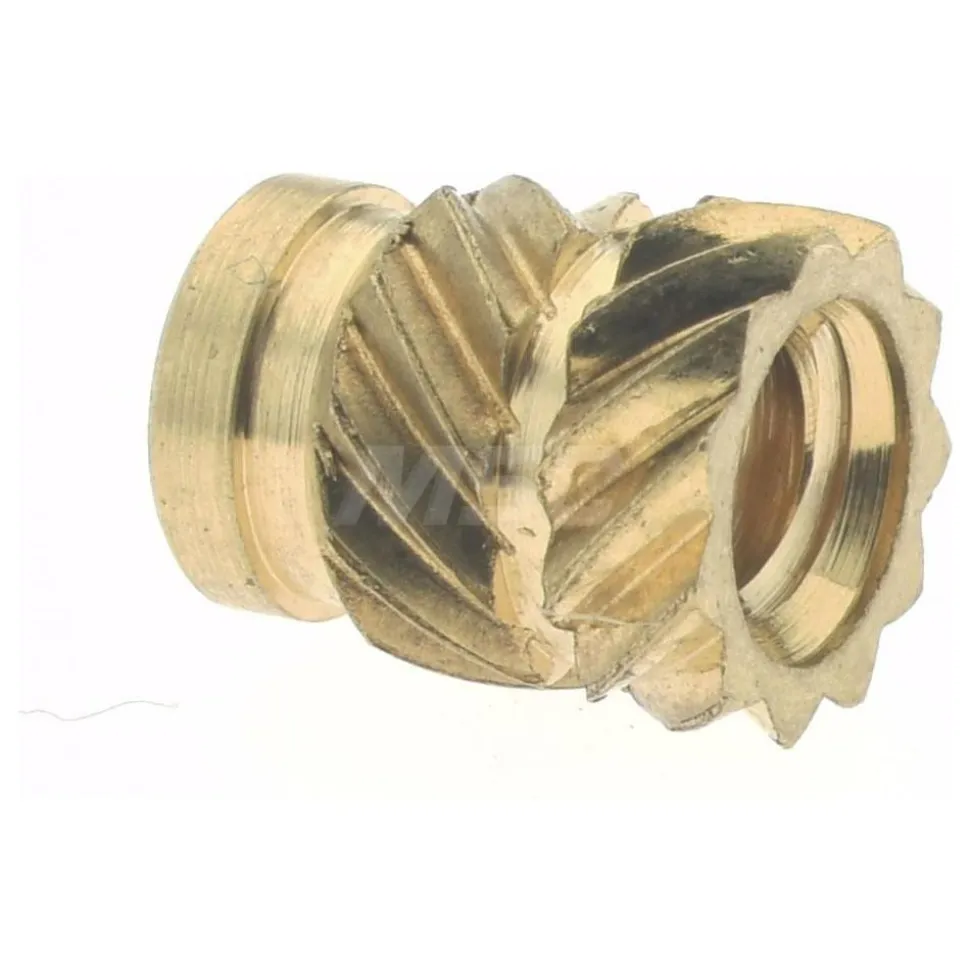

#4 40 UNC, 0.181" Dia, Brass Unheaded Heat Installed Threaded Insert

#4 40 UNC, 0.181″ Dia, Brass Unheaded Heat Installed Threaded Insert

16,99 $

SKU: SKUPHrOOkFh0N Categories: Fasteners, Shop All Products, Threaded Inserts, Rivet Nuts & Weld Nuts Tag: E-Z LOK Brand: E-Z LOK

Description
Reviews (0)

Specifications

Product Type: Unheaded	Material: Brass
Thread Size: #4-40	Hole Diameter (Decimal Inch): 0.1570 in
Pilot Diameter: 0.159 in	Overall Length: 0.226 in
Insert Diameter: 0.181 in	Thread Size (Inch): #4-40
Overall Length (Decimal Inch): 0.2260	Minimum Wall Thickness: 0.063
Pilot Diameter (Decimal Inch): 0.1590	Minimum Wall Thickness (Decimal Inch): 0.0630
Insert Diameter (Decimal Inch): 0.1810	Package Quantity: 100
Head Diameter (Decimal Inch): 0.1810	Thread Standard: UNC
UNSPSC Code: 31162802	Country of Origin: Taiwan
Product Type: Unheaded
Material: Brass
Thread Size: #4-40
Hole Diameter (Decimal Inch): 0.1570 in
Pilot Diameter: 0.159 in
Overall Length: 0.226 in
Insert Diameter: 0.181 in
Thread Size (Inch): #4-40
Overall Length (Decimal Inch): 0.2260
Minimum Wall Thickness: 0.063
Pilot Diameter (Decimal Inch): 0.1590
Minimum Wall Thickness (Decimal Inch): 0.0630
Insert Diameter (Decimal Inch): 0.1810
Package Quantity: 100
Head Diameter (Decimal Inch): 0.1810
Thread Standard: UNC
UNSPSC Code: 31162802
Country of Origin: Taiwan
