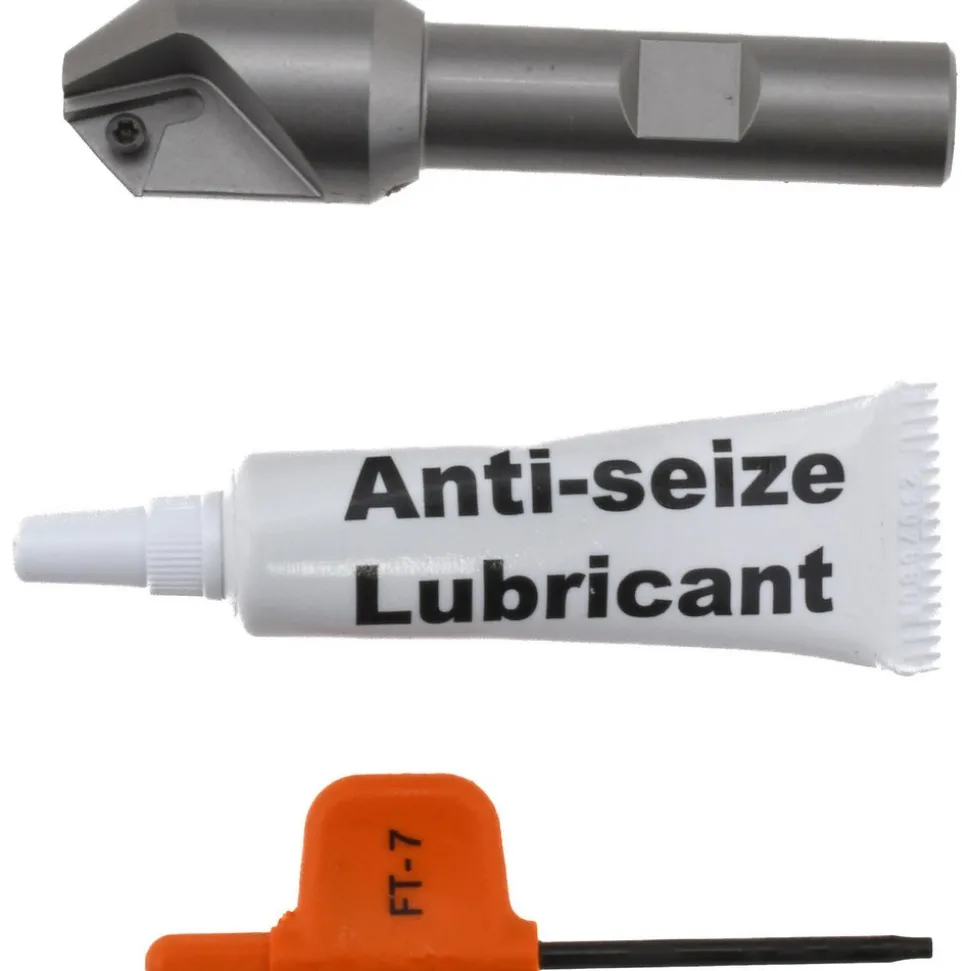

45° Lead Angle, 0.27″ to 0.83″ Cut Dia, Indexable & Chamfer End Mill
120,99 $
Specifications
| Minimum Cutting Diameter (Decimal Inch): 0.2700 | Maximum Cutting Diameter (Decimal Inch): 0.8300 |
| Maximum Depth of Cut (Decimal Inch): 0.3000 | Maximum Depth of Cut (mm): 7.62 |
| Shank Diameter (mm): 12.70 | Number Of Cutter Inserts: 1 |
| Insert Style: TPGM 2151 | Insert Holding Method: Screw |
| Overall Length (Decimal Inch): 3.0000 | Toolholder Style: KIPR |
| Maximum RPM: 33600 | Head Length (Decimal Inch): 1.2200 |
| Shank Length (Decimal Inch): 1.7799 | Shank Length (mm): 45.21 |
| UNSPSC Code: 23291600 | Number Of Flutes: 1 |
| Coolant Through: No | Shank Type: Weldon Flat |
| Minimum Cutting Diameter (Decimal Inch): 0.2700 | |
| Maximum Cutting Diameter (Decimal Inch): 0.8300 | |
| Maximum Depth of Cut (Decimal Inch): 0.3000 | |
| Maximum Depth of Cut (mm): 7.62 | |
| Shank Diameter (mm): 12.70 | |
| Number Of Cutter Inserts: 1 | |
| Insert Style: TPGM 2151 | |
| Insert Holding Method: Screw | |
| Overall Length (Decimal Inch): 3.0000 | |
| Toolholder Style: KIPR | |
| Maximum RPM: 33600 | |
| Head Length (Decimal Inch): 1.2200 | |
| Shank Length (Decimal Inch): 1.7799 | |
| Shank Length (mm): 45.21 | |
| UNSPSC Code: 23291600 | |
| Number Of Flutes: 1 | |
| Coolant Through: No | |
| Shank Type: Weldon Flat |
| MSC# | 00691352 |
| Mfr# | 1023610 |
| Big Book# | 716 |
