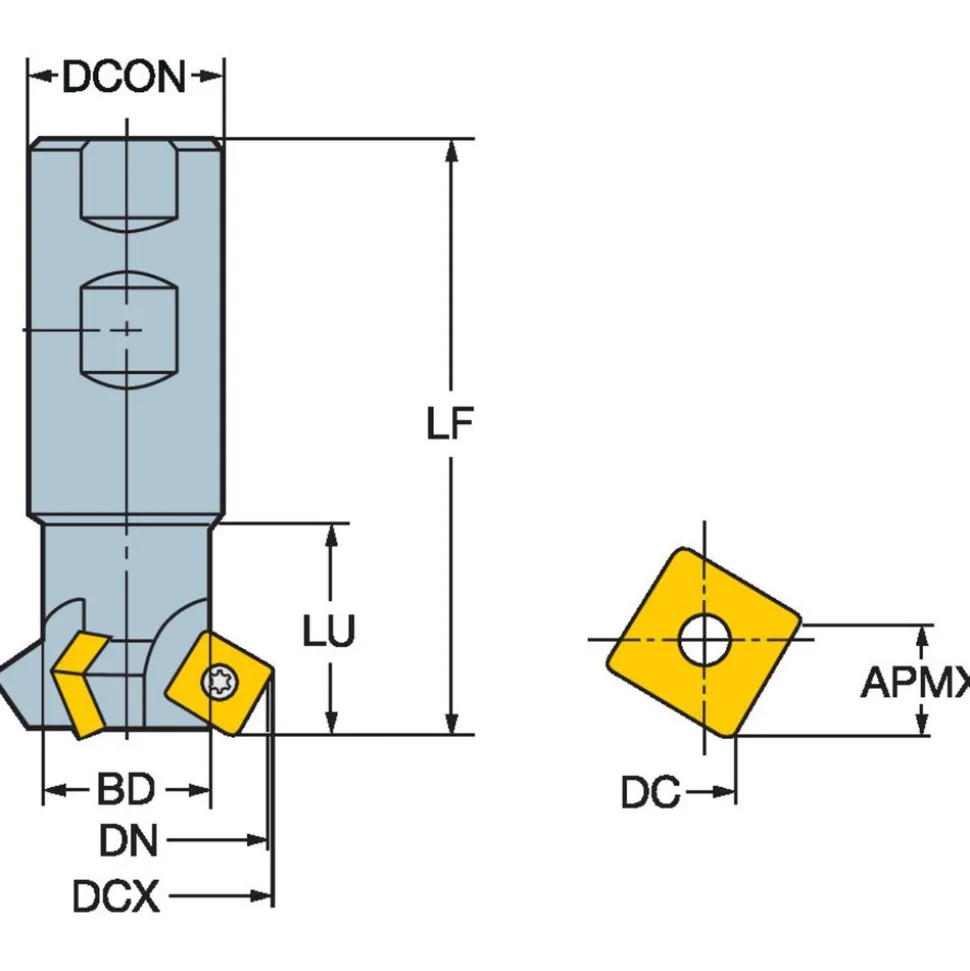

45° Lead Angle, 0.461″ to 1.068″ Cut Dia, 19.05mm Shank Dia, Indexable & Chamfer End Mill
Original price was: 430,00 $.122,99 $Current price is: 122,99 $.
Specifications
| Cutting Diameter (Decimal Inch): 0.4610 | Minimum Cutting Diameter (Decimal Inch): 0.4610 |
| Cutting Diameter (mm): 11.70 | Minimum Cutting Diameter (mm): 11.70 |
| Maximum Cutting Diameter (mm): 27.13 | Maximum Cutting Diameter (Decimal Inch): 1.0680 |
| Maximum Depth of Cut (Decimal Inch): 0.3090 | Maximum Depth of Cut (mm): 7.86 |
| Shank Diameter (mm): 19.05 | Number Of Cutter Inserts: 1 |
| Insert Holding Method: Screw | Overall Length (Decimal Inch): 4.5280 |
| Overall Length (mm): 115.00 | Series: U-Max |
| Toolholder Style: RA215.64..Mxx | Maximum RPM: 20845 |
| Head Length (Decimal Inch): 1.0910 | Head Length (mm): 27.70 |
| Shank Length (Decimal Inch): 3.4370 | Shank Length (mm): 87.30 |
| Complete Insert Compatibility: SPMT 12 04 08 | UNSPSC Code: 23291600 |
| Number Of Flutes: 1 | End Mill Material: Steel |
| Coolant Through: No | Included Angle Degree: 45 |
| Shank Type: Weldon Flat | Country of Origin: UNITED STATES |
| Cutting Diameter (Decimal Inch): 0.4610 | |
| Minimum Cutting Diameter (Decimal Inch): 0.4610 | |
| Cutting Diameter (mm): 11.70 | |
| Minimum Cutting Diameter (mm): 11.70 | |
| Maximum Cutting Diameter (mm): 27.13 | |
| Maximum Cutting Diameter (Decimal Inch): 1.0680 | |
| Maximum Depth of Cut (Decimal Inch): 0.3090 | |
| Maximum Depth of Cut (mm): 7.86 | |
| Shank Diameter (mm): 19.05 | |
| Number Of Cutter Inserts: 1 | |
| Insert Holding Method: Screw | |
| Overall Length (Decimal Inch): 4.5280 | |
| Overall Length (mm): 115.00 | |
| Series: U-Max | |
| Toolholder Style: RA215.64..Mxx | |
| Maximum RPM: 20845 | |
| Head Length (Decimal Inch): 1.0910 | |
| Head Length (mm): 27.70 | |
| Shank Length (Decimal Inch): 3.4370 | |
| Shank Length (mm): 87.30 | |
| Complete Insert Compatibility: SPMT 12 04 08 | |
| UNSPSC Code: 23291600 | |
| Number Of Flutes: 1 | |
| End Mill Material: Steel | |
| Coolant Through: No | |
| Included Angle Degree: 45 | |
| Shank Type: Weldon Flat | |
| Country of Origin: UNITED STATES |
| MSC# | 06178511 |
| Mfr# | 5740208 |
