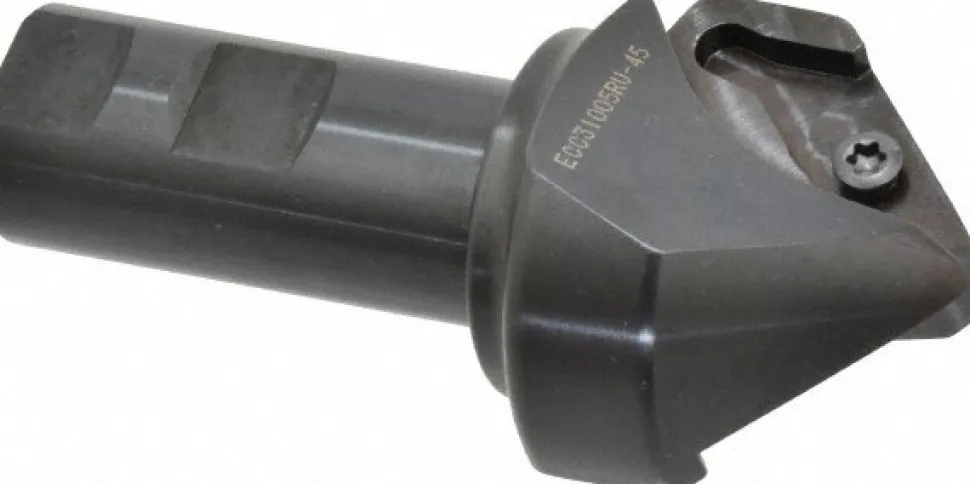

45° Lead Angle, 1.846″ to 2.205″ Cut Dia, Indexable & Chamfer End Mill
Original price was: 490,00 $.122,99 $Current price is: 122,99 $.
Specifications
| Minimum Cutting Diameter (Decimal Inch): 1.8460 | Maximum Cutting Diameter (Decimal Inch): 2.2050 |
| Maximum Depth of Cut (Decimal Inch): 0.8270 | Compatible Insert Size Code: XCET3104 |
| Shank Diameter (Inch): 1 | Shank Diameter (Decimal Inch): 1.0000 |
| Number Of Cutter Inserts: 2 | Cutting Direction: Right Hand |
| Insert Style: XCET | Insert Holding Method: Screw |
| Overall Length (Decimal Inch): 4.2500 | Overall Height (Decimal Inch): 2.2050 |
| Toolholder Style: ECC | Functional Length (Decimal Inch): 4.2500 |
| Maximum Body Diameter (Decimal Inch): 1.0000 | Maximum RPM: 3000 |
| Tool Application: Chamfering | Primary Workpiece Material: Universal |
| Primary Workpiece Material Code: P; K; M | Standards: ISO |
| Head Length (Decimal Inch): 1.9690 | UNSPSC Code: 23291600 |
| Number Of Flutes: 2 | End Mill Material: Solid Carbide |
| Axial Rake Angle (Degrees): -5 to -3 | Radial Rake Angle (Degrees): -15 to -12 |
| Included Angle Degree: 90 | Shank Type: Weldon Flat |
| Country of Origin: Japan | |
| Minimum Cutting Diameter (Decimal Inch): 1.8460 | |
| Maximum Cutting Diameter (Decimal Inch): 2.2050 | |
| Maximum Depth of Cut (Decimal Inch): 0.8270 | |
| Compatible Insert Size Code: XCET3104 | |
| Shank Diameter (Inch): 1 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Number Of Cutter Inserts: 2 | |
| Cutting Direction: Right Hand | |
| Insert Style: XCET | |
| Insert Holding Method: Screw | |
| Overall Length (Decimal Inch): 4.2500 | |
| Overall Height (Decimal Inch): 2.2050 | |
| Toolholder Style: ECC | |
| Functional Length (Decimal Inch): 4.2500 | |
| Maximum Body Diameter (Decimal Inch): 1.0000 | |
| Maximum RPM: 3000 | |
| Tool Application: Chamfering | |
| Primary Workpiece Material: Universal | |
| Primary Workpiece Material Code: P; K; M | |
| Standards: ISO | |
| Head Length (Decimal Inch): 1.9690 | |
| UNSPSC Code: 23291600 | |
| Number Of Flutes: 2 | |
| End Mill Material: Solid Carbide | |
| Axial Rake Angle (Degrees): -5 to -3 | |
| Radial Rake Angle (Degrees): -15 to -12 | |
| Included Angle Degree: 90 | |
| Shank Type: Weldon Flat | |
| Country of Origin: Japan |
| MSC# | 78069820 |
| Mfr# | 6811811 |
| Big Book# | 726 |
