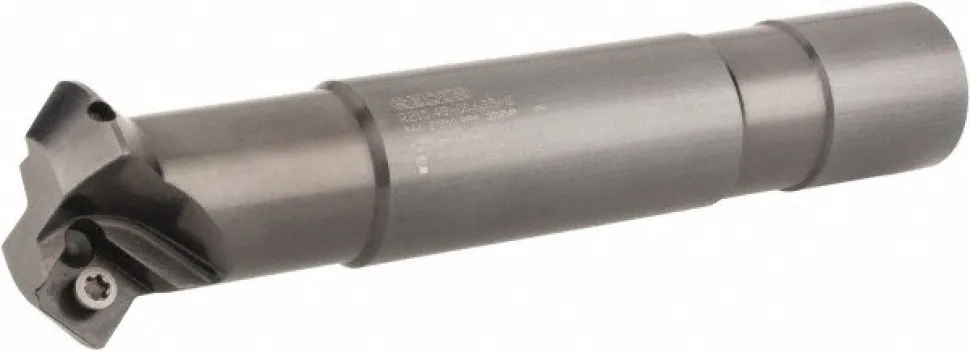

45° Lead Angle, 5/8″ to 1.039″ Cut Dia, 3/4″ Shank Dia, Indexable & Chamfer End Mill
132,89 $
Specifications
| Minimum Cutting Diameter (Inch): 5/8 | Minimum Cutting Diameter (Decimal Inch): 0.6250 |
| Maximum Cutting Diameter (Decimal Inch): 1.0390 | Maximum Depth of Cut (Decimal Inch): 0.2000 |
| Compatible Insert Size Code: SPMX0903 | Shank Diameter (Inch): 3/4 |
| Shank Diameter (Decimal Inch): 0.7500 | Number Of Cutter Inserts: 2 |
| Insert Style: SPMX 0903.. | Insert Holding Method: Screw |
| Overall Length (Decimal Inch): 4.3300 | Series: Milling Normal ISO |
| Toolholder Style: R215; R215.49 | Functional Length (mm): 60.00 |
| Maximum Body Diameter (Decimal Inch): 0.7500 | Maximum RPM: 27200 |
| Tool Application: Chamfering | Shank Length (Decimal Inch): 2.9500 |
| Complete Insert Compatibility: SPMX 090304-75; SPMX 0903AP-75 | UNSPSC Code: 23291600 |
| Number Of Flutes: 2 | Included Angle Degree: 45 |
| Shank Type: Weldon Flat | Country of Origin: India |
| Minimum Cutting Diameter (Inch): 5/8 | |
| Minimum Cutting Diameter (Decimal Inch): 0.6250 | |
| Maximum Cutting Diameter (Decimal Inch): 1.0390 | |
| Maximum Depth of Cut (Decimal Inch): 0.2000 | |
| Compatible Insert Size Code: SPMX0903 | |
| Shank Diameter (Inch): 3/4 | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Number Of Cutter Inserts: 2 | |
| Insert Style: SPMX 0903.. | |
| Insert Holding Method: Screw | |
| Overall Length (Decimal Inch): 4.3300 | |
| Series: Milling Normal ISO | |
| Toolholder Style: R215; R215.49 | |
| Functional Length (mm): 60.00 | |
| Maximum Body Diameter (Decimal Inch): 0.7500 | |
| Maximum RPM: 27200 | |
| Tool Application: Chamfering | |
| Shank Length (Decimal Inch): 2.9500 | |
| Complete Insert Compatibility: SPMX 090304-75; SPMX 0903AP-75 | |
| UNSPSC Code: 23291600 | |
| Number Of Flutes: 2 | |
| Included Angle Degree: 45 | |
| Shank Type: Weldon Flat | |
| Country of Origin: India |
| MSC# | 57042210 |
| Mfr# | 00072168 |
| Big Book# | 676 |
