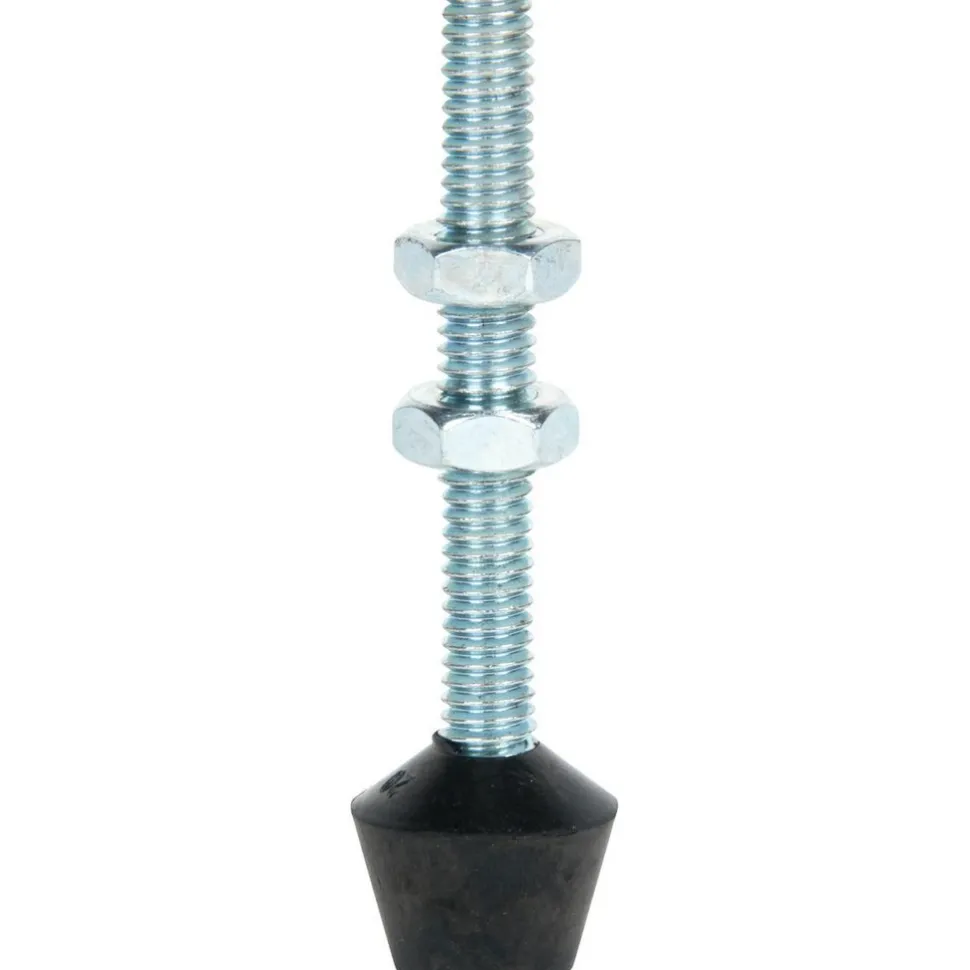

5/16-18 Carbon Steel Cap Tip Clamp Spindle Assembly

2,89 $

Specifications

Application: Toggle Clamps	Spindle Material: Carbon Steel
Thread Size: 5/16-18 in	Thread Length (mm): 2.2900
Overall Length: 76.2000 mm; 3.0000 in	Overall Length (mm): 76.2000 mm; 76.2; 3.0000 in
Overall Length (Inch): 76.2000 mm; 3.0000 in	Tip Cap Hardness: 70-80A
Tip Type: Cap	Tip Surface Diameter (mm): 21.08 mm; 0.83 in
Tip Surface Diameter (Decimal Inch): 0.8300	Tip Maximum Diameter: 13.97 mm; 0.55 in
Nut Height: 4.83 mm; 0.19 in	Minimum Operating Temperature: -22 F
Tip Cap Material: Neoprene	Tip Cap Shape: Flat
Tip Maximum Diameter (Decimal Inch): 0.5500	Nut Height (mm): 4.83
Includes: Jam Nuts	For Use With: Manual Operated Clamps
UNSPSC Code: 31161500	Country of Origin: China
Application: Toggle Clamps
Spindle Material: Carbon Steel
Thread Size: 5/16-18 in
Thread Length (mm): 2.2900
Overall Length: 76.2000 mm; 3.0000 in
Overall Length (mm): 76.2000 mm; 76.2; 3.0000 in
Overall Length (Inch): 76.2000 mm; 3.0000 in
Tip Cap Hardness: 70-80A
Tip Type: Cap
Tip Surface Diameter (mm): 21.08 mm; 0.83 in
Tip Surface Diameter (Decimal Inch): 0.8300
Tip Maximum Diameter: 13.97 mm; 0.55 in
Nut Height: 4.83 mm; 0.19 in
Minimum Operating Temperature: -22 F
Tip Cap Material: Neoprene
Tip Cap Shape: Flat
Tip Maximum Diameter (Decimal Inch): 0.5500
Nut Height (mm): 4.83
Includes: Jam Nuts
For Use With: Manual Operated Clamps
UNSPSC Code: 31161500
Country of Origin: China
