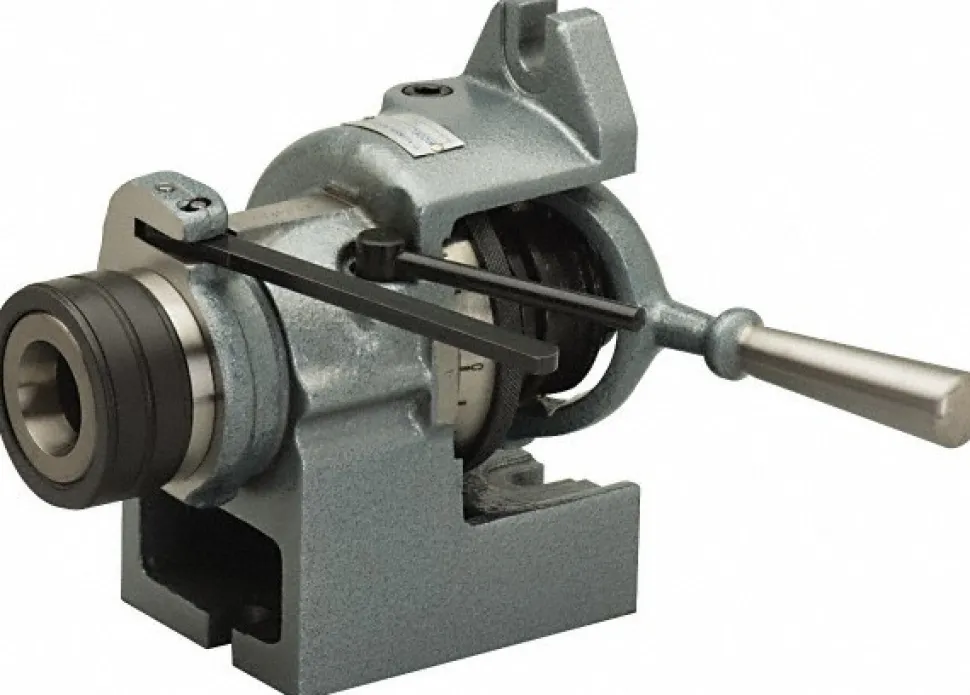

5C Compatible, 24 Increment, Horizontal & Vertical Standard Collet Indexer
140,99 $
Specifications
| Indexer Type: Standard Collet | Orientation Type: Vertical; Horizontal |
| Operation Type: Manual | Number Of Indexing Increments: 24 |
| Collet Series Compatibility: 5C | Spindle Runout (mm): 0.01 |
| Centerline Height (mm): 101.60 | Centerline Height (Inch): 4 |
| Maximum Collet Capacity (Inch): 1-1/8 | Indexing Accuracy (Seconds): 30.00 |
| Squareness – Base to Face (Decimal Inch): 0.000800 | Base Width (mm): 102.11 |
| Base Width (Inch): 4.0200 | Base Depth (mm): 137.92 |
| Base Depth (Decimal Inch): 5.4300 | Overall Height (mm): 197.10 |
| Overall Height (Decimal Inch): 7.7600 | Includes: Collet |
| Concentricity of Spindle (mm): 0.0051 | Concentricity of Spindle (Decimal Inch): 0.0002 |
| UNSPSC Code: 27112808 | |
| Indexer Type: Standard Collet | |
| Orientation Type: Vertical; Horizontal | |
| Operation Type: Manual | |
| Number Of Indexing Increments: 24 | |
| Collet Series Compatibility: 5C | |
| Spindle Runout (mm): 0.01 | |
| Centerline Height (mm): 101.60 | |
| Centerline Height (Inch): 4 | |
| Maximum Collet Capacity (Inch): 1-1/8 | |
| Indexing Accuracy (Seconds): 30.00 | |
| Squareness – Base to Face (Decimal Inch): 0.000800 | |
| Base Width (mm): 102.11 | |
| Base Width (Inch): 4.0200 | |
| Base Depth (mm): 137.92 | |
| Base Depth (Decimal Inch): 5.4300 | |
| Overall Height (mm): 197.10 | |
| Overall Height (Decimal Inch): 7.7600 | |
| Includes: Collet | |
| Concentricity of Spindle (mm): 0.0051 | |
| Concentricity of Spindle (Decimal Inch): 0.0002 | |
| UNSPSC Code: 27112808 |
| MSC# | 09651027 |
| Mfr# | 550-004 |
| Big Book# | 1195 |
