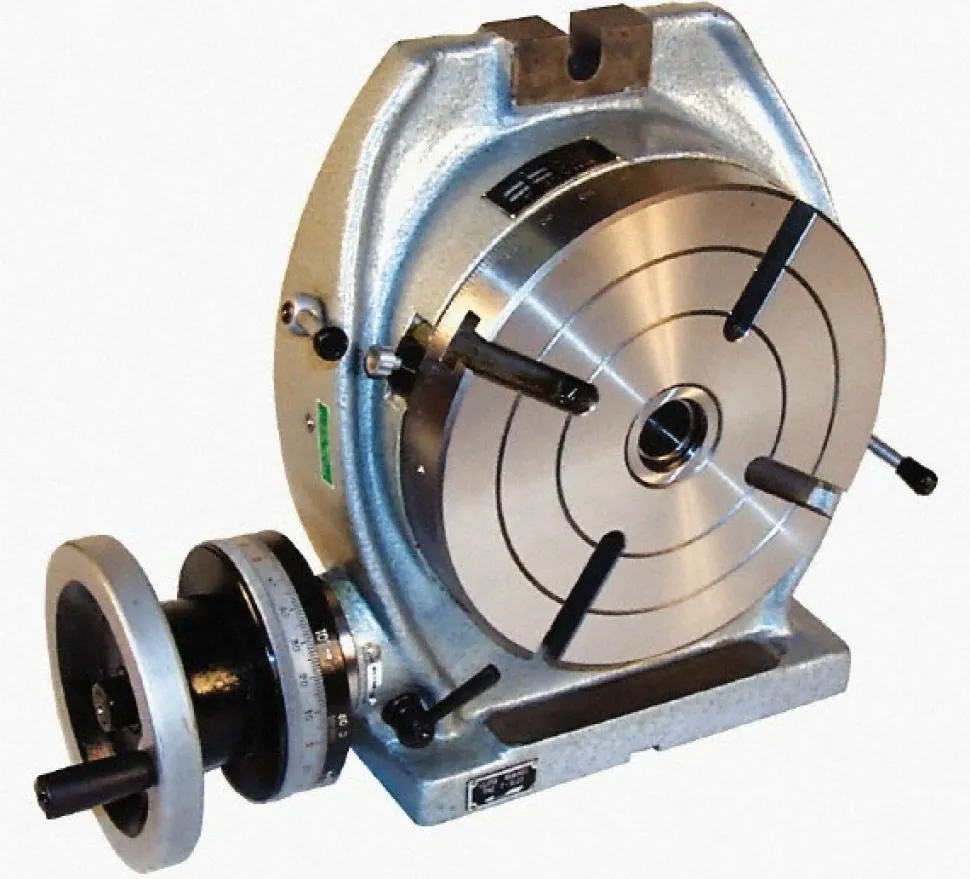

6″ Table Dia, Horizontal & Vertical Rotary Machining Table

Original price was: 918,00 $.Current price is: 136,89 $.

SKU: SKU20JLRFztXw Categories: Clamping, Workholding & Positioning, Shop All Products, Stationary Fixturing Stands & Mounts Tag: Phase II Brand: Phase II

Description
Reviews (0)

Specifications

Setting Position: Vertical; Horizontal	Tilting: No
Table Diameter: 6 in	T-slot Width: 0.39 in
T-Slot Width (Decimal Inch): 0.3900	Centerline Height: 4.92 in
Center Bore Diameter: 0.5 in	Center Hole Concentricity: 8.0E-4 in
Cross-slide: No	Gear Ratio: 1900-01-03T18:01
Indexing Accuracy: 80 s	Flatness Of Surface: 6.0E-4 in
Parallelism – Clamp Surface To Base: 8.0E-4 in	Squareness – Clamp To Angle Face: 4.0E-4 in
Squareness – Clamp To Center Slot: 8.0E-4 in	Base Width: 3.23 in
Overall Height: 13.43 in; 9.53 in	Centerline Height (Inch): 4.92 in
Centerline Height (mm): 4.92 in	Center Taper: 2MT
Squareness – Clamp to Center Slot (Decimal Inch): 0.0008	Squareness – Clamp to Angle Face (Decimal Inch): 0.0004
Flatness of Surface (Decimal Inch): 0.0006	UNSPSC Code: 23242120
Parallelism – Clamp Surface to Base (Decimal Inch): 0.0008	Base Width (mm): 3.23 in
Base Width (Decimal Inch): 3.2300; 3.23 in	Base Length (mm): 7.3200
Overall Height (mm): 13.43 in; 9.53 in	Overall Height (Inch): 13.43 in; 9.53 in
Country of Origin: China
Setting Position: Vertical; Horizontal
Tilting: No
Table Diameter: 6 in
T-slot Width: 0.39 in
T-Slot Width (Decimal Inch): 0.3900
Centerline Height: 4.92 in
Center Bore Diameter: 0.5 in
Center Hole Concentricity: 8.0E-4 in
Cross-slide: No
Gear Ratio: 1900-01-03T18:01
Indexing Accuracy: 80 s
Flatness Of Surface: 6.0E-4 in
Parallelism – Clamp Surface To Base: 8.0E-4 in
Squareness – Clamp To Angle Face: 4.0E-4 in
Squareness – Clamp To Center Slot: 8.0E-4 in
Base Width: 3.23 in
Overall Height: 13.43 in; 9.53 in
Centerline Height (Inch): 4.92 in
Centerline Height (mm): 4.92 in
Center Taper: 2MT
Squareness – Clamp to Center Slot (Decimal Inch): 0.0008
Squareness – Clamp to Angle Face (Decimal Inch): 0.0004
Flatness of Surface (Decimal Inch): 0.0006
UNSPSC Code: 23242120
Parallelism – Clamp Surface to Base (Decimal Inch): 0.0008
Base Width (mm): 3.23 in
Base Width (Decimal Inch): 3.2300; 3.23 in
Base Length (mm): 7.3200
Overall Height (mm): 13.43 in; 9.53 in
Overall Height (Inch): 13.43 in; 9.53 in
Country of Origin: China
