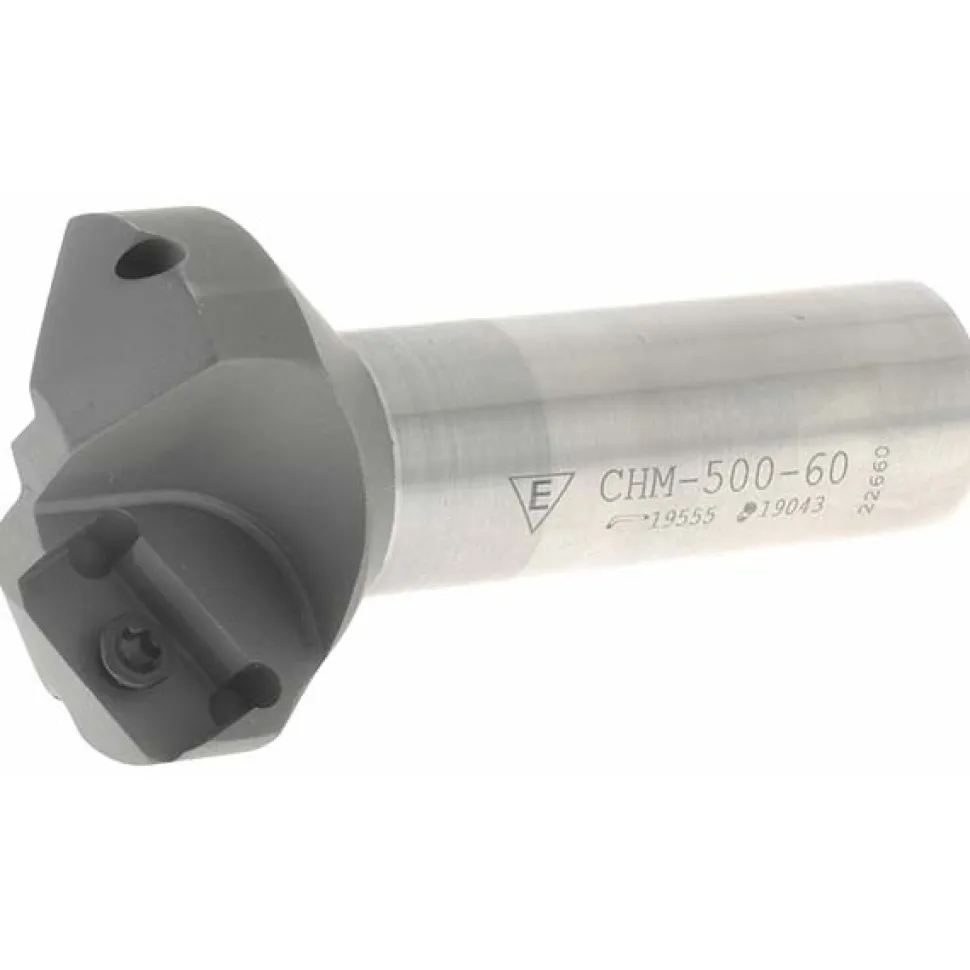

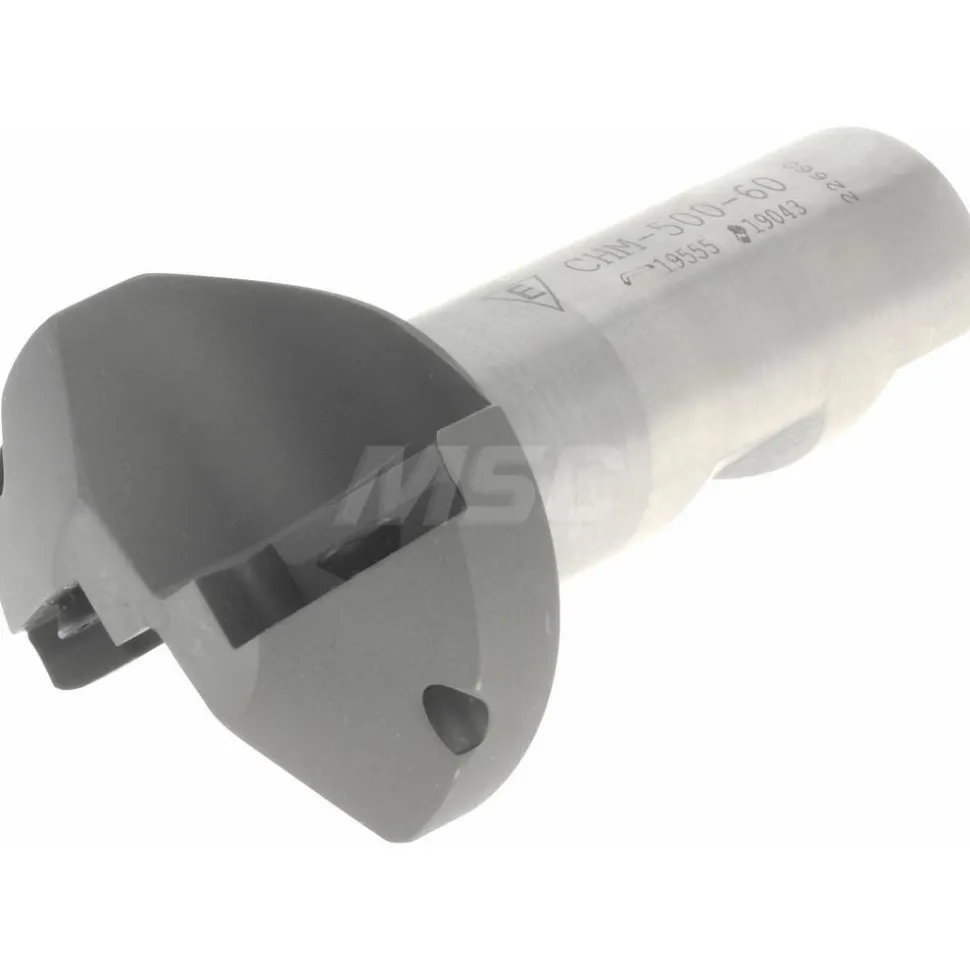

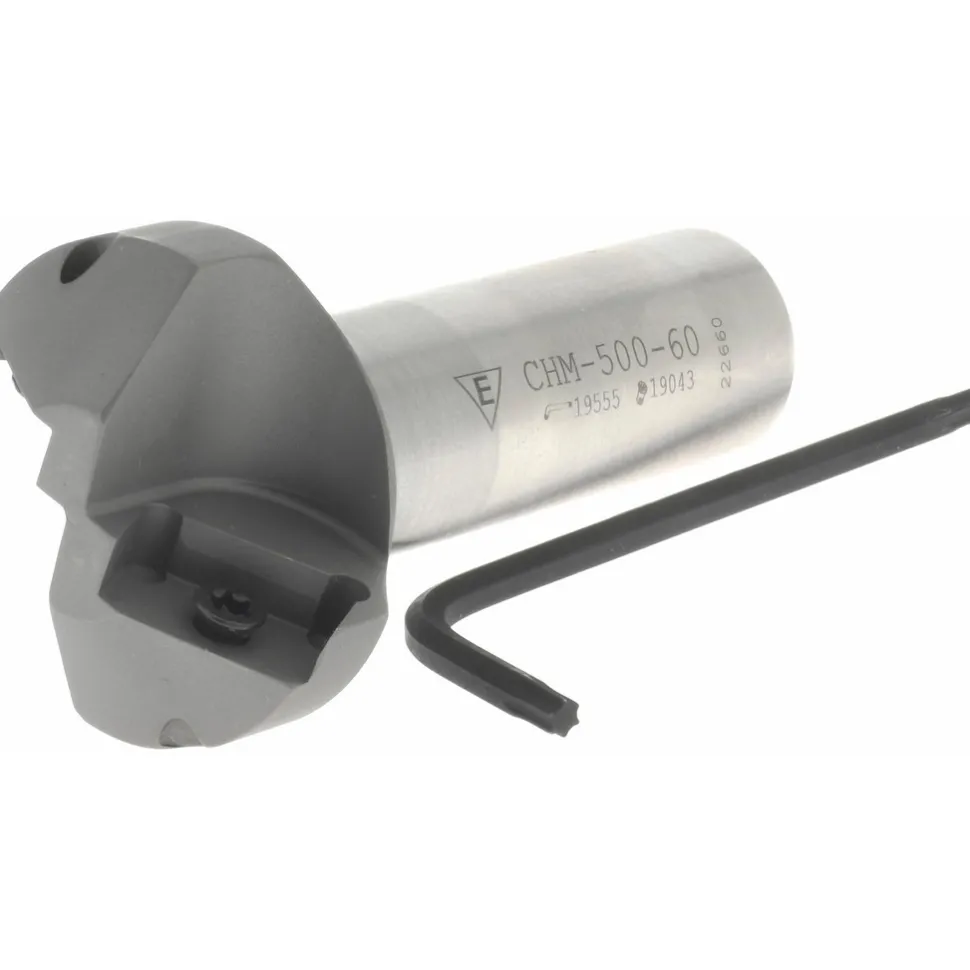

60° Lead Angle, 1/2″ to 1.458″ Cut Dia, 3/4″ Shank Dia, Indexable & Chamfer End Mill
Original price was: 151,00 $.98,99 $Current price is: 98,99 $.
Specifications
| Minimum Cutting Diameter (Inch): 1/2 | Minimum Cutting Diameter (Decimal Inch): 0.5000 |
| Maximum Cutting Diameter (Decimal Inch): 1.4580 | Maximum Depth of Cut (Decimal Inch): 0.2770 |
| Compatible Insert Size Code: APLT 347 | Shank Diameter (Inch): 3/4 |
| Number Of Cutter Inserts: 2 | Insert Style: APLT 347 |
| Insert Holding Method: Screw | Overall Length (Decimal Inch): 3.0000 |
| Toolholder Style: CHM | Maximum Body Diameter (Decimal Inch): 0.7500 |
| Head Length (Decimal Inch): 0.9300 | UNSPSC Code: 23291600 |
| Number Of Flutes: 2 | Included Angle Degree: 120 |
| Shank Type: Weldon Flat | Country of Origin: UNITED STATES |
| Minimum Cutting Diameter (Inch): 1/2 | |
| Minimum Cutting Diameter (Decimal Inch): 0.5000 | |
| Maximum Cutting Diameter (Decimal Inch): 1.4580 | |
| Maximum Depth of Cut (Decimal Inch): 0.2770 | |
| Compatible Insert Size Code: APLT 347 | |
| Shank Diameter (Inch): 3/4 | |
| Number Of Cutter Inserts: 2 | |
| Insert Style: APLT 347 | |
| Insert Holding Method: Screw | |
| Overall Length (Decimal Inch): 3.0000 | |
| Toolholder Style: CHM | |
| Maximum Body Diameter (Decimal Inch): 0.7500 | |
| Head Length (Decimal Inch): 0.9300 | |
| UNSPSC Code: 23291600 | |
| Number Of Flutes: 2 | |
| Included Angle Degree: 120 | |
| Shank Type: Weldon Flat | |
| Country of Origin: UNITED STATES |
| MSC# | 00306522 |
| Mfr# | 01267 |
| Big Book# | 730 |
