Sale!

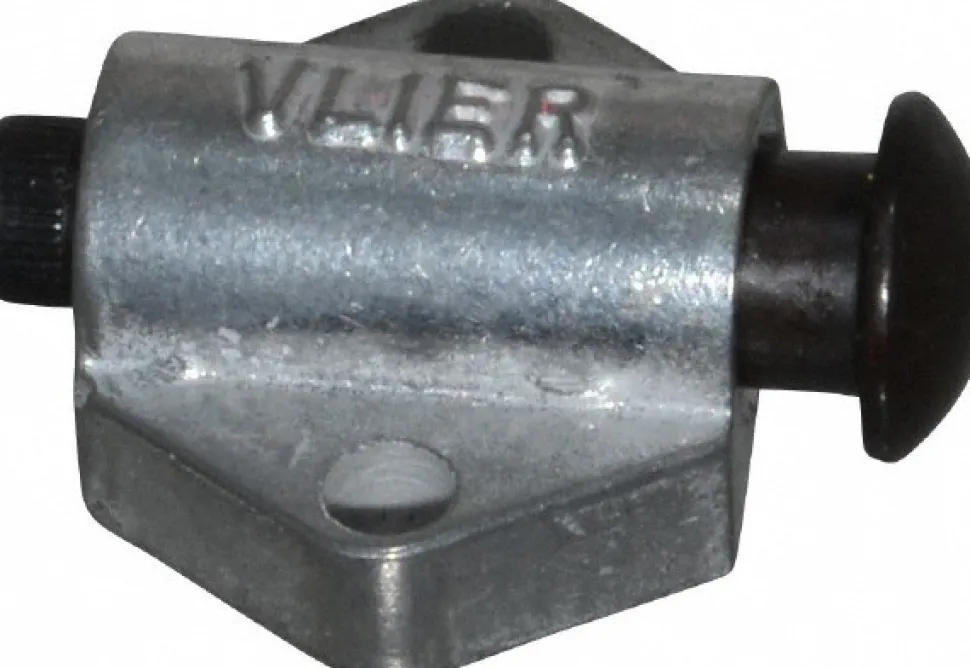

7/8″ Base Width, 1/8″ Stroke Len, 3/8″ Stop Head OD, 21/32″ Btw Mt Hole Ctrs, 19/32″ Btw Mt Hole & Edge, Round Spring Locating Stop
Original price was: 6,00 $.4,99 $Current price is: 4,99 $.
Specifications
| Stop Head Outside Diameter (Inch): 0.375 in | Stop Head Outside Diameter (Decimal Inch): 0.3750 |
| Stroke Length: 0.13 in | Stroke Length (Inch): 1/8 |
| Base Width: 0.875 in | Body Length: 0.688 in |
| Base Width (Inch): 0.875 in | Body Length (Inch): 0.688 in; 11/16 |
| Distance Between Mount Hole To Edge: 0.593 in | Initial End Force: 5.13 lb |
| Distance Between Mount Hole Centers (Inch): 0.6560 in; 21/32 | Distance Between Mount Hole Centers (Decimal Inch): 0.6560 |
| Final End Force: 14.9 lb | Distance Between Mount Hole & Edge (Decimal Inch): 0.5930 |
| Body Width: 0.875 in | Mounting Slot Length: 0.136 in |
| Mounting Slot Width: 0.136 in | Middle End Force (Lb.): 10.00 |
| Body Width (Decimal Inch): 0.8750 | Mounting Slot Width (Inch): 0.136 in |
| Base Thickness (Inch): 0.2188 in | Body Material: Aluminum |
| Stop Material: Steel | PSC Code: 3419 |
| UNSPSC Code: 31162900 | Country of Origin: UNITED STATES |
| Stop Head Outside Diameter (Inch): 0.375 in | |
| Stop Head Outside Diameter (Decimal Inch): 0.3750 | |
| Stroke Length: 0.13 in | |
| Stroke Length (Inch): 1/8 | |
| Base Width: 0.875 in | |
| Body Length: 0.688 in | |
| Base Width (Inch): 0.875 in | |
| Body Length (Inch): 0.688 in; 11/16 | |
| Distance Between Mount Hole To Edge: 0.593 in | |
| Initial End Force: 5.13 lb | |
| Distance Between Mount Hole Centers (Inch): 0.6560 in; 21/32 | |
| Distance Between Mount Hole Centers (Decimal Inch): 0.6560 | |
| Final End Force: 14.9 lb | |
| Distance Between Mount Hole & Edge (Decimal Inch): 0.5930 | |
| Body Width: 0.875 in | |
| Mounting Slot Length: 0.136 in | |
| Mounting Slot Width: 0.136 in | |
| Middle End Force (Lb.): 10.00 | |
| Body Width (Decimal Inch): 0.8750 | |
| Mounting Slot Width (Inch): 0.136 in | |
| Base Thickness (Inch): 0.2188 in | |
| Body Material: Aluminum | |
| Stop Material: Steel | |
| PSC Code: 3419 | |
| UNSPSC Code: 31162900 | |
| Country of Origin: UNITED STATES |
| MSC# | 06461925 |
| Mfr# | SS88 |
| Big Book# | 1376 |
