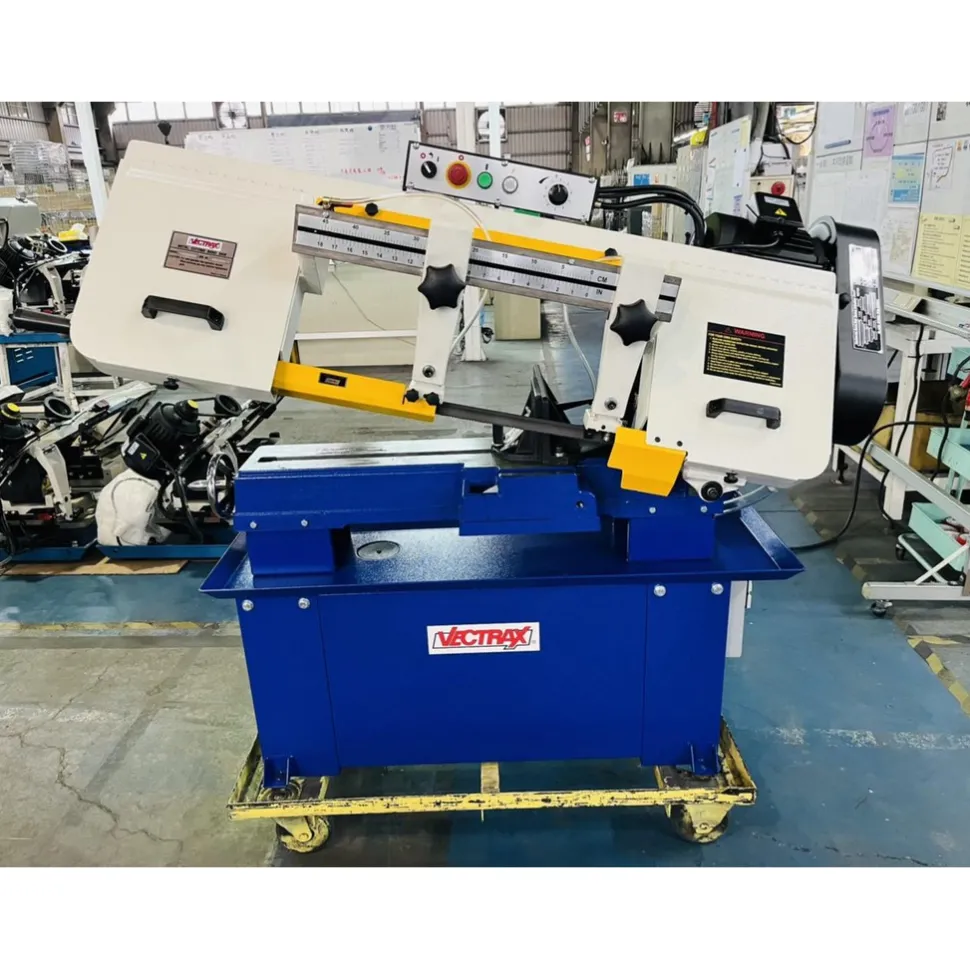

9 x 16″ Manual Horizontal Bandsaw: Step Pulley

126,89 $

SKU: SKUKAtZZdPhIM Categories: Machinery, Saw Machines, Shop All Products Tag: Rong Fu Brand: Rong Fu

Description
Reviews (0)

Specifications

Machine Style: Manual	Drive Type: Step Pulley
Angle of Rotation: 45	Maximum Capacity (Rectangular) (Inch): 9 x 16
Maximum Capacity (Rounds) (Inch): 9.0000	Round Cutting Capacity – Horizontal at 90 Degrees: 9 in
Minimum Blade Speed: 29 m/min	Maximum Blade Speed: 115 m/min
Phase: Single	Horsepower: 1.50
Voltage: 110V	Maximum Miter Cut Angle: 45
Maximum Cutting Diameter: 10.0000 in	Blade Length (mm): 2910.00
Blade Width: 1 in; 25.4 mm	Blade Width (Decimal Inch): 1.0000
Blade Thickness (Decimal Inch): 0.0350	Base Depth (Decimal Inch): 62.2000
Blade Guide Type: Carbide	Blade Brush Included: Yes
Base Width (Inch): 21.6000	Coolant System: Yes
Features: Quick-Positioning Vise; Easy-Access; Handwheel Blade Tensioner; Precision-Groundcast Iron Table; Sliding Cutter Depth Gauge; Centralized Control Panel; Magnetic Safety Switch; 10L Coolant System; Emergency Stop Button; Heavy-Duty; One-Piece Saw Bow; Adjustable Blade Guides; Hydraulic Downfeed	Standards: CSA; CUS Certified; CE Certified
Angular Cuts at 45 Degrees (Decimal Inch): 9 (Round); 8 x 9-1/2 (Rectangular)	Angular Cuts at 45 Degrees (mm): 229 (Round); 203 x 241 (Rectangular)
Blade Speeds (SFPM): 114;196;288;377	UNSPSC Code: 23231100
Country of Origin: Taiwan
Machine Style: Manual
Drive Type: Step Pulley
Angle of Rotation: 45
Maximum Capacity (Rectangular) (Inch): 9 x 16
Maximum Capacity (Rounds) (Inch): 9.0000
Round Cutting Capacity – Horizontal at 90 Degrees: 9 in
Minimum Blade Speed: 29 m/min
Maximum Blade Speed: 115 m/min
Phase: Single
Horsepower: 1.50
Voltage: 110V
Maximum Miter Cut Angle: 45
Maximum Cutting Diameter: 10.0000 in
Blade Length (mm): 2910.00
Blade Width: 1 in; 25.4 mm
Blade Width (Decimal Inch): 1.0000
Blade Thickness (Decimal Inch): 0.0350
Base Depth (Decimal Inch): 62.2000
Blade Guide Type: Carbide
Blade Brush Included: Yes
Base Width (Inch): 21.6000
Coolant System: Yes
Features: Quick-Positioning Vise; Easy-Access; Handwheel Blade Tensioner; Precision-Groundcast Iron Table; Sliding Cutter Depth Gauge; Centralized Control Panel; Magnetic Safety Switch; 10L Coolant System; Emergency Stop Button; Heavy-Duty; One-Piece Saw Bow; Adjustable Blade Guides; Hydraulic Downfeed
Standards: CSA; CUS Certified; CE Certified
Angular Cuts at 45 Degrees (Decimal Inch): 9 (Round); 8 x 9-1/2 (Rectangular)
Angular Cuts at 45 Degrees (mm): 229 (Round); 203 x 241 (Rectangular)
Blade Speeds (SFPM): 114;196;288;377
UNSPSC Code: 23231100
Country of Origin: Taiwan
