Sale!

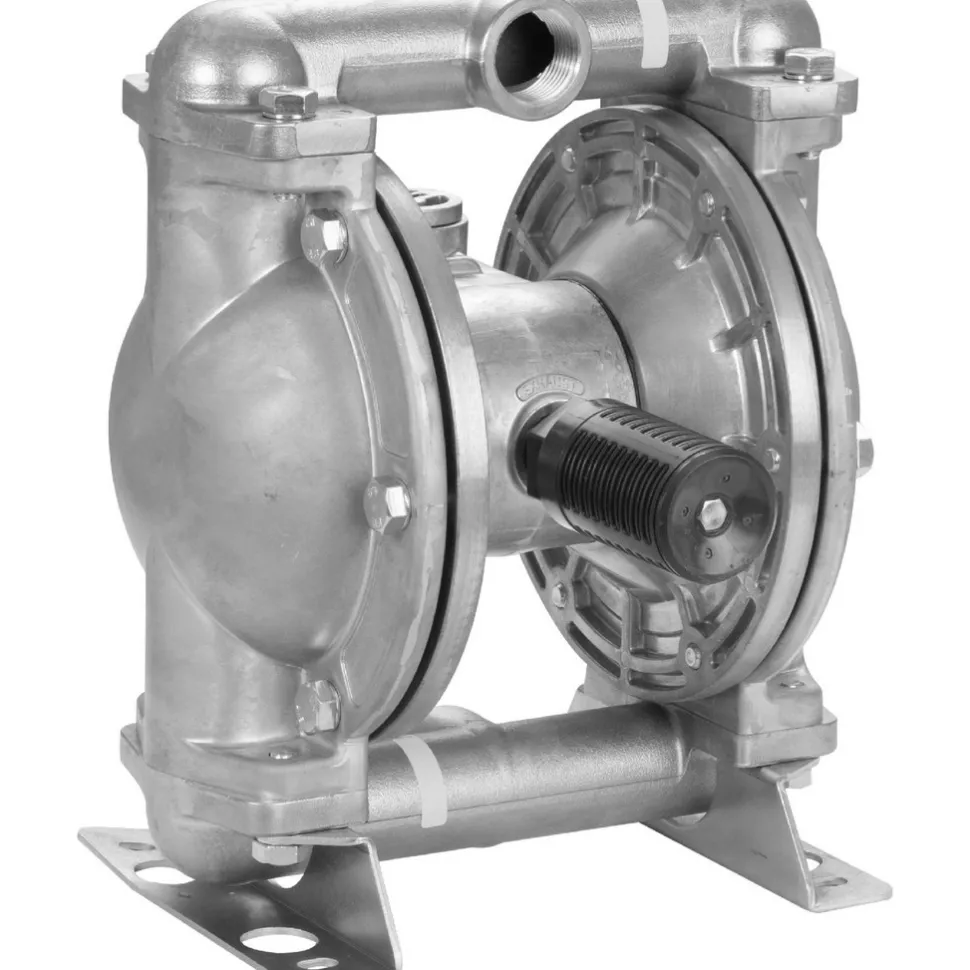

Air Operated Double Diaphragm Pump for Waste Oil Handling – 1″
Original price was: 1 151,00 $.134,99 $Current price is: 134,99 $.
Specifications
| Maximum Flow Rate: 37.0 | Maximum Flow Rate (Gpm – 2 Decimals): 37.00 |
| Pump Type: Air Operated Pump; Diaphragm Pump | Maximum Working Pressure (PSI – 3 Decimals): 100.000 |
| Maximum Working Pressure: 100.000 | Maximum Particle Size: .125 |
| Housing Material: Aluminum | Thread Type: NPT |
| Inlet Size: 1 | Inlet/Outlet NPT: 1 |
| Cubic Feet Per Minute: 31.8 | Diaphragm Material: Hytrel |
| Ball Material: TPEE | Check Seat Material: Buna-N |
| Port Size: 1 | Port Type: Female |
| Body Material: Aluminum | Length (Decimal Inch – 4 Decimals): 10.0400 |
| Height (Decimal Inch): 12.4400 | Maximum Temperature (F) ( – 0 Decimals): 176.000 |
| Maximum Solid Size (Inch): 1/8 | Air Inlet Size (Inch): 3/8 |
| Width (Decimal Inch – 4 Decimals): 8.2700 | Contents: 1pc Double Diaphragm Pump with Instruction Manual |
| Maximum Cubic Feet Per Minute (CFM): 31.80 | UNSPSC Code: 40151548 |
| Country of Origin: India | |
| Maximum Flow Rate: 37.0 | |
| Maximum Flow Rate (Gpm – 2 Decimals): 37.00 | |
| Pump Type: Air Operated Pump; Diaphragm Pump | |
| Maximum Working Pressure (PSI – 3 Decimals): 100.000 | |
| Maximum Working Pressure: 100.000 | |
| Maximum Particle Size: .125 | |
| Housing Material: Aluminum | |
| Thread Type: NPT | |
| Inlet Size: 1 | |
| Inlet/Outlet NPT: 1 | |
| Cubic Feet Per Minute: 31.8 | |
| Diaphragm Material: Hytrel | |
| Ball Material: TPEE | |
| Check Seat Material: Buna-N | |
| Port Size: 1 | |
| Port Type: Female | |
| Body Material: Aluminum | |
| Length (Decimal Inch – 4 Decimals): 10.0400 | |
| Height (Decimal Inch): 12.4400 | |
| Maximum Temperature (F) ( – 0 Decimals): 176.000 | |
| Maximum Solid Size (Inch): 1/8 | |
| Air Inlet Size (Inch): 3/8 | |
| Width (Decimal Inch – 4 Decimals): 8.2700 | |
| Contents: 1pc Double Diaphragm Pump with Instruction Manual | |
| Maximum Cubic Feet Per Minute (CFM): 31.80 | |
| UNSPSC Code: 40151548 | |
| Country of Origin: India |
| MSC# | 96668074 |
| Mfr# | AODD/25/BAH/N |
