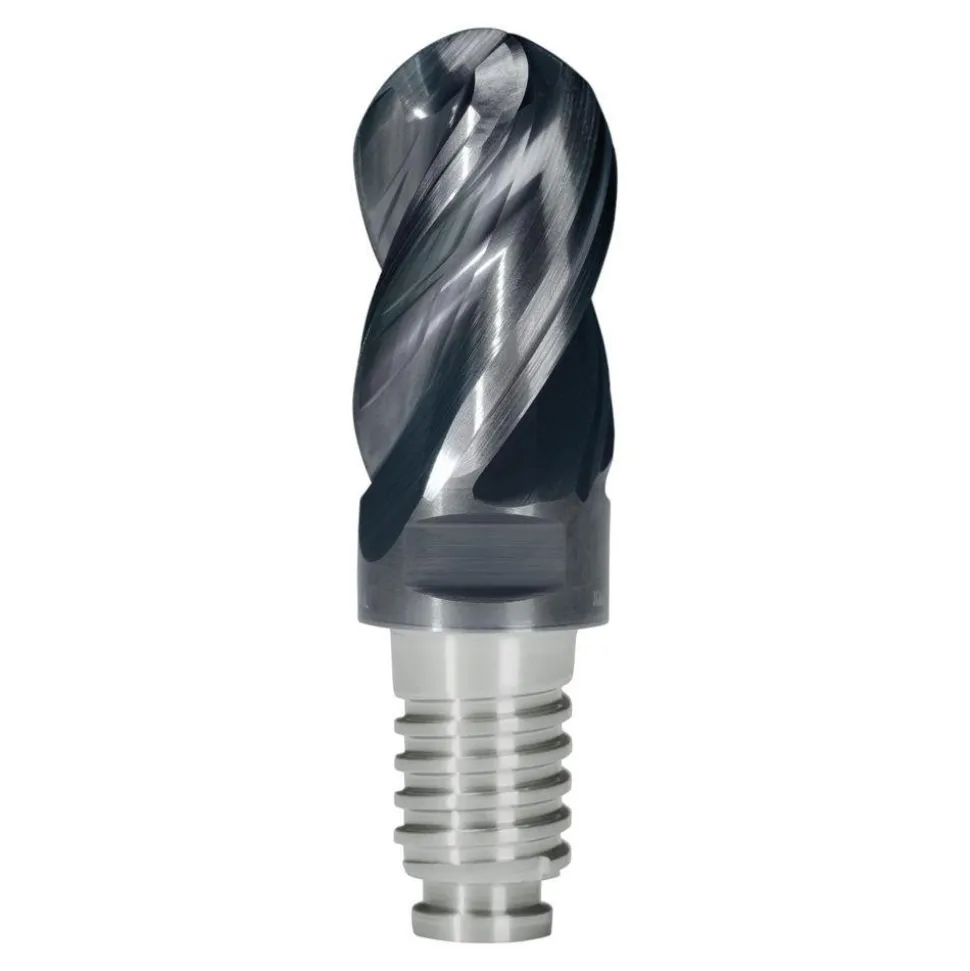

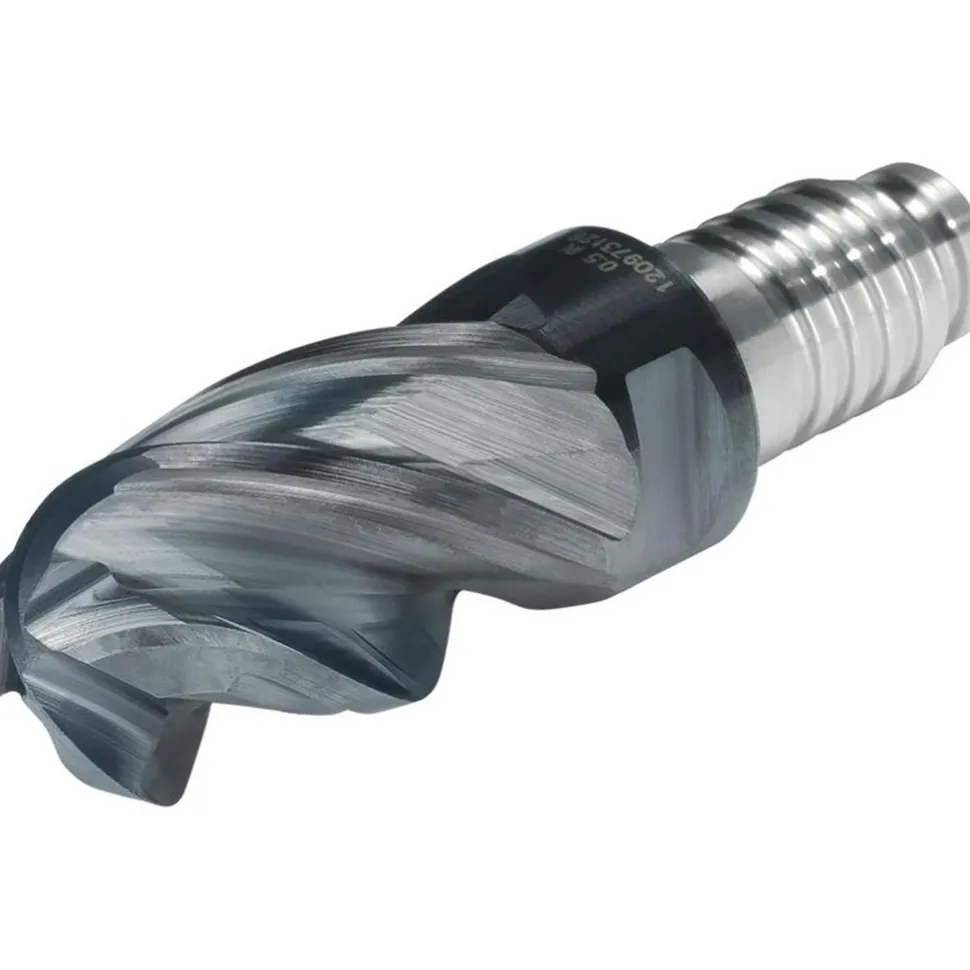

Ball End Mill Heads: Mill Diameter (mm): 19.05; Mill Diameter (Decimal Inch): 0.7500; Length of Cut (mm): 28.58; Length of Cut (Inch): 1-1/8
140,89 $
Specifications
| Mill Diameter (mm): 19.05 | Mill Diameter (Decimal Inch): 0.7500 |
| Length of Cut (mm): 28.58 | Length of Cut (Inch): 1-1/8 |
| Length Of Cut (Decimal Inch – 4 Decimals): 1.1250 | Connection Type: Duo-Lock 20 |
| Overall Length (Decimal Inch): 2.6299 | Overall Length (mm): 66.80 |
| Material: Carbide | Cutting Direction: Right Hand |
| Flute Direction: Right Hand | Flute Type: Variable; Helical Flute |
| Helix Angle: 36 | Helix Style: Variable |
| Material Grade: Carbide | Maximum Helix Angle: 45 |
| Nose Radius (Decimal Inch): 0.3750 | Series/List: Duo-Lock Harvi I TE |
| Undercutting: No | Number Of Flutes: 4 |
| Mill Diameter (Fractional Inch): 3/4 | Finish Coating: AlTiN |
| UNSPSC Code: 27112803 | |
| Mill Diameter (mm): 19.05 | |
| Mill Diameter (Decimal Inch): 0.7500 | |
| Length of Cut (mm): 28.58 | |
| Length of Cut (Inch): 1-1/8 | |
| Length Of Cut (Decimal Inch – 4 Decimals): 1.1250 | |
| Connection Type: Duo-Lock 20 | |
| Overall Length (Decimal Inch): 2.6299 | |
| Overall Length (mm): 66.80 | |
| Material: Carbide | |
| Cutting Direction: Right Hand | |
| Flute Direction: Right Hand | |
| Flute Type: Variable; Helical Flute | |
| Helix Angle: 36 | |
| Helix Style: Variable | |
| Material Grade: Carbide | |
| Maximum Helix Angle: 45 | |
| Nose Radius (Decimal Inch): 0.3750 | |
| Series/List: Duo-Lock Harvi I TE | |
| Undercutting: No | |
| Number Of Flutes: 4 | |
| Mill Diameter (Fractional Inch): 3/4 | |
| Finish Coating: AlTiN | |
| UNSPSC Code: 27112803 |
| MSC# | 84772854 |
| Mfr# | 7136716 |
