Sale!

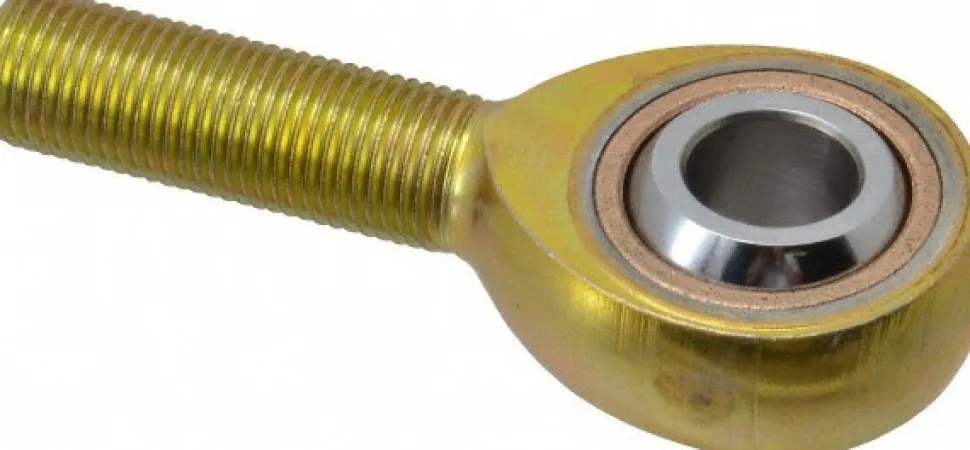

Ball Joint Linkage Spherical Rod End: 1/2-20″ Shank Thread, 1/2″ Rod ID, 1-5/16″ Rod OD, 1-1/2″ Shank Length, 6,700 lb Static Load Capacity
Original price was: 11,00 $.8,89 $Current price is: 8,89 $.
Specifications
| Rod End Type: Ball Joint Linkage | Style: Plain Male Rod End |
| Maximum Outside Diameter (Inch): 1-5/16 | Maximum Static Load Capacity: 6700.0 |
| Width (Inch): 5/8 | Thread Size: 1/2-20 |
| Shank Length (Inch): 1-1/2 | Shank Length (Decimal Inch): 1.5000 |
| Housing Material: Carbon Steel | Gender: Male |
| Thread Direction: Right Hand | Bore Diameter (Inch): 1/2 |
| Bore Diameter (Decimal Inch): 0.5000 | Static Load Capacity: 6700.00 |
| Raceway Material: Bronze | Ball Material: Steel |
| Maximum Ball Swivel: 12 | Thread Length (Decimal Inch): 1.5000 |
| Thread Length (Inch): 1-1/2 | Lubricant Type: Oil |
| Coating/Finish: Zinc | UNSPSC Code: 31171508 |
| Rod End Type: Ball Joint Linkage | |
| Style: Plain Male Rod End | |
| Maximum Outside Diameter (Inch): 1-5/16 | |
| Maximum Static Load Capacity: 6700.0 | |
| Width (Inch): 5/8 | |
| Thread Size: 1/2-20 | |
| Shank Length (Inch): 1-1/2 | |
| Shank Length (Decimal Inch): 1.5000 | |
| Housing Material: Carbon Steel | |
| Gender: Male | |
| Thread Direction: Right Hand | |
| Bore Diameter (Inch): 1/2 | |
| Bore Diameter (Decimal Inch): 0.5000 | |
| Static Load Capacity: 6700.00 | |
| Raceway Material: Bronze | |
| Ball Material: Steel | |
| Maximum Ball Swivel: 12 | |
| Thread Length (Decimal Inch): 1.5000 | |
| Thread Length (Inch): 1-1/2 | |
| Lubricant Type: Oil | |
| Coating/Finish: Zinc | |
| UNSPSC Code: 31171508 |
| MSC# | 35398023 |
| Mfr# | HM 8 |
| Big Book# | 3813 |
Be the first to review “Ball Joint Linkage Spherical Rod End: 1/2-20″ Shank Thread, 1/2″ Rod ID, 1-5/16″ Rod OD, 1-1/2″ Shank Length, 6,700 lb Static Load Capacity”
