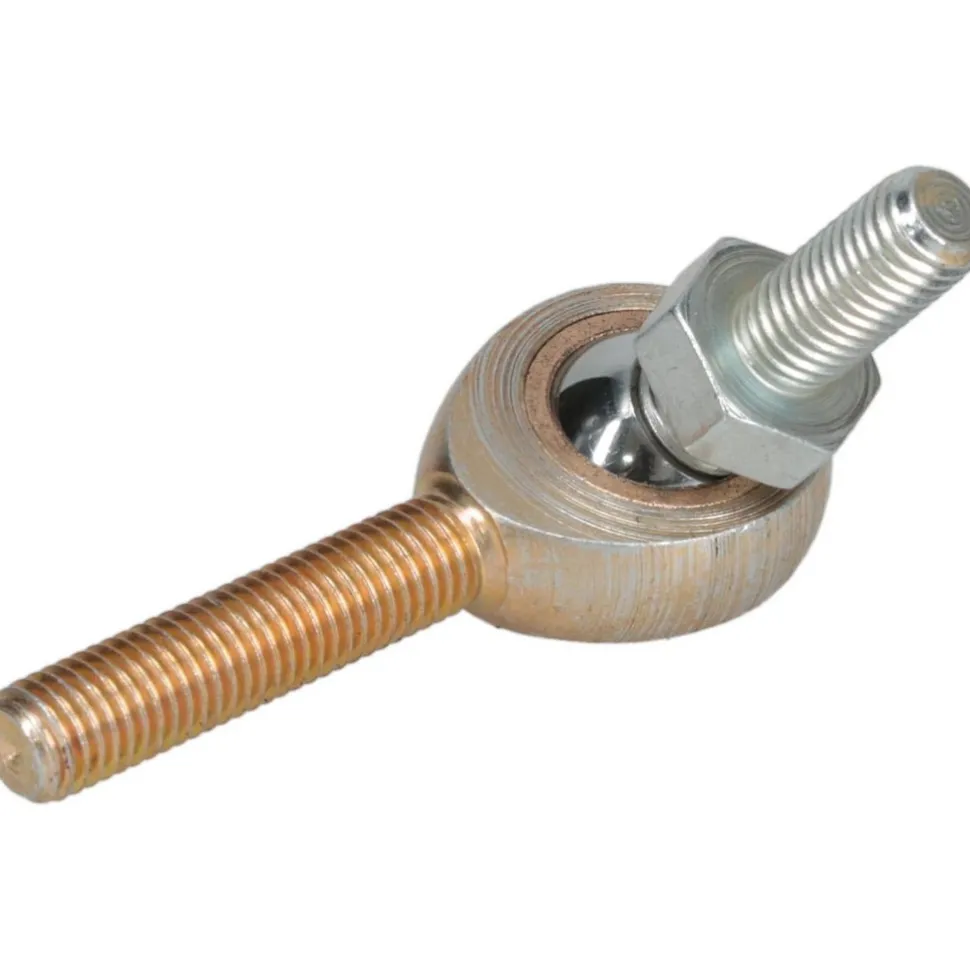

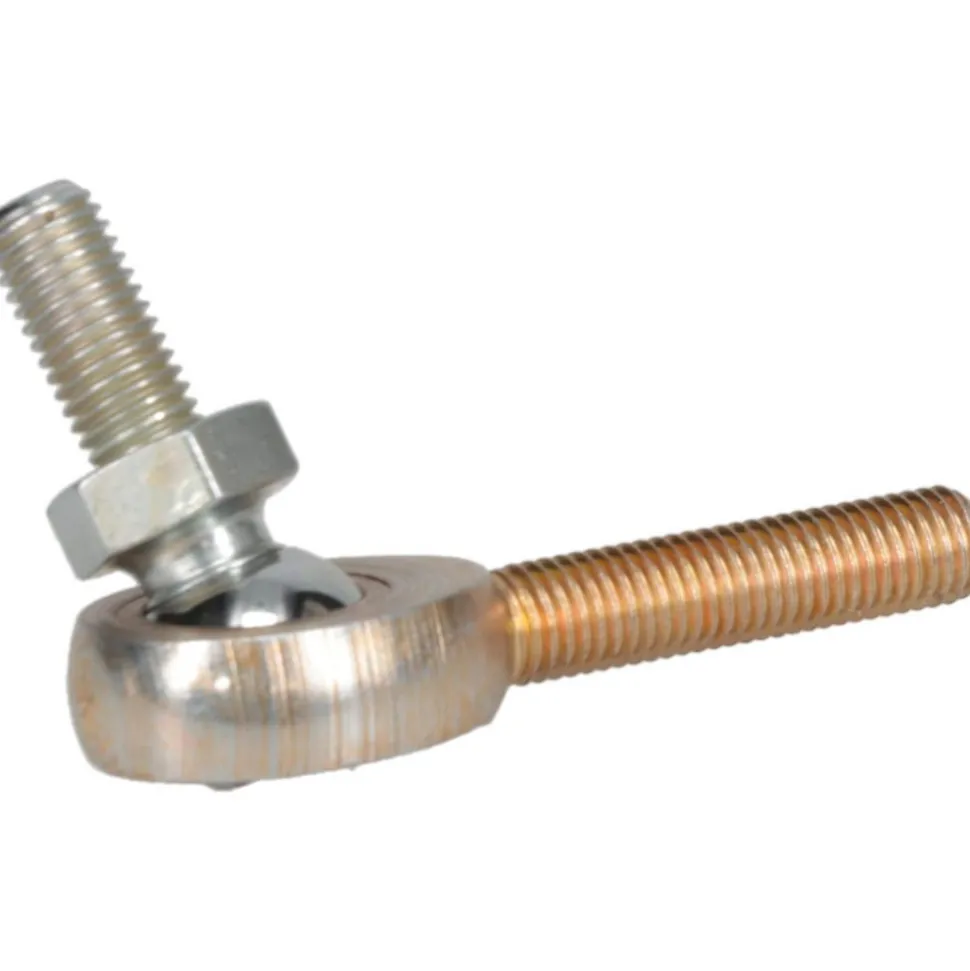

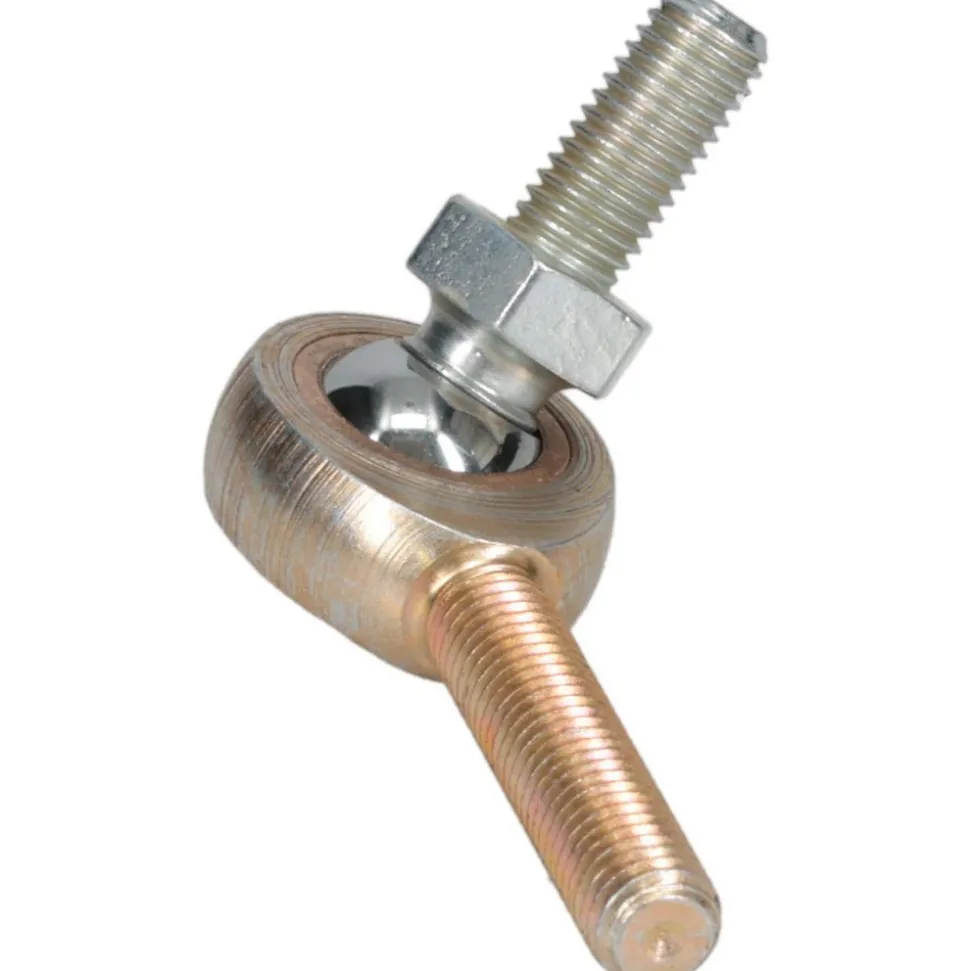

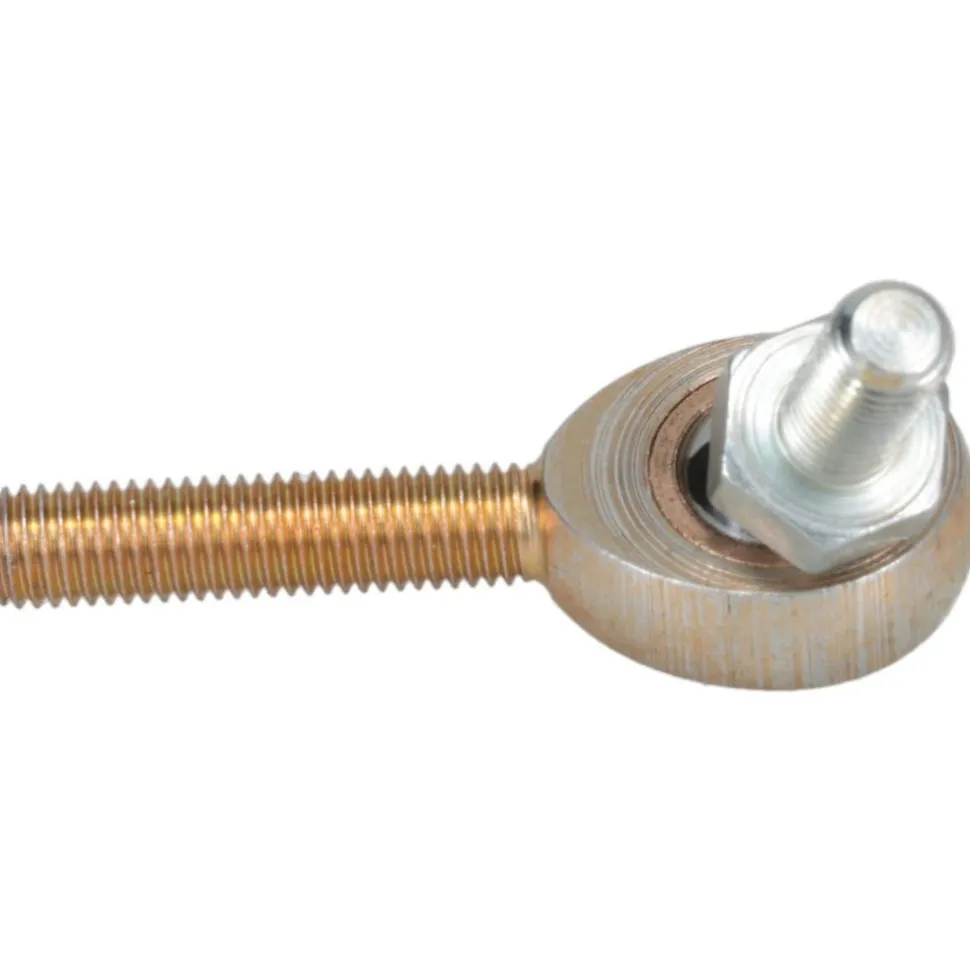

Ball Joint Linkage Spherical Rod End: 1/4-28″ Shank Thread, 1/4″ Rod ID, 3/4″ Rod OD, 1″ Shank Length, 2,168 lb Static Load Capacity
7,99 $
Specifications
| Rod End Type: Ball Joint Linkage | Style: Male Rod End with Stud |
| Maximum Outside Diameter (Inch): 3/4 | Maximum Static Load Capacity: 2168.0 |
| Width (Inch): 3/8 | Thread Size: 1/4-28 |
| Shank Length (Inch): 1 | Shank Length (Decimal Inch): 1.0000 |
| Housing Material: Carbon Steel | Gender: Male |
| With Stud: Yes | Thread Direction: Right Hand |
| Bore Diameter (Inch): 1/4 | Bore Diameter (Decimal Inch): 0.2500 |
| Static Load Capacity: 2168.00 | Raceway Material: Bronze |
| Ball Material: Steel | Maximum Ball Swivel: 16 |
| Thread Length (Decimal Inch): 1.0000 | Thread Length (Inch): 1 |
| Lubricant Type: Oil | Coating/Finish: Zinc |
| UNSPSC Code: 31171508 | Country of Origin: UNITED STATES |
| Rod End Type: Ball Joint Linkage | |
| Style: Male Rod End with Stud | |
| Maximum Outside Diameter (Inch): 3/4 | |
| Maximum Static Load Capacity: 2168.0 | |
| Width (Inch): 3/8 | |
| Thread Size: 1/4-28 | |
| Shank Length (Inch): 1 | |
| Shank Length (Decimal Inch): 1.0000 | |
| Housing Material: Carbon Steel | |
| Gender: Male | |
| With Stud: Yes | |
| Thread Direction: Right Hand | |
| Bore Diameter (Inch): 1/4 | |
| Bore Diameter (Decimal Inch): 0.2500 | |
| Static Load Capacity: 2168.00 | |
| Raceway Material: Bronze | |
| Ball Material: Steel | |
| Maximum Ball Swivel: 16 | |
| Thread Length (Decimal Inch): 1.0000 | |
| Thread Length (Inch): 1 | |
| Lubricant Type: Oil | |
| Coating/Finish: Zinc | |
| UNSPSC Code: 31171508 | |
| Country of Origin: UNITED STATES |
| MSC# | 35398064 |
| Mfr# | M4SBY |
| Big Book# | 3813 |
Be the first to review “Ball Joint Linkage Spherical Rod End: 1/4-28″ Shank Thread, 1/4″ Rod ID, 3/4″ Rod OD, 1″ Shank Length, 2,168 lb Static Load Capacity”
