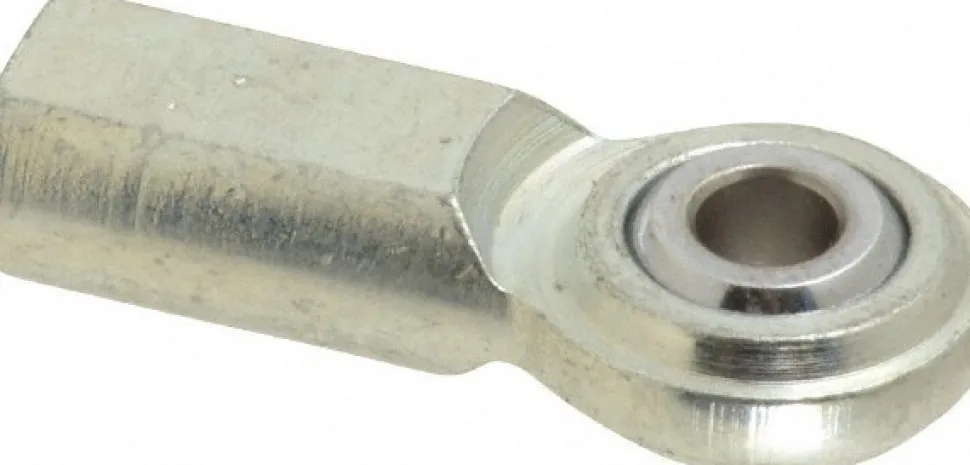

Ball Joint Linkage Spherical Rod End: 10-32″ Shank Thread, 0.19″ Rod ID, 5/8″ Rod OD, 0.406″ Shank Dia, 1/2″ Shank Length, 1,210 lb Static Load Capacity
6,99 $
Specifications
| Rod End Type: Ball Joint Linkage | Style: Plain Female Rod End |
| Maximum Outside Diameter (Inch): 5/8 | Maximum Static Load Capacity: 1210.0 |
| Width (Inch): 5/16 | Shank Diameter (Decimal Inch): 0.4060 |
| Thread Size: #10-32 | Shank Diameter: 0.5512 |
| Shank Length (Inch): 1/2 | Shank Length (Decimal Inch): 0.5000 |
| Housing Material: Carbon Steel | Gender: Female |
| Thread Direction: Right Hand | Bore Diameter (Decimal Inch): 0.1900 |
| Static Load Capacity: 2100.00 | Raceway Material: Steel |
| Ball Material: Steel | Maximum Ball Swivel: 20 |
| Thread Length (Decimal Inch): 0.5000 | Thread Length (Inch): 1/2 |
| Overall Thickness (Decimal Inch): 0.3120 | Coating/Finish: Zinc |
| UNSPSC Code: 31171508 | |
| Rod End Type: Ball Joint Linkage | |
| Style: Plain Female Rod End | |
| Maximum Outside Diameter (Inch): 5/8 | |
| Maximum Static Load Capacity: 1210.0 | |
| Width (Inch): 5/16 | |
| Shank Diameter (Decimal Inch): 0.4060 | |
| Thread Size: #10-32 | |
| Shank Diameter: 0.5512 | |
| Shank Length (Inch): 1/2 | |
| Shank Length (Decimal Inch): 0.5000 | |
| Housing Material: Carbon Steel | |
| Gender: Female | |
| Thread Direction: Right Hand | |
| Bore Diameter (Decimal Inch): 0.1900 | |
| Static Load Capacity: 2100.00 | |
| Raceway Material: Steel | |
| Ball Material: Steel | |
| Maximum Ball Swivel: 20 | |
| Thread Length (Decimal Inch): 0.5000 | |
| Thread Length (Inch): 1/2 | |
| Overall Thickness (Decimal Inch): 0.3120 | |
| Coating/Finish: Zinc | |
| UNSPSC Code: 31171508 |
| MSC# | 35397744 |
| Mfr# | CF 3 |
| Big Book# | 3813 |
