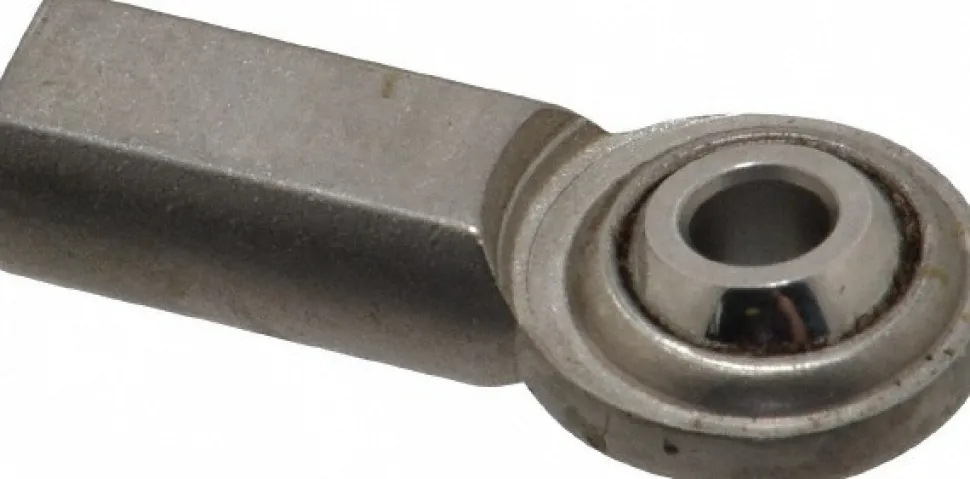

Ball Joint Linkage Spherical Rod End: 10-32″ Shank Thread, 0.19″ Rod ID, 5/8″ Rod OD, 0.406″ Shank Dia, 1/2″ Shank Length, 930 lb Static Load Capacity
11,99 $
Specifications
| Rod End Type: Ball Joint Linkage | Style: Plain Female Rod End |
| Maximum Outside Diameter (Inch): 5/8 | Maximum Static Load Capacity: 930.0 |
| Width (Inch): 5/16 | Shank Diameter (Decimal Inch): 0.4060 |
| Thread Size: #10-32 | Shank Diameter: 0.7087 |
| Shank Length (Inch): 1/2 | Shank Length (Decimal Inch): 0.5000 |
| Housing Material: Stainless Steel | Gender: Female |
| Thread Direction: Right Hand | Bore Diameter (Decimal Inch): 0.1900 |
| Static Load Capacity: 930.00 | Raceway Material: Stainless Steel |
| Ball Material: Stainless Steel | Maximum Ball Swivel: 20 |
| Thread Length (Decimal Inch): 0.5000 | Thread Length (Inch): 1/2 |
| Overall Thickness (Decimal Inch): 0.3120 | Lubricant Type: PTFE |
| UNSPSC Code: 31171508 | |
| Rod End Type: Ball Joint Linkage | |
| Style: Plain Female Rod End | |
| Maximum Outside Diameter (Inch): 5/8 | |
| Maximum Static Load Capacity: 930.0 | |
| Width (Inch): 5/16 | |
| Shank Diameter (Decimal Inch): 0.4060 | |
| Thread Size: #10-32 | |
| Shank Diameter: 0.7087 | |
| Shank Length (Inch): 1/2 | |
| Shank Length (Decimal Inch): 0.5000 | |
| Housing Material: Stainless Steel | |
| Gender: Female | |
| Thread Direction: Right Hand | |
| Bore Diameter (Decimal Inch): 0.1900 | |
| Static Load Capacity: 930.00 | |
| Raceway Material: Stainless Steel | |
| Ball Material: Stainless Steel | |
| Maximum Ball Swivel: 20 | |
| Thread Length (Decimal Inch): 0.5000 | |
| Thread Length (Inch): 1/2 | |
| Overall Thickness (Decimal Inch): 0.3120 | |
| Lubricant Type: PTFE | |
| UNSPSC Code: 31171508 |
| MSC# | 35398379 |
| Mfr# | CF 3TX |
| Big Book# | 3813 |
