Sale!

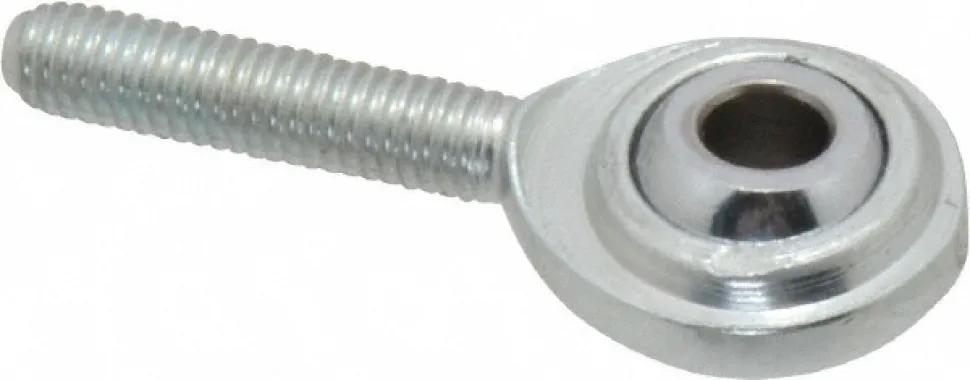

Ball Joint Linkage Spherical Rod End: 10-32″ Shank Thread, 0.19″ Rod ID, 5/8″ Rod OD, 3/4″ Shank Length, 1,210 lb Static Load Capacity
Original price was: 7,00 $.5,99 $Current price is: 5,99 $.
Specifications
| Rod End Type: Ball Joint Linkage | Style: Plain Male Rod End |
| Maximum Outside Diameter (Inch): 5/8 | Maximum Static Load Capacity: 1210.0 |
| Width (Inch): 5/16 | Thread Size: #10-32 |
| Shank Length (Inch): 3/4 | Shank Length (Decimal Inch): 0.7500 |
| Housing Material: Carbon Steel | Gender: Male |
| Thread Direction: Right Hand | Bore Diameter (Decimal Inch): 0.1900 |
| Static Load Capacity: 1210.00 | Raceway Material: Steel |
| Ball Material: Steel | Maximum Ball Swivel: 20 |
| Thread Length (Decimal Inch): 0.7500 | Thread Length (Inch): 3/4 |
| Coating/Finish: Zinc | UNSPSC Code: 31171508 |
| Rod End Type: Ball Joint Linkage | |
| Style: Plain Male Rod End | |
| Maximum Outside Diameter (Inch): 5/8 | |
| Maximum Static Load Capacity: 1210.0 | |
| Width (Inch): 5/16 | |
| Thread Size: #10-32 | |
| Shank Length (Inch): 3/4 | |
| Shank Length (Decimal Inch): 0.7500 | |
| Housing Material: Carbon Steel | |
| Gender: Male | |
| Thread Direction: Right Hand | |
| Bore Diameter (Decimal Inch): 0.1900 | |
| Static Load Capacity: 1210.00 | |
| Raceway Material: Steel | |
| Ball Material: Steel | |
| Maximum Ball Swivel: 20 | |
| Thread Length (Decimal Inch): 0.7500 | |
| Thread Length (Inch): 3/4 | |
| Coating/Finish: Zinc | |
| UNSPSC Code: 31171508 |
| MSC# | 35397652 |
| Mfr# | CM 3 |
| Big Book# | 3813 |
