Sale!

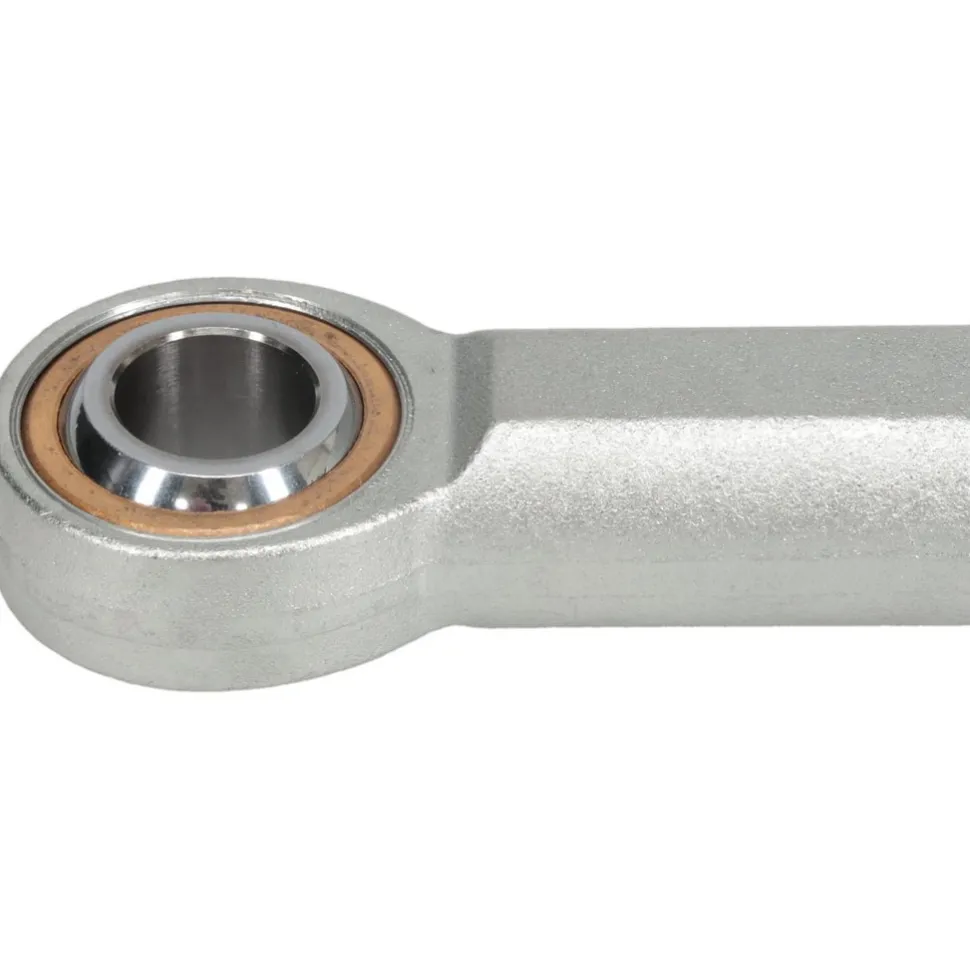

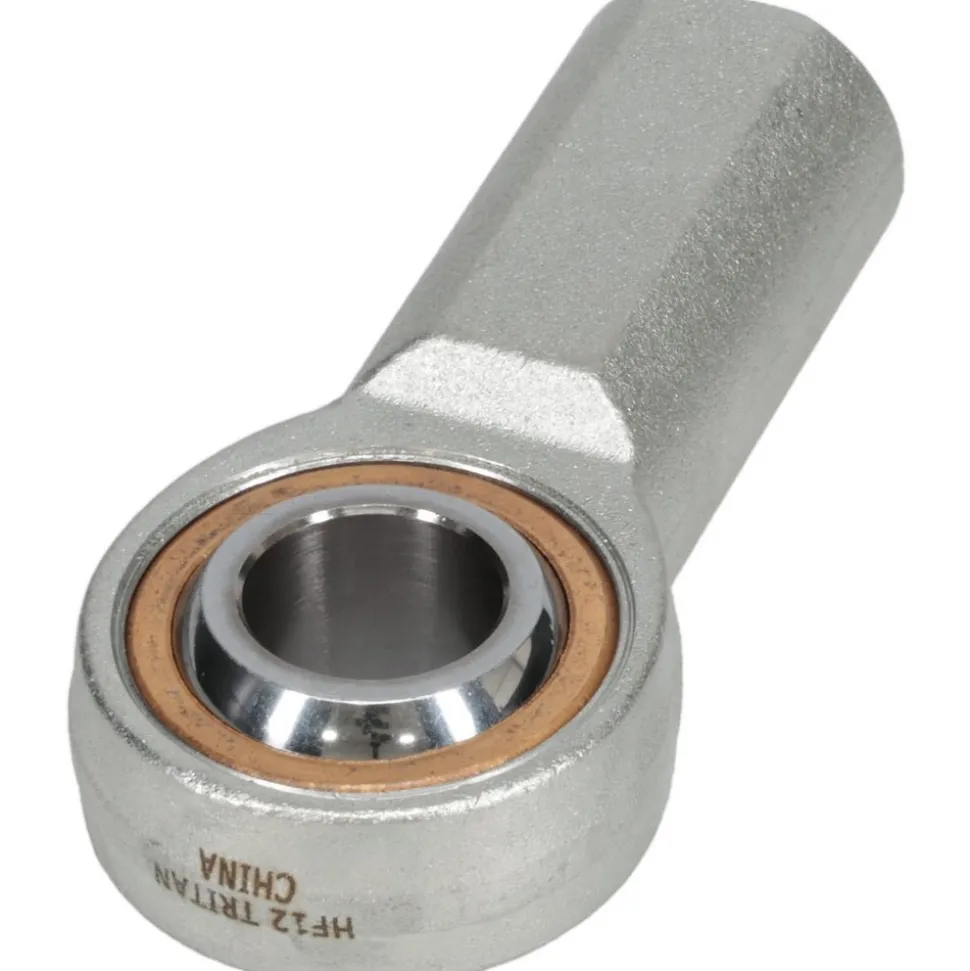

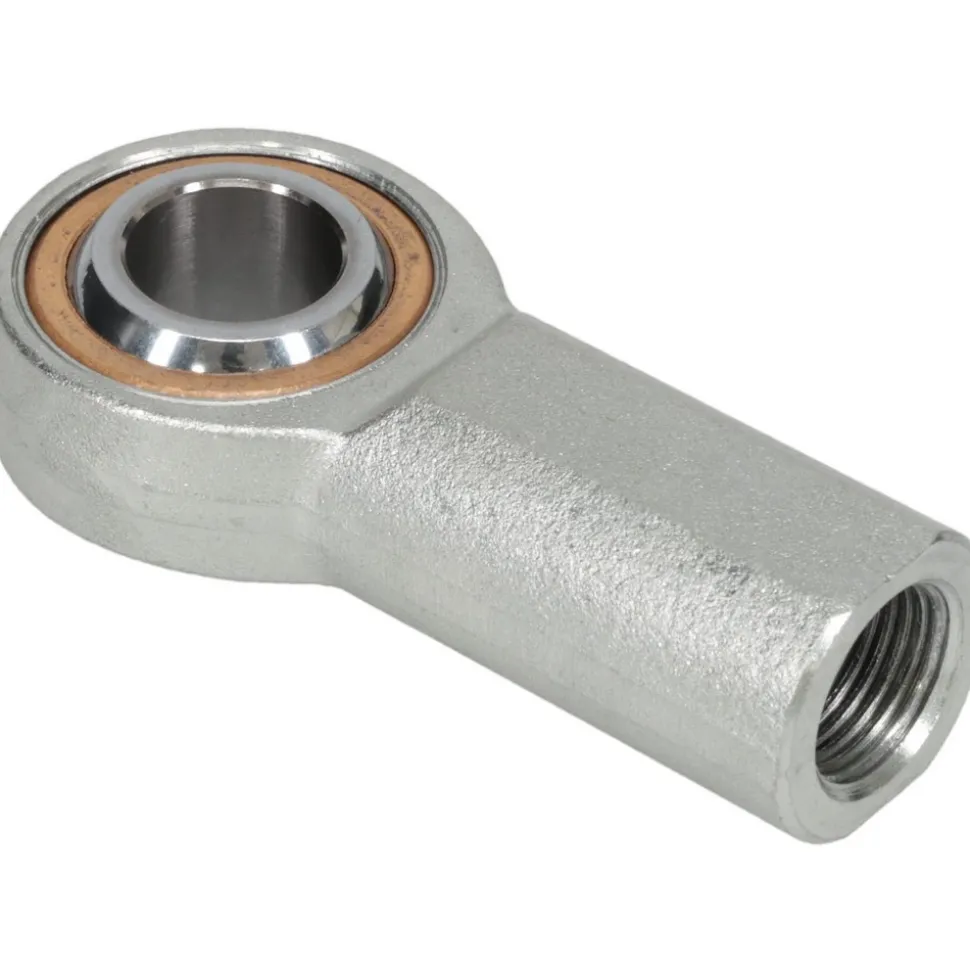

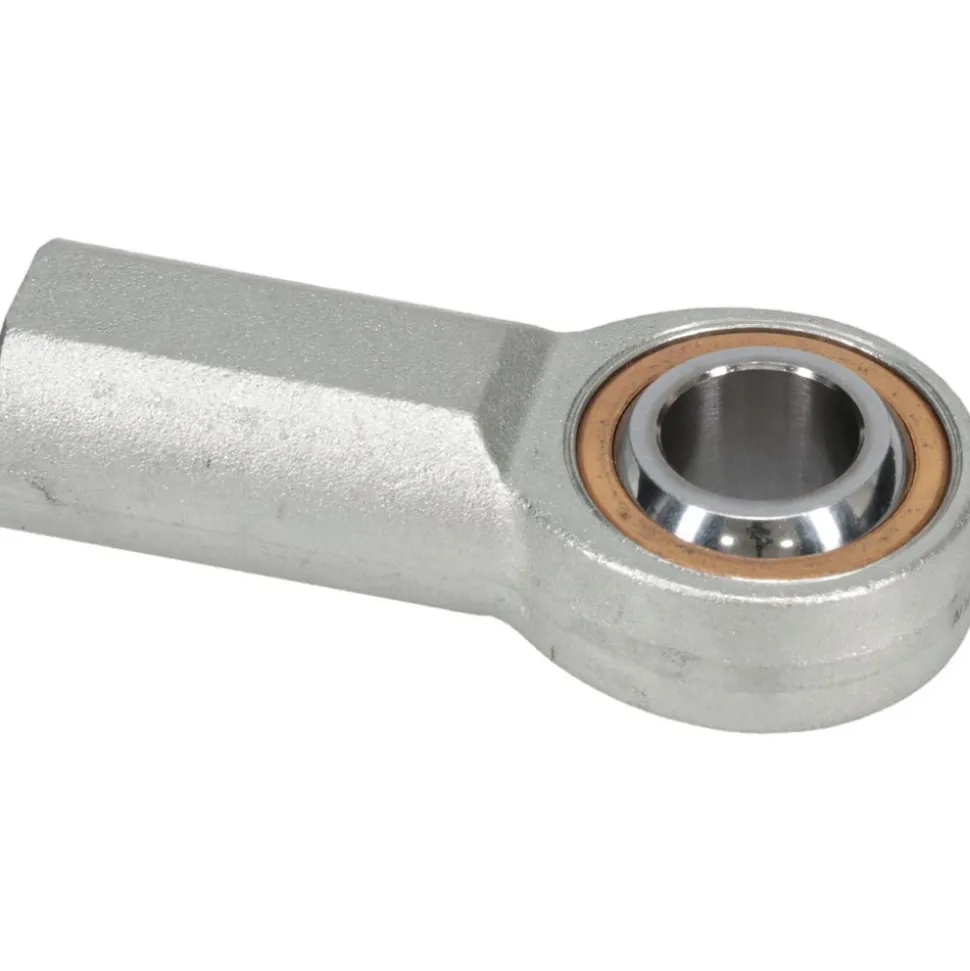

Ball Joint Linkage Spherical Rod End: 3/4-16″ Shank Thread, 3/4″ Rod ID, 1-3/4″ Rod OD, 1.125″ Shank Dia, 1.562″ Shank Length, 11,550 lb Static Load Capacity
Original price was: 32,00 $.22,99 $Current price is: 22,99 $.
Specifications
| Rod End Type: Ball Joint Linkage | Style: Plain Female Rod End |
| Maximum Outside Diameter (Inch): 1-3/4 | Maximum Static Load Capacity: 11550.0 |
| Width (Inch): 7/8 | Shank Diameter (Decimal Inch): 1.1250 |
| Thread Size: 3/4-16 | Shank Diameter: 0.6299 |
| Shank Length (Decimal Inch): 1.5620 | Housing Material: Carbon Steel |
| Gender: Female | Thread Direction: Right Hand |
| Bore Diameter (Inch): 3/4 | Bore Diameter (Decimal Inch): 0.7500 |
| Static Load Capacity: 11550.00 | Raceway Material: Bronze |
| Ball Material: Steel | Maximum Ball Swivel: 14 |
| Thread Length (Decimal Inch): 1.5620 | Overall Thickness (Decimal Inch): 1.0000 |
| Lubricant Type: Oil | Coating/Finish: Zinc |
| UNSPSC Code: 31171508 | |
| Rod End Type: Ball Joint Linkage | |
| Style: Plain Female Rod End | |
| Maximum Outside Diameter (Inch): 1-3/4 | |
| Maximum Static Load Capacity: 11550.0 | |
| Width (Inch): 7/8 | |
| Shank Diameter (Decimal Inch): 1.1250 | |
| Thread Size: 3/4-16 | |
| Shank Diameter: 0.6299 | |
| Shank Length (Decimal Inch): 1.5620 | |
| Housing Material: Carbon Steel | |
| Gender: Female | |
| Thread Direction: Right Hand | |
| Bore Diameter (Inch): 3/4 | |
| Bore Diameter (Decimal Inch): 0.7500 | |
| Static Load Capacity: 11550.00 | |
| Raceway Material: Bronze | |
| Ball Material: Steel | |
| Maximum Ball Swivel: 14 | |
| Thread Length (Decimal Inch): 1.5620 | |
| Overall Thickness (Decimal Inch): 1.0000 | |
| Lubricant Type: Oil | |
| Coating/Finish: Zinc | |
| UNSPSC Code: 31171508 |
| MSC# | 35398205 |
| Mfr# | HF 12 |
| Big Book# | 3813 |
