Sale!

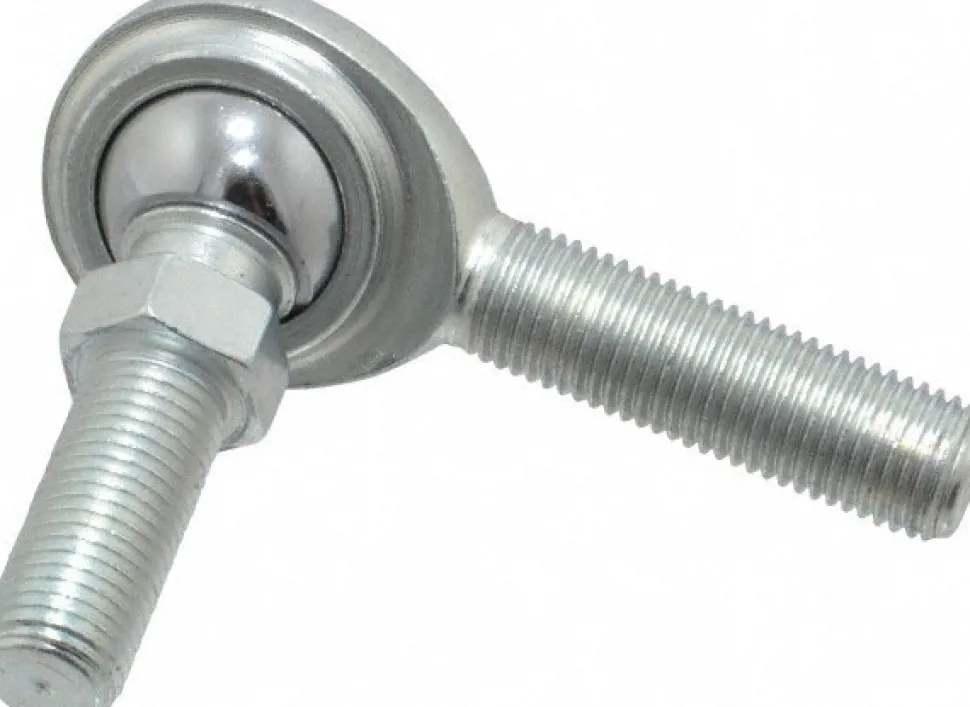

Ball Joint Linkage Spherical Rod End: 3/8-24″ Shank Thread, 3/8″ Rod ID, 1″ Rod OD, 1-1/4″ Shank Length, 5,100 lb Static Load Capacity
Original price was: 12,00 $.8,99 $Current price is: 8,99 $.
Specifications
| Rod End Type: Ball Joint Linkage | Style: Male Rod End with Stud |
| Maximum Outside Diameter (Inch): 1 | Maximum Static Load Capacity: 5100.0 |
| Width (Inch): 1/2 | Thread Size: 3/8-24 |
| Shank Length (Inch): 1-1/4 | Shank Length (Decimal Inch): 1.2500 |
| Housing Material: Carbon Steel | Gender: Male |
| With Stud: Yes | Thread Direction: Right Hand |
| Bore Diameter (Inch): 3/8 | Bore Diameter (Decimal Inch): 0.3750 |
| Static Load Capacity: 5100.00 | Raceway Material: Steel |
| Ball Material: Steel | Maximum Ball Swivel: 22 |
| Thread Length (Decimal Inch): 1.2500 | Thread Length (Inch): 1-1/4 |
| Coating/Finish: Zinc | UNSPSC Code: 31171508 |
| Rod End Type: Ball Joint Linkage | |
| Style: Male Rod End with Stud | |
| Maximum Outside Diameter (Inch): 1 | |
| Maximum Static Load Capacity: 5100.0 | |
| Width (Inch): 1/2 | |
| Thread Size: 3/8-24 | |
| Shank Length (Inch): 1-1/4 | |
| Shank Length (Decimal Inch): 1.2500 | |
| Housing Material: Carbon Steel | |
| Gender: Male | |
| With Stud: Yes | |
| Thread Direction: Right Hand | |
| Bore Diameter (Inch): 3/8 | |
| Bore Diameter (Decimal Inch): 0.3750 | |
| Static Load Capacity: 5100.00 | |
| Raceway Material: Steel | |
| Ball Material: Steel | |
| Maximum Ball Swivel: 22 | |
| Thread Length (Decimal Inch): 1.2500 | |
| Thread Length (Inch): 1-1/4 | |
| Coating/Finish: Zinc | |
| UNSPSC Code: 31171508 |
| MSC# | 35397777 |
| Mfr# | CM 6S |
| Big Book# | 3813 |
