Sale!

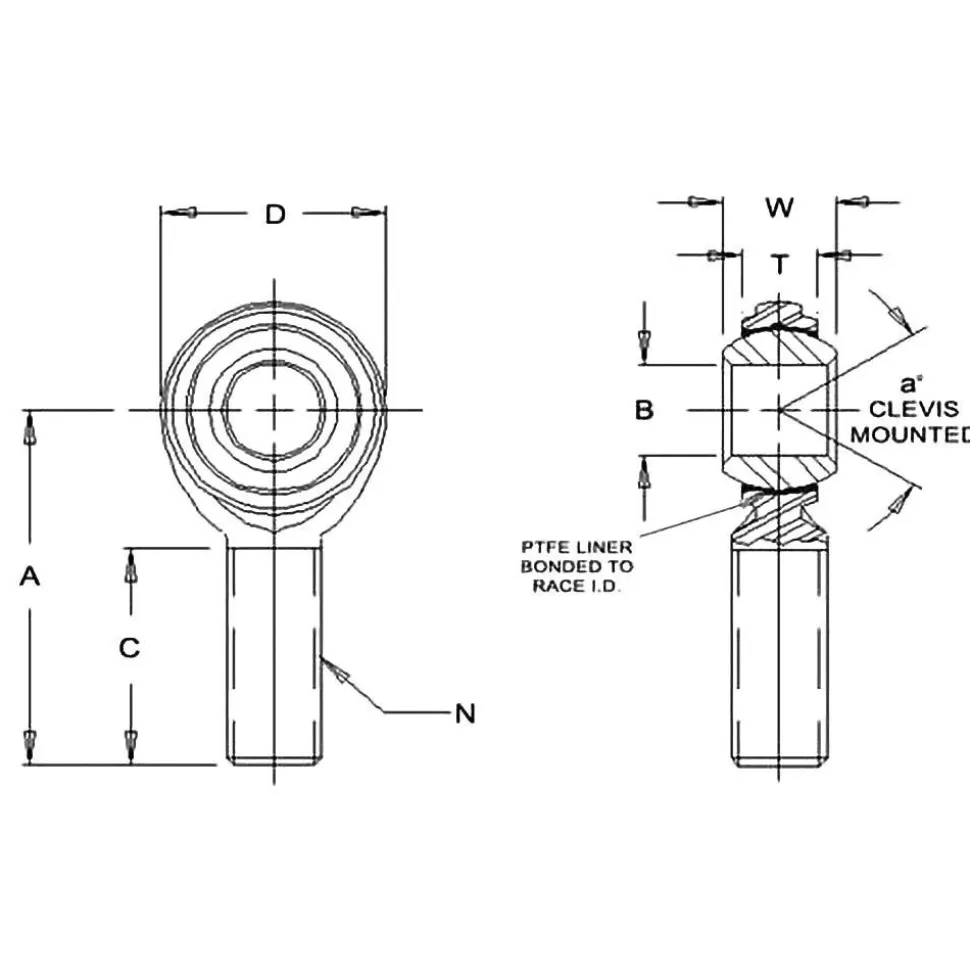

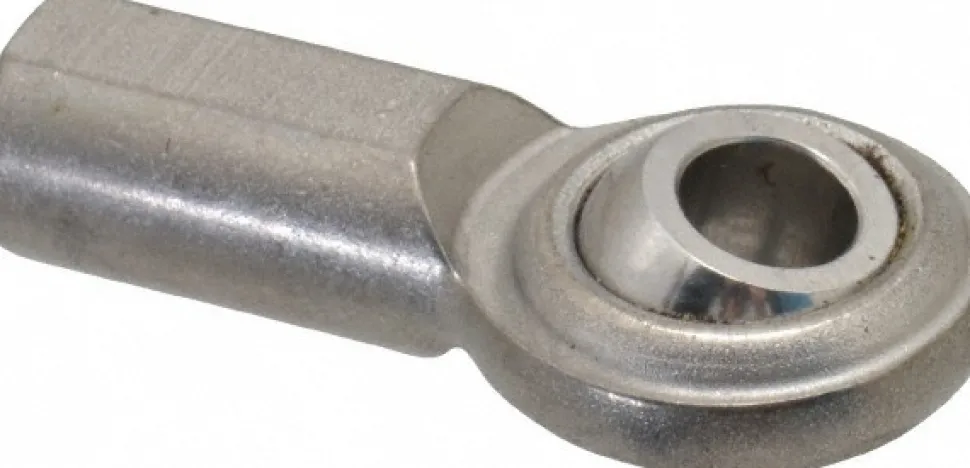

Ball Joint Linkage Spherical Rod End: 5/16-24″ Shank Thread, 5/16″ Rod ID, 7/8″ Rod OD, 0.5″ Shank Dia, 0.687″ Shank Length, 2,100 lb Static Load Capacity
Original price was: 18,00 $.13,89 $Current price is: 13,89 $.
Specifications
| Rod End Type: Ball Joint Linkage | Style: Plain Female Rod End |
| Maximum Outside Diameter (Inch): 7/8 | Maximum Static Load Capacity: 2100.0 |
| Width (Inch): 7/16 | Shank Diameter (Decimal Inch): 0.5000 |
| Thread Size: 5/16-24 | Shank Diameter: 0.2362 |
| Shank Length (Decimal Inch): 0.6870 | Housing Material: Stainless Steel |
| Gender: Female | Thread Direction: Right Hand |
| Bore Diameter (Inch): 5/16 | Bore Diameter (Decimal Inch): 0.3125 |
| Static Load Capacity: 2100.00 | Raceway Material: Stainless Steel |
| Ball Material: Stainless Steel | Maximum Ball Swivel: 22 |
| Thread Length (Decimal Inch): 0.6870 | Overall Thickness (Decimal Inch): 0.4370 |
| Lubricant Type: PTFE | UNSPSC Code: 31171508 |
| Rod End Type: Ball Joint Linkage | |
| Style: Plain Female Rod End | |
| Maximum Outside Diameter (Inch): 7/8 | |
| Maximum Static Load Capacity: 2100.0 | |
| Width (Inch): 7/16 | |
| Shank Diameter (Decimal Inch): 0.5000 | |
| Thread Size: 5/16-24 | |
| Shank Diameter: 0.2362 | |
| Shank Length (Decimal Inch): 0.6870 | |
| Housing Material: Stainless Steel | |
| Gender: Female | |
| Thread Direction: Right Hand | |
| Bore Diameter (Inch): 5/16 | |
| Bore Diameter (Decimal Inch): 0.3125 | |
| Static Load Capacity: 2100.00 | |
| Raceway Material: Stainless Steel | |
| Ball Material: Stainless Steel | |
| Maximum Ball Swivel: 22 | |
| Thread Length (Decimal Inch): 0.6870 | |
| Overall Thickness (Decimal Inch): 0.4370 | |
| Lubricant Type: PTFE | |
| UNSPSC Code: 31171508 |
| MSC# | 35398395 |
| Mfr# | CF 5TX |
| Big Book# | 3813 |
