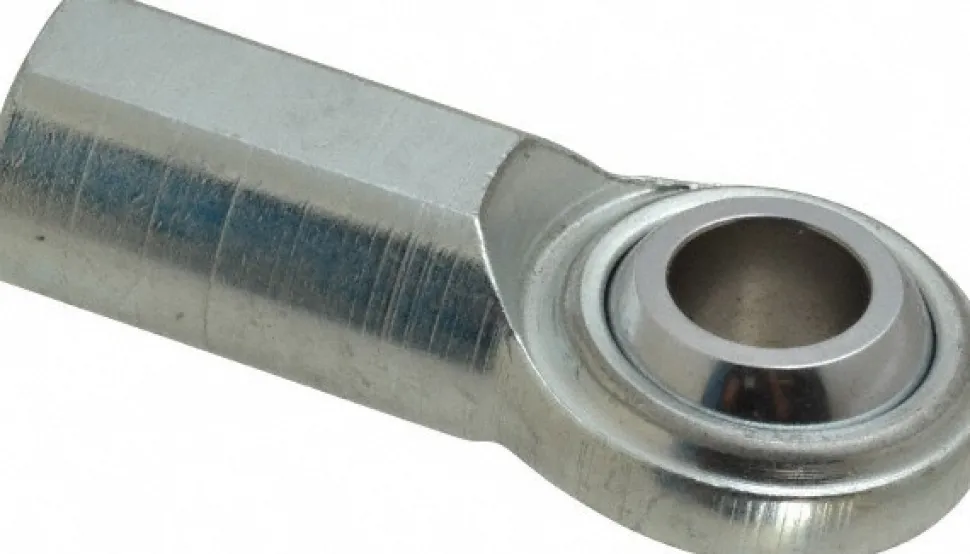

Ball Joint Linkage Spherical Rod End: 5/8-18″ Shank Thread, 5/8″ Rod ID, 1-1/2″ Rod OD, 1″ Shank Dia, 1-3/8″ Shank Length, 9,813 lb Static Load Capacity
Original price was: 20,00 $.15,99 $Current price is: 15,99 $.

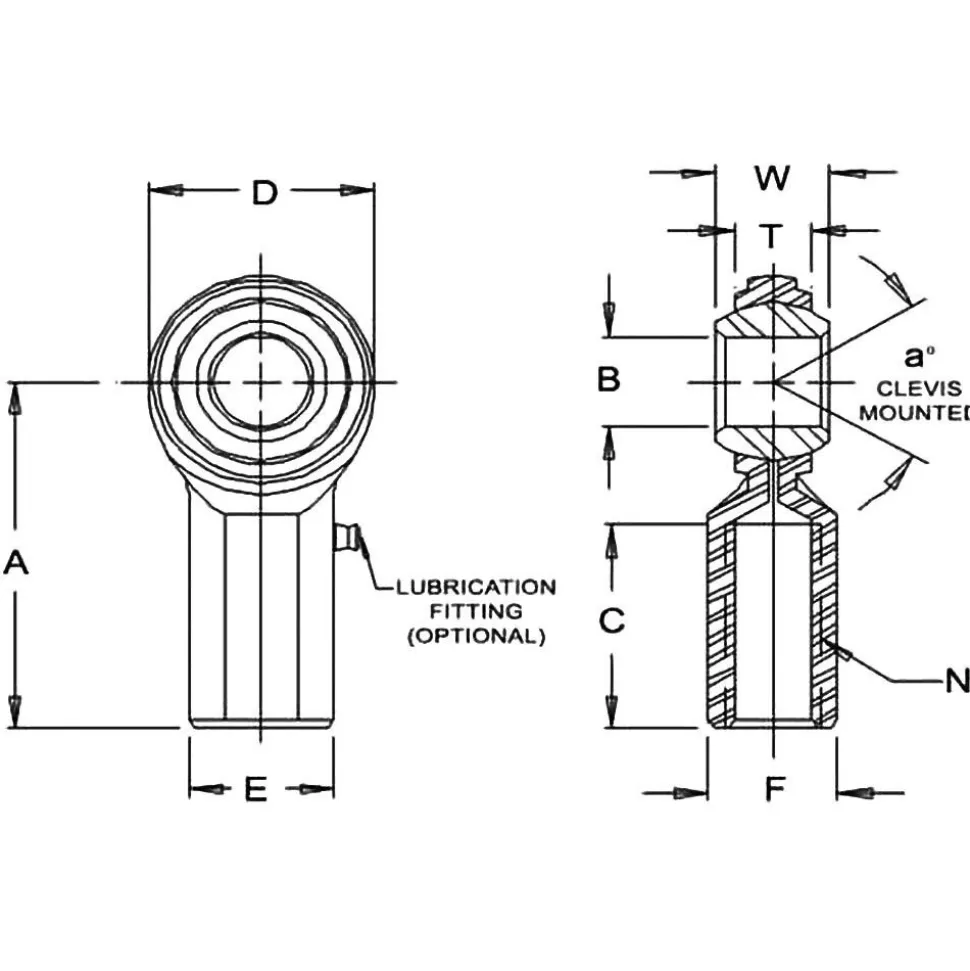

Specifications
| Rod End Type: Ball Joint Linkage | Style: Plain Female Rod End |
| Maximum Outside Diameter (Inch): 1-1/2 | Maximum Static Load Capacity: 9813.0 |
| Width (Inch): 3/4 | Shank Diameter (Decimal Inch): 1.0000 |
| Thread Size: 5/8-18 | Shank Diameter: 0.2362 |
| Shank Length (Inch): 1-3/8 | Shank Length (Decimal Inch): 1.3750 |
| Housing Material: Carbon Steel | Gender: Female |
| Thread Direction: Right Hand | Bore Diameter (Inch): 5/8 |
| Bore Diameter (Decimal Inch): 0.6250 | Static Load Capacity: 9800.00 |
| Raceway Material: Steel | Ball Material: Steel |
| Maximum Ball Swivel: 26 | Thread Length (Decimal Inch): 1.3750 |
| Thread Length (Inch): 1-3/8 | Overall Thickness (Decimal Inch): 0.8750 |
| Coating/Finish: Zinc | UNSPSC Code: 31171508 |
| Rod End Type: Ball Joint Linkage | |
| Style: Plain Female Rod End | |
| Maximum Outside Diameter (Inch): 1-1/2 | |
| Maximum Static Load Capacity: 9813.0 | |
| Width (Inch): 3/4 | |
| Shank Diameter (Decimal Inch): 1.0000 | |
| Thread Size: 5/8-18 | |
| Shank Diameter: 0.2362 | |
| Shank Length (Inch): 1-3/8 | |
| Shank Length (Decimal Inch): 1.3750 | |
| Housing Material: Carbon Steel | |
| Gender: Female | |
| Thread Direction: Right Hand | |
| Bore Diameter (Inch): 5/8 | |
| Bore Diameter (Decimal Inch): 0.6250 | |
| Static Load Capacity: 9800.00 | |
| Raceway Material: Steel | |
| Ball Material: Steel | |
| Maximum Ball Swivel: 26 | |
| Thread Length (Decimal Inch): 1.3750 | |
| Thread Length (Inch): 1-3/8 | |
| Overall Thickness (Decimal Inch): 0.8750 | |
| Coating/Finish: Zinc | |
| UNSPSC Code: 31171508 |
| MSC# | 35397876 |
| Mfr# | CF 10 |
| Big Book# | 3813 |
