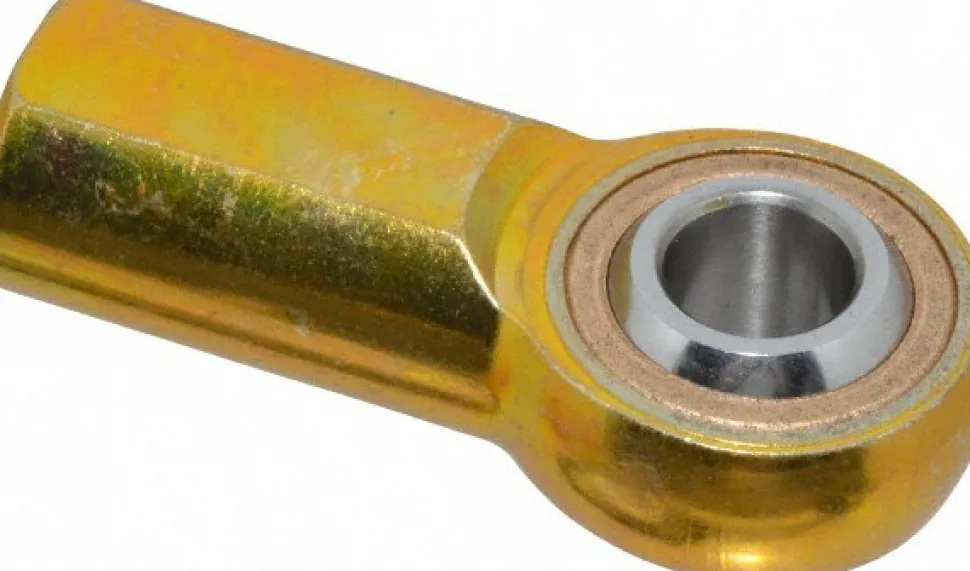

Ball Joint Linkage Spherical Rod End: 7/16-20″ Shank Thread, 7/16″ Rod ID, 1-1/8″ Rod OD, 0.75″ Shank Dia, 0.937″ Shank Length, 4,300 lb Static Load Capacity
8,89 $
Specifications
| Rod End Type: Ball Joint Linkage | Style: Plain Female Rod End |
| Maximum Outside Diameter (Inch): 1-1/8 | Maximum Static Load Capacity: 4300.0 |
| Width (Inch): 9/16 | Shank Diameter (Decimal Inch): 0.7500 |
| Thread Size: 7/16-20 | Shank Diameter: 0.3937 |
| Shank Length (Decimal Inch): 0.9370 | Housing Material: Carbon Steel |
| Gender: Female | Thread Direction: Right Hand |
| Bore Diameter (Inch): 7/16 | Bore Diameter (Decimal Inch): 0.4375 |
| Static Load Capacity: 4300.00 | Raceway Material: Bronze |
| Ball Material: Steel | Maximum Ball Swivel: 14 |
| Thread Length (Decimal Inch): 0.9370 | Overall Thickness (Decimal Inch): 0.6250 |
| Lubricant Type: Oil | Coating/Finish: Zinc |
| UNSPSC Code: 31171508 | |
| Rod End Type: Ball Joint Linkage | |
| Style: Plain Female Rod End | |
| Maximum Outside Diameter (Inch): 1-1/8 | |
| Maximum Static Load Capacity: 4300.0 | |
| Width (Inch): 9/16 | |
| Shank Diameter (Decimal Inch): 0.7500 | |
| Thread Size: 7/16-20 | |
| Shank Diameter: 0.3937 | |
| Shank Length (Decimal Inch): 0.9370 | |
| Housing Material: Carbon Steel | |
| Gender: Female | |
| Thread Direction: Right Hand | |
| Bore Diameter (Inch): 7/16 | |
| Bore Diameter (Decimal Inch): 0.4375 | |
| Static Load Capacity: 4300.00 | |
| Raceway Material: Bronze | |
| Ball Material: Steel | |
| Maximum Ball Swivel: 14 | |
| Thread Length (Decimal Inch): 0.9370 | |
| Overall Thickness (Decimal Inch): 0.6250 | |
| Lubricant Type: Oil | |
| Coating/Finish: Zinc | |
| UNSPSC Code: 31171508 |
| MSC# | 35398171 |
| Mfr# | HF 7 |
| Big Book# | 3813 |
