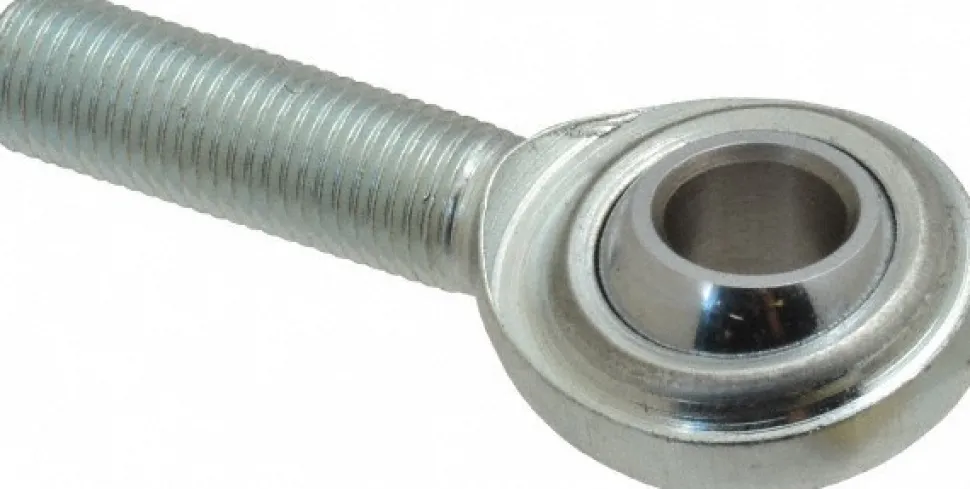

Ball Joint Linkage Spherical Rod End: 7/16-20″ Shank Thread, 7/16″ Rod ID, 1-1/8″ Rod OD, 1-3/8″ Shank Length, 6,402 lb Static Load Capacity
Original price was: 11,00 $.7,89 $Current price is: 7,89 $.
Specifications
| Rod End Type: Ball Joint Linkage | Style: Plain Male Rod End |
| Maximum Outside Diameter (Inch): 1-1/8 | Maximum Static Load Capacity: 6402.0 |
| Width (Inch): 9/16 | Thread Size: 7/16-20 |
| Shank Length (Inch): 1-3/8 | Shank Length (Decimal Inch): 1.3750 |
| Housing Material: Carbon Steel | Gender: Male |
| Thread Direction: Right Hand | Bore Diameter (Inch): 7/16 |
| Bore Diameter (Decimal Inch): 0.4375 | Static Load Capacity: 6402.00 |
| Raceway Material: Steel | Ball Material: Steel |
| Maximum Ball Swivel: 21 | Thread Length (Decimal Inch): 1.3750 |
| Thread Length (Inch): 1-3/8 | Coating/Finish: Zinc |
| UNSPSC Code: 31171508 | |
| Rod End Type: Ball Joint Linkage | |
| Style: Plain Male Rod End | |
| Maximum Outside Diameter (Inch): 1-1/8 | |
| Maximum Static Load Capacity: 6402.0 | |
| Width (Inch): 9/16 | |
| Thread Size: 7/16-20 | |
| Shank Length (Inch): 1-3/8 | |
| Shank Length (Decimal Inch): 1.3750 | |
| Housing Material: Carbon Steel | |
| Gender: Male | |
| Thread Direction: Right Hand | |
| Bore Diameter (Inch): 7/16 | |
| Bore Diameter (Decimal Inch): 0.4375 | |
| Static Load Capacity: 6402.00 | |
| Raceway Material: Steel | |
| Ball Material: Steel | |
| Maximum Ball Swivel: 21 | |
| Thread Length (Decimal Inch): 1.3750 | |
| Thread Length (Inch): 1-3/8 | |
| Coating/Finish: Zinc | |
| UNSPSC Code: 31171508 |
| MSC# | 35397694 |
| Mfr# | CM 7 |
| Big Book# | 3813 |
