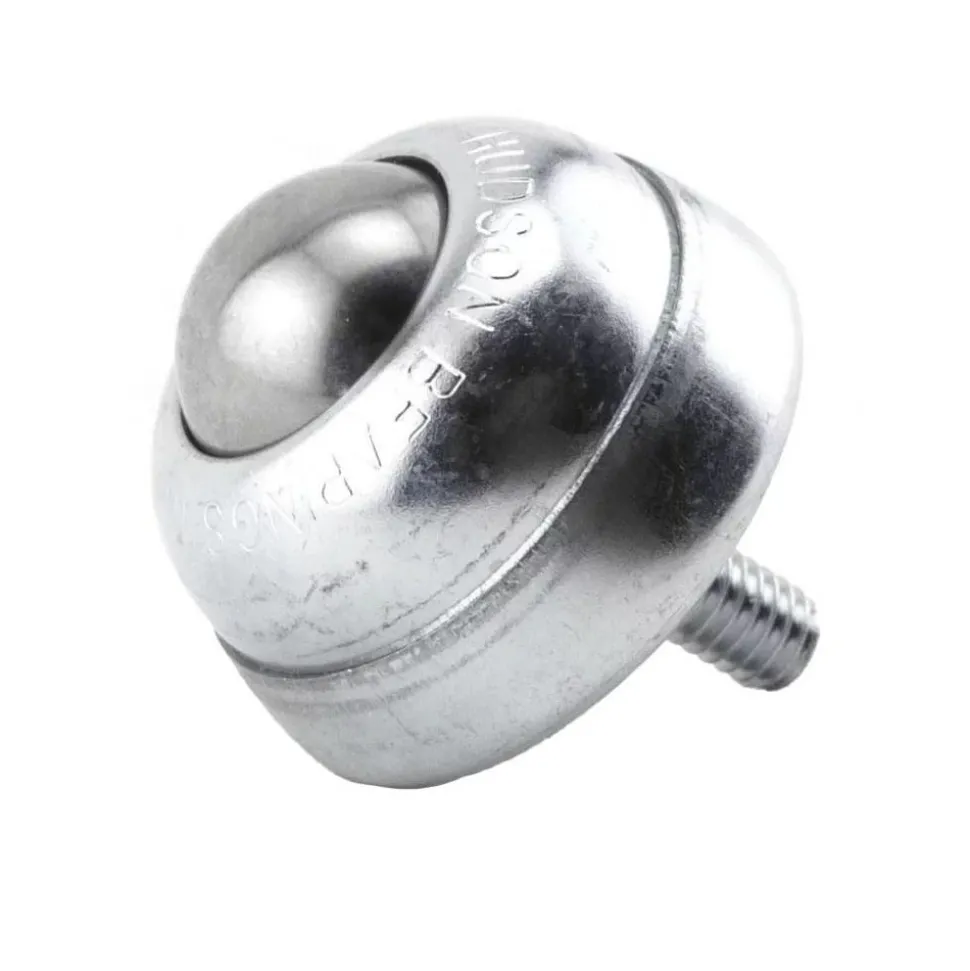

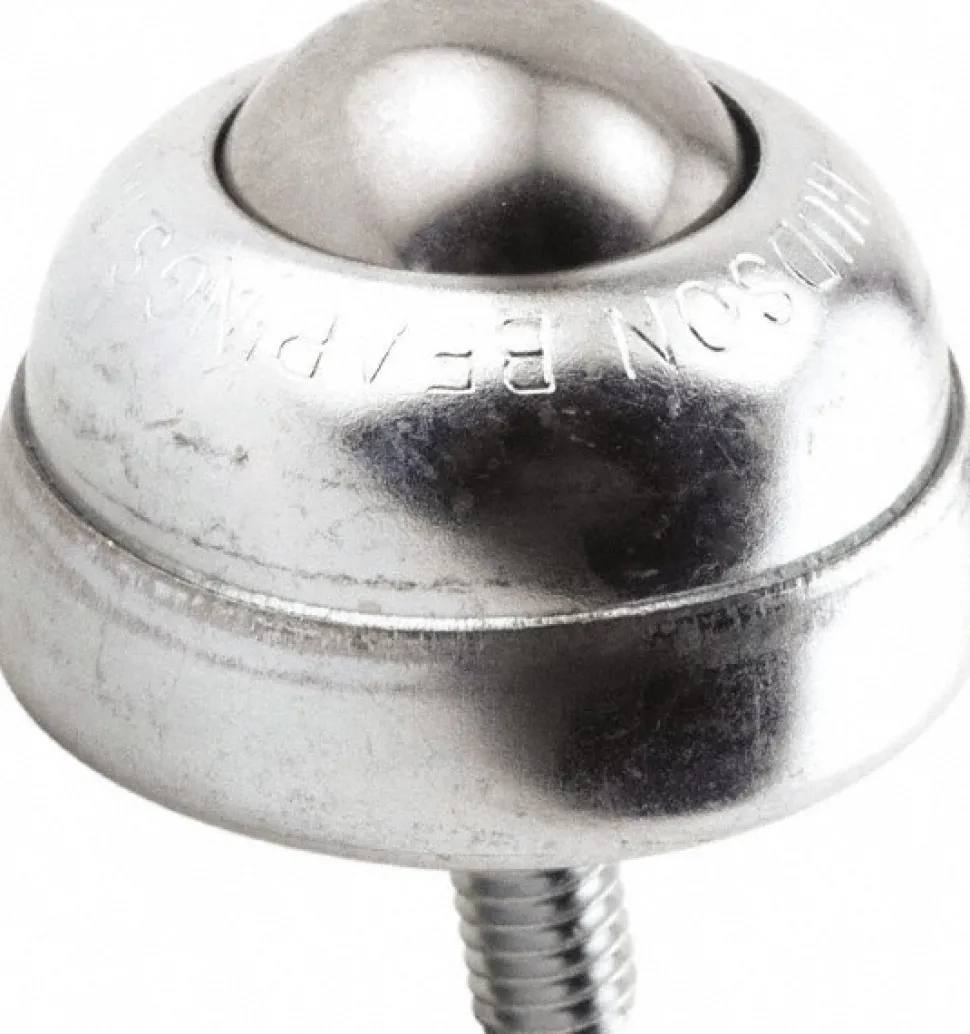

Ball Transfer: 25.4 mm Ball Dia, Carbon Steel, Round Base

2,89 $

Specifications

Base Shape: Round	Diameter (mm): 25.40
Mount Type: Stud	Ball Diameter (mm): 25.40
Mount Height (Fractional Inch): 1-3/8	Mount Height (Decimal Inch): 1.38
Mount Height (mm): 34.90	Ball Material: Carbon Steel
Thread Size: 5/16-18	Thread Length (Inch): 18
Thread Length (mm): 18.00	Overall Diameter (Inch): 1-3/4
Stud Length (mm): 17.50	Stud Length (Decimal Inch): 2.7500
Mounting Hole Diameter (Decimal Inch): 0.3100	Overall Length (mm): 52.39
Housing Material: Carbon Steel	Number Of Mounting Holes: 1.000
Projection (mm): 34.90	Projection (Decimal Inch): 1.3750
Hardness: Hard	Base Diameter (mm): 35.70
UNSPSC Code: 31162700	Country of Origin: UNITED STATES
Base Shape: Round
Diameter (mm): 25.40
Mount Type: Stud
Ball Diameter (mm): 25.40
Mount Height (Fractional Inch): 1-3/8
Mount Height (Decimal Inch): 1.38
Mount Height (mm): 34.90
Ball Material: Carbon Steel
Thread Size: 5/16-18
Thread Length (Inch): 18
Thread Length (mm): 18.00
Overall Diameter (Inch): 1-3/4
Stud Length (mm): 17.50
Stud Length (Decimal Inch): 2.7500
Mounting Hole Diameter (Decimal Inch): 0.3100
Overall Length (mm): 52.39
Housing Material: Carbon Steel
Number Of Mounting Holes: 1.000
Projection (mm): 34.90
Projection (Decimal Inch): 1.3750
Hardness: Hard
Base Diameter (mm): 35.70
UNSPSC Code: 31162700
Country of Origin: UNITED STATES
