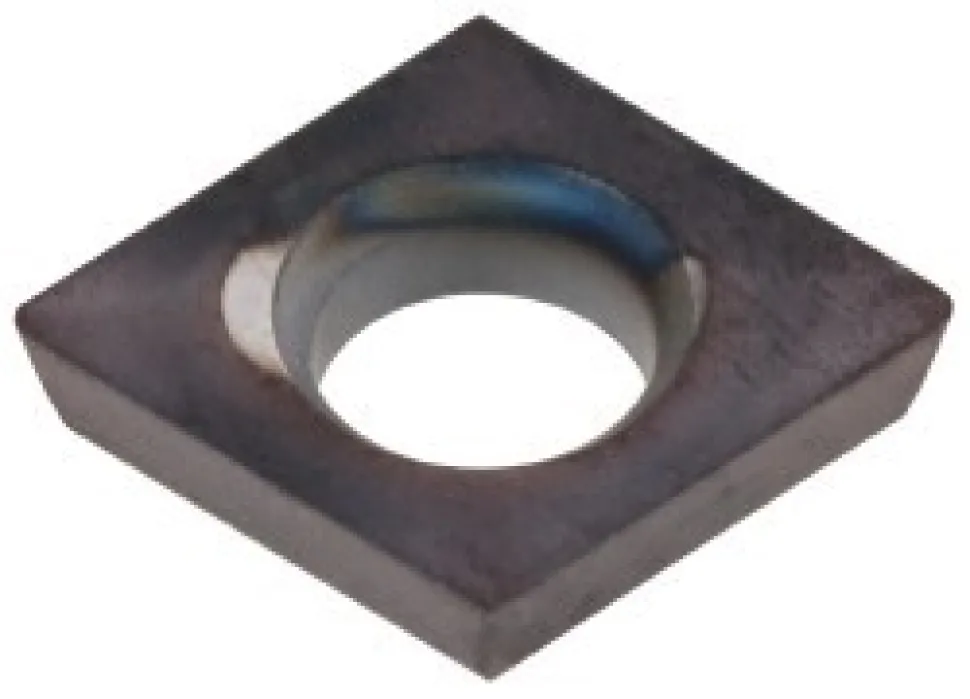

Boring Inserts: Insert Style: CDHB; Insert Size Code: 120605; Insert Material: Carbide; Material Grade: C3, C4
Original price was: 30,00 $.22,99 $Current price is: 22,99 $.
Specifications
| Insert Style: CDHB | Insert Size Code: 120605 |
| Insert Material: Carbide | Material Grade: C3; C4 |
| Manufacturer Grade: KC5010 | Inscribed Circle (Decimal Inch): 0.1563 |
| Inscribed Circle (Inch): 5/32 | Hole Diameter (Decimal Inch): 0.0840 |
| Hole Diameter (mm): 2.13 | Insert Holding Method: Screw |
| Insert Hand: Neutral | Corner Radius (Inch): 1/128 |
| Corner Radius (Decimal Inch): 0.0079 | Relief Angle: 15.000 |
| Rake: Positive | Chipbreaker: Flat Top |
| Series: Screw-On | Coating Process: PVD |

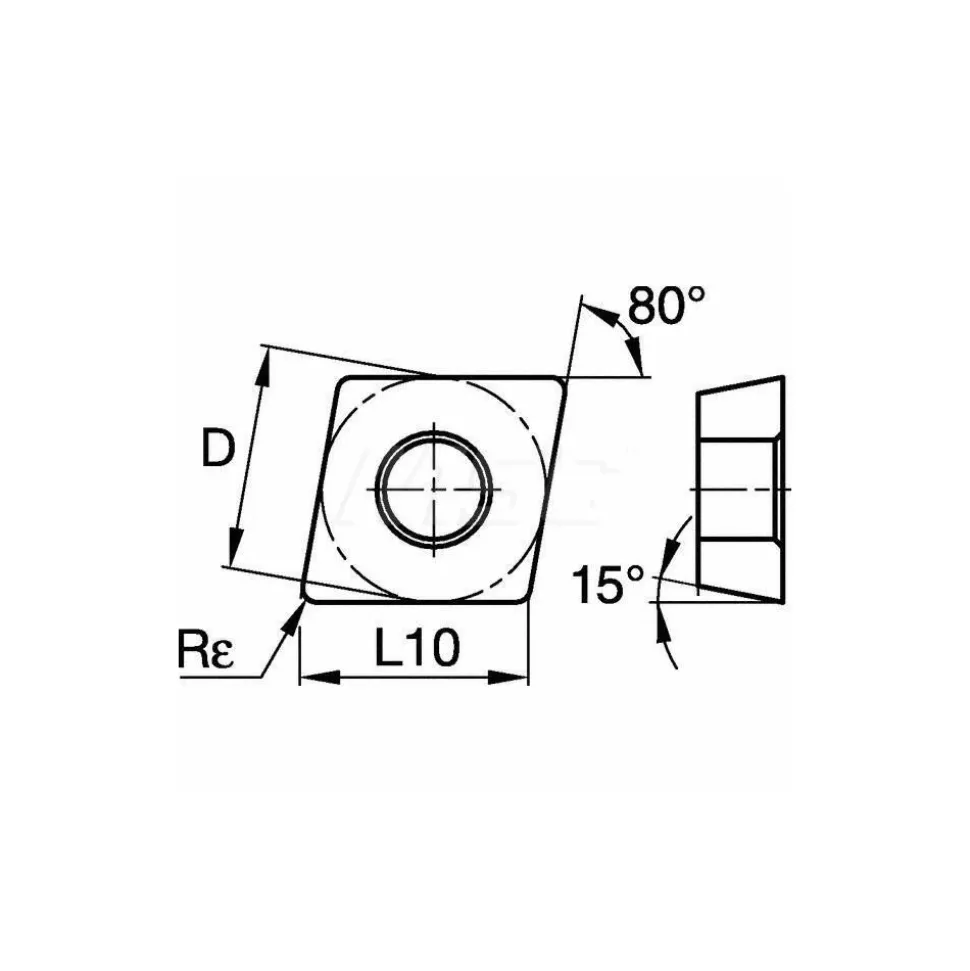

| Included Angle: 80.00 | Insert Shape: Diamond |
| Number Of Cutting Edges: 2 | Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code: P; S; M | Secondary Workpiece Material Code: P; S; N |
| Standards: ISO; ANSI | Rake Angle: 0.000 |
| Manufacturers Catalog Number: 1937509 | Length (Decimal Inch – 4 Decimals): 0.1587 |
| Width (Decimal Inch – 4 Decimals): 0.1563 | Coating/Finish: TiAlN |
| UNSPSC Code: 23242105 | Length (mm): 4.30 |
| Maximum Depth of Cut (mm): 1.25 | Maximum Depth of Cut (Decimal Inch): 0.0492 |
| Country of Origin: UNITED STATES | |
| Insert Style: CDHB | |
| Insert Size Code: 120605 | |
| Insert Material: Carbide | |
| Material Grade: C3; C4 | |
| Manufacturer Grade: KC5010 | |
| Inscribed Circle (Decimal Inch): 0.1563 | |
| Inscribed Circle (Inch): 5/32 | |
| Hole Diameter (Decimal Inch): 0.0840 | |
| Hole Diameter (mm): 2.13 | |
| Insert Holding Method: Screw | |
| Insert Hand: Neutral | |
| Corner Radius (Inch): 1/128 | |
| Corner Radius (Decimal Inch): 0.0079 | |
| Relief Angle: 15.000 | |
| Rake: Positive | |
| Chipbreaker: Flat Top | |
| Series: Screw-On | |
| Coating Process: PVD | |
| Included Angle: 80.00 | |
| Insert Shape: Diamond | |
| Number Of Cutting Edges: 2 | |
| Primary Workpiece Material: Stainless Steel; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; M | |
| Secondary Workpiece Material Code: P; S; N | |
| Standards: ISO; ANSI | |
| Rake Angle: 0.000 | |
| Manufacturers Catalog Number: 1937509 | |
| Length (Decimal Inch – 4 Decimals): 0.1587 | |
| Width (Decimal Inch – 4 Decimals): 0.1563 | |
| Coating/Finish: TiAlN | |
| UNSPSC Code: 23242105 | |
| Length (mm): 4.30 | |
| Maximum Depth of Cut (mm): 1.25 | |
| Maximum Depth of Cut (Decimal Inch): 0.0492 | |
| Country of Origin: UNITED STATES |
| MSC# | 00463893 |
| Mfr# | 1937509 |
| Big Book# | 756 |
