Sale!

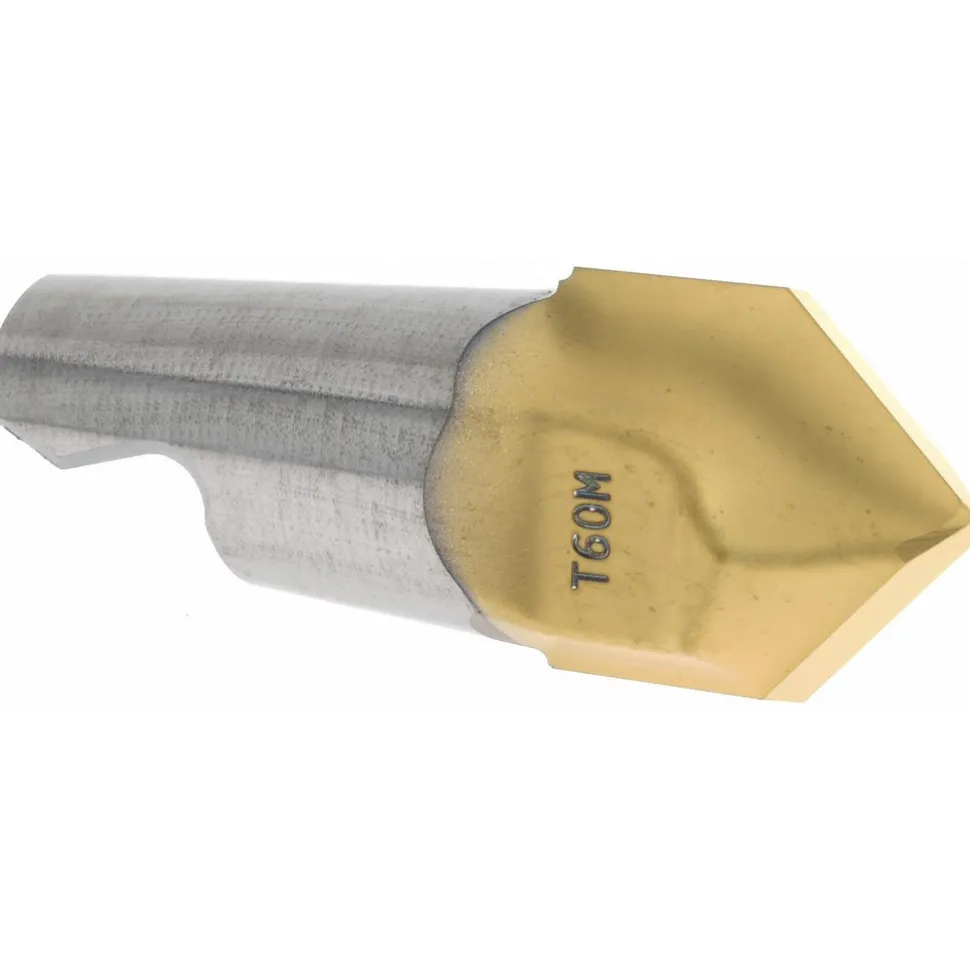

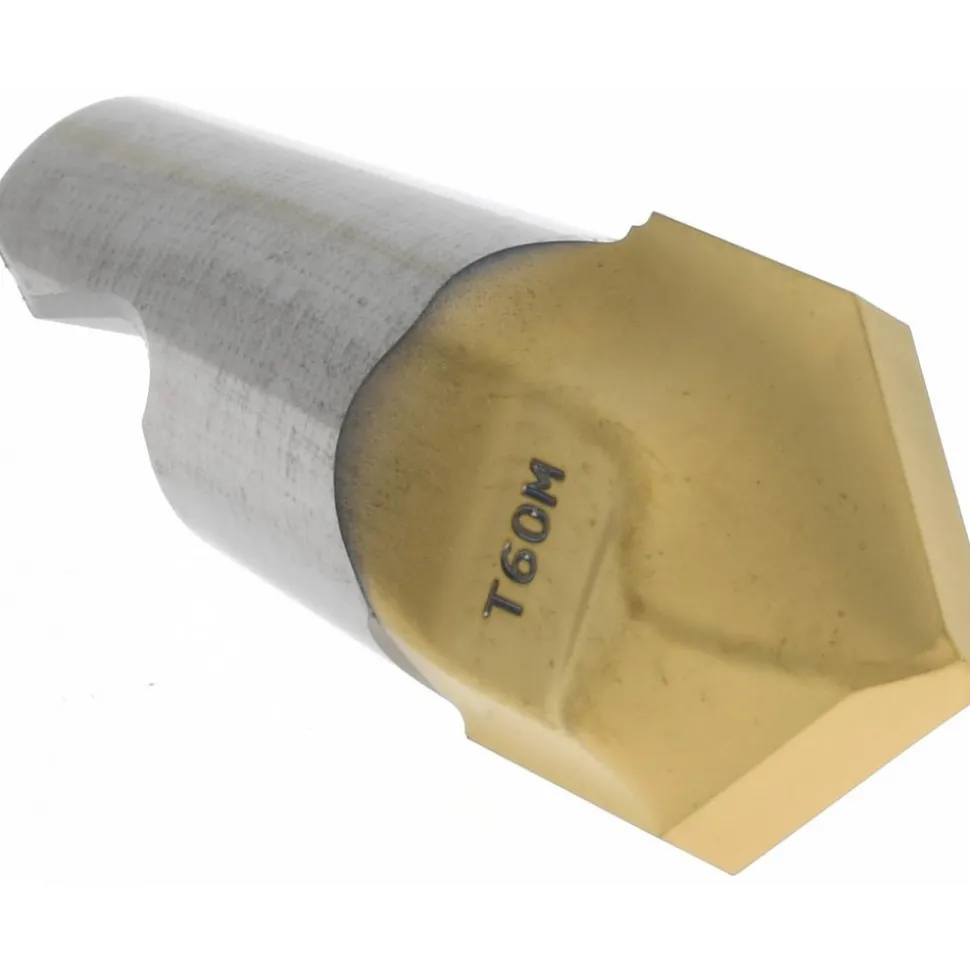

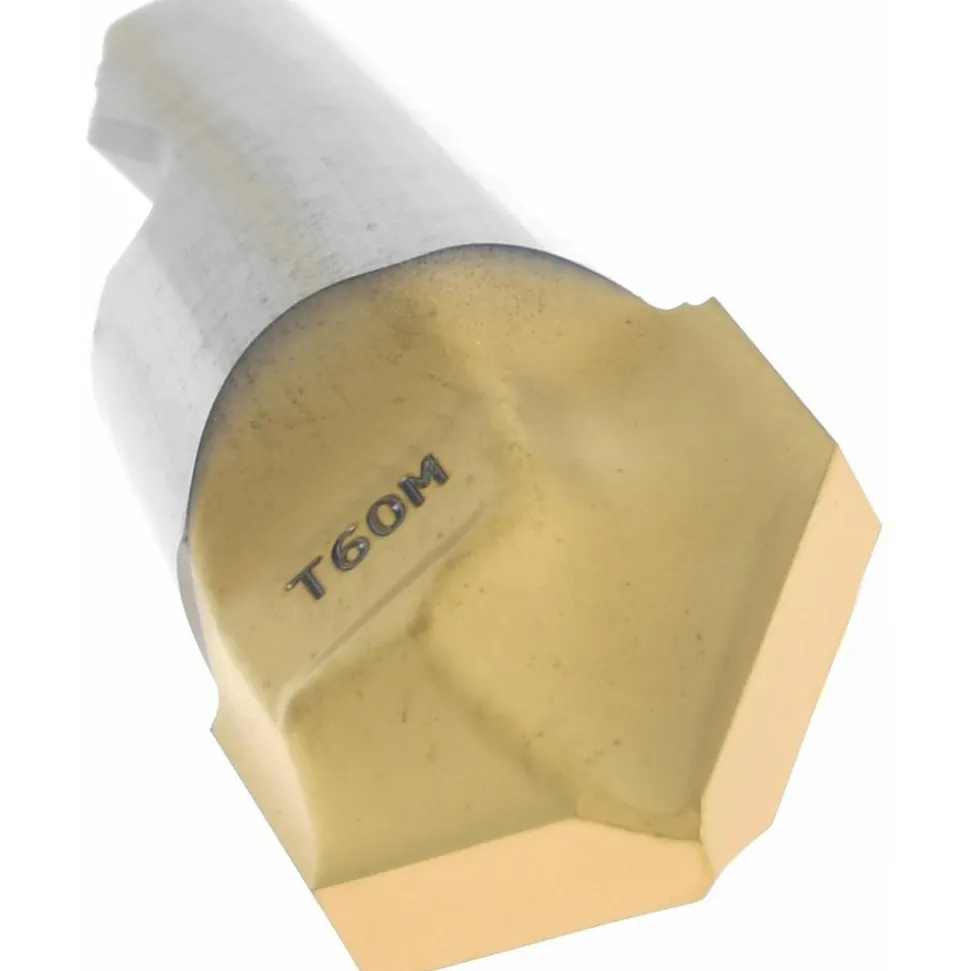

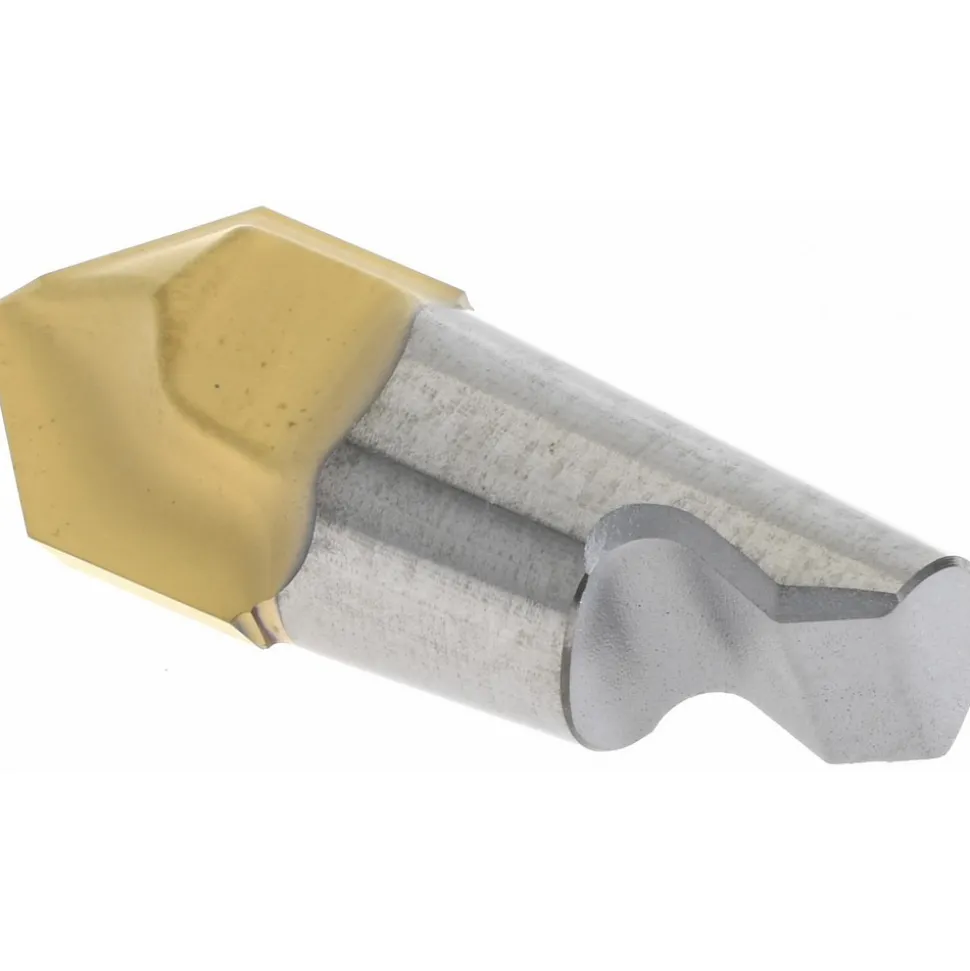

Chamfer Milling Tip Insert: MM100.394C90M03 T60M, Carbide
Original price was: 96,00 $.64,99 $Current price is: 64,99 $.
Specifications
| Milling Tip Type: Chamfer | Milling Tip Style: MM10 |
| Maximum Depth of Cut (Decimal Inch): 0.1850 | Maximum Depth of Cut (mm): 4.70 |
| Cutting Diameter (Decimal Inch): 0.3940 | Tool Material: Carbide |
| Manufacturer Grade: T60M | Insert Hand: Right Hand |
| Chipbreaker: M03 | Series: MM10 |
| Coating Process: PVD | Corner Radius (Decimal Inch): 0.2170 |
| Cutting Width (Decimal Inch): 0.3940 | Functional Length (mm): 11.80 |
| Functional Length (Decimal Inch): 0.4650 | Primary Workpiece Material: Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code: P; S; H; K; M; N | Standards: ANSI |
| Milling Tip Full Description: MM10-0.394-C90-M03 | Lead Angle: 45 |
| Manufacturers Catalog Number: 74001394 | Chamfer Angle: 45.000 |
| Overall Length (Decimal Inch): 0.4650 | Insert Size: 0.394-C90 |
| Coolant Through: No | Material Grade: C5 |
| Included Angle Degree: 90 | Coating/Finish: TiAlN |
| UNSPSC Code: 23291601 | Length Of Cut (Decimal Inch – 4 Decimals): 0.1850 |
| Number Of Flutes: 2 | Extension From Holder (Inch): 0.4650 |
| Country of Origin: Sweden | |
| Milling Tip Type: Chamfer | |
| Milling Tip Style: MM10 | |
| Maximum Depth of Cut (Decimal Inch): 0.1850 | |
| Maximum Depth of Cut (mm): 4.70 | |
| Cutting Diameter (Decimal Inch): 0.3940 | |
| Tool Material: Carbide | |
| Manufacturer Grade: T60M | |
| Insert Hand: Right Hand | |
| Chipbreaker: M03 | |
| Series: MM10 | |
| Coating Process: PVD | |
| Corner Radius (Decimal Inch): 0.2170 | |
| Cutting Width (Decimal Inch): 0.3940 | |
| Functional Length (mm): 11.80 | |
| Functional Length (Decimal Inch): 0.4650 | |
| Primary Workpiece Material: Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; H; K; M; N | |
| Standards: ANSI | |
| Milling Tip Full Description: MM10-0.394-C90-M03 | |
| Lead Angle: 45 | |
| Manufacturers Catalog Number: 74001394 | |
| Chamfer Angle: 45.000 | |
| Overall Length (Decimal Inch): 0.4650 | |
| Insert Size: 0.394-C90 | |
| Coolant Through: No | |
| Material Grade: C5 | |
| Included Angle Degree: 90 | |
| Coating/Finish: TiAlN | |
| UNSPSC Code: 23291601 | |
| Length Of Cut (Decimal Inch – 4 Decimals): 0.1850 | |
| Number Of Flutes: 2 | |
| Extension From Holder (Inch): 0.4650 | |
| Country of Origin: Sweden |
| MSC# | 56931728 |
| Mfr# | 74001394 |
| Big Book# | 679 |
