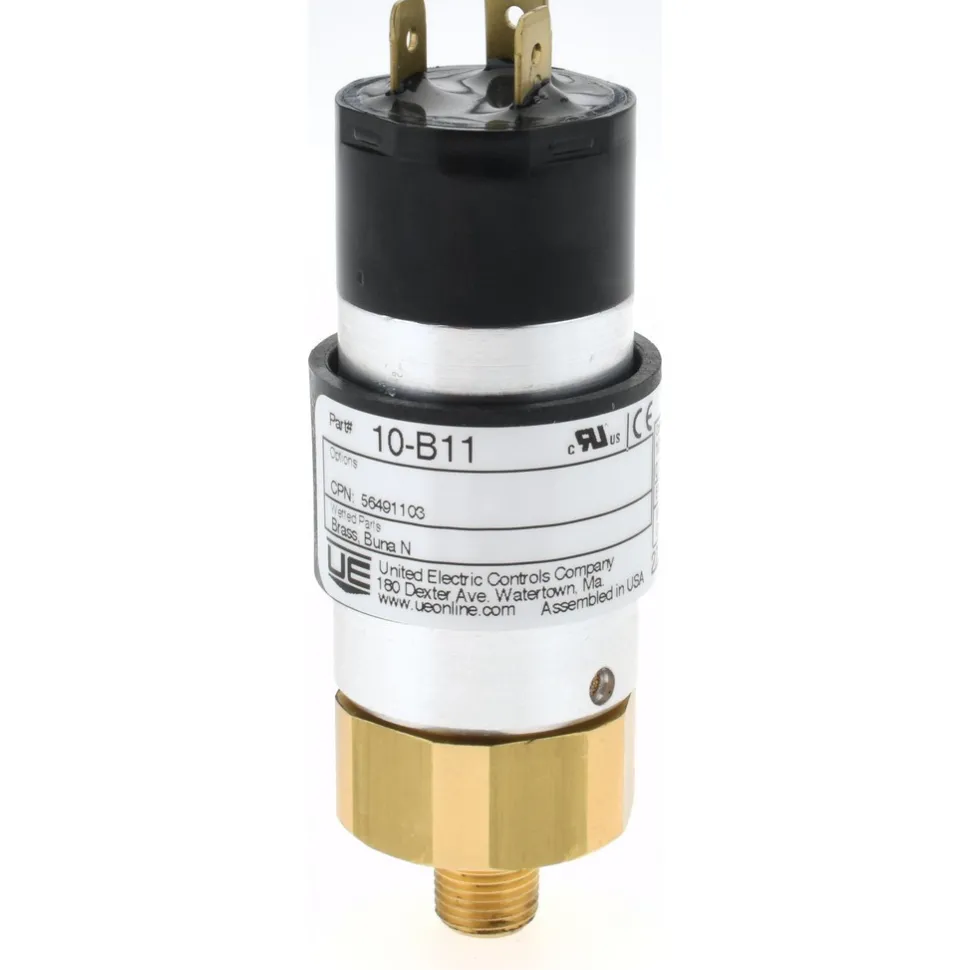

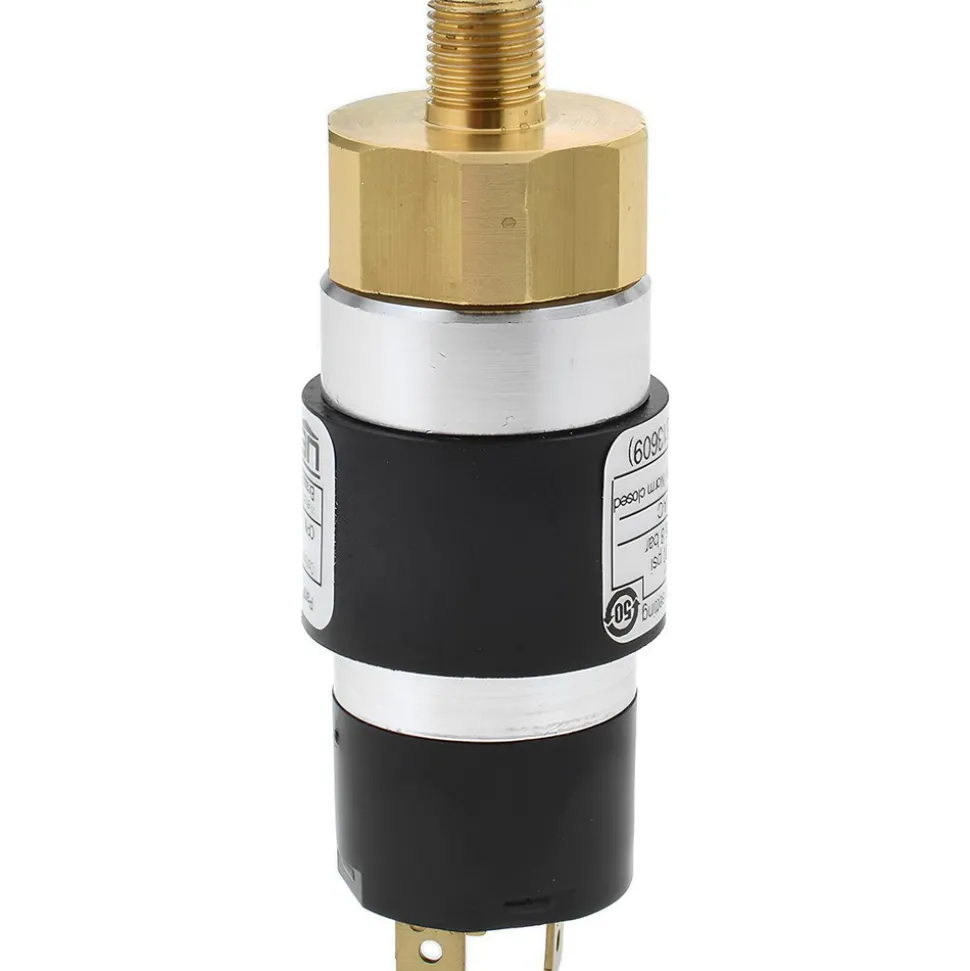

Compact, Cylindrical Pressure Switch: 10 psi to 150 psi, 1/8″ NPT Male Thread
138,99 $
Specifications
| Switch Type: Compact, Cylindrical Pressure | Maximum Pressure Setting: 1500 psi |
| Voltage: 6 V dc; 125 V ac; 12 V dc; 250 V ac; 125 V dc; 24 V dc; 30 V dc | Electrical Connection: 0.25 in Push-on Terminals |
| Amperage Rating: 1; 3; 2mA; 0.25; 0.5; 5A | Thread Type: NPT Male |
| Housing Material: Aluminum | Gender: Male |
| Setpoint Adjustability: Yes | Minimum Adjustable Pressure: 10.00 psi |
| Maximum Adjustable Pressure: 150.00 psi | Minimum Adjustable Pressure On Fall: 10.00 psi |
| Maximum Adjustable Pressure On Rise: 150.00 psi | Minimum Temperature (Deg F – 3 Decimals): -40.000 |
| Minimum Temperature (C – 2 Decimals): -40.00 | Maximum Temperature (C): 82.00 |
| Maximum Temperature (F) ( – 0 Decimals): 180.000 | Minimum Deadband: 2 psi |
| Maximum Deadband: 10.00 | Thread Size: 1/8 |
| Standards: Compliant to LVD; UL International DEMKO A/S (N.B.# 0539); Pressure Equipment Directive (PED) (2014/68/EU); UL 61010; EN 60079-0; NANIO CCVE CERTIFIED; ATEX Directive (2014/34/EU); EN 60079-11; CUL Recognized; Pressure:UL 508; EAC Customs Union Certificate; Low Voltage Directive (LVD) (2014/35/EU); EN 61058-1; Compliant to PED; EN 61010-1; CSA C22.2; UL Recognized; Certificate DEMKO II ATEX 1105261X; UL 508 | UNSPSC Code: 39121500 |
| Country of Origin: VARIOUS | |
| Switch Type: Compact, Cylindrical Pressure | |
| Maximum Pressure Setting: 1500 psi | |
| Voltage: 6 V dc; 125 V ac; 12 V dc; 250 V ac; 125 V dc; 24 V dc; 30 V dc | |
| Electrical Connection: 0.25 in Push-on Terminals | |
| Amperage Rating: 1; 3; 2mA; 0.25; 0.5; 5A | |
| Thread Type: NPT Male | |
| Housing Material: Aluminum | |
| Gender: Male | |
| Setpoint Adjustability: Yes | |
| Minimum Adjustable Pressure: 10.00 psi | |
| Maximum Adjustable Pressure: 150.00 psi | |
| Minimum Adjustable Pressure On Fall: 10.00 psi | |
| Maximum Adjustable Pressure On Rise: 150.00 psi | |
| Minimum Temperature (Deg F – 3 Decimals): -40.000 | |
| Minimum Temperature (C – 2 Decimals): -40.00 | |
| Maximum Temperature (C): 82.00 | |
| Maximum Temperature (F) ( – 0 Decimals): 180.000 | |
| Minimum Deadband: 2 psi | |
| Maximum Deadband: 10.00 | |
| Thread Size: 1/8 | |
| Standards: Compliant to LVD; UL International DEMKO A/S (N.B.# 0539); Pressure Equipment Directive (PED) (2014/68/EU); UL 61010; EN 60079-0; NANIO CCVE CERTIFIED; ATEX Directive (2014/34/EU); EN 60079-11; CUL Recognized; Pressure:UL 508; EAC Customs Union Certificate; Low Voltage Directive (LVD) (2014/35/EU); EN 61058-1; Compliant to PED; EN 61010-1; CSA C22.2; UL Recognized; Certificate DEMKO II ATEX 1105261X; UL 508 | |
| UNSPSC Code: 39121500 | |
| Country of Origin: VARIOUS |
| MSC# | 56491103 |
| Mfr# | 10-B11 |
| Big Book# | 4440 |
